Repair Procedures

REMOVAL

1. Drain the power steering fluid by disconnecting the return hose(A).




2. Remove the pressure pipe(B) from the power steering oil pump(A).

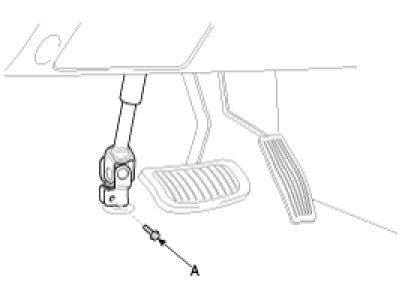

3. Remove the universal joint assembly mounting bolt(A).




4. Remove the both sides of the front tires, while lifting the vehicle.
5. Remove the lower arm mounting bolts(A) and the tie rod end(B) from the knuckle.

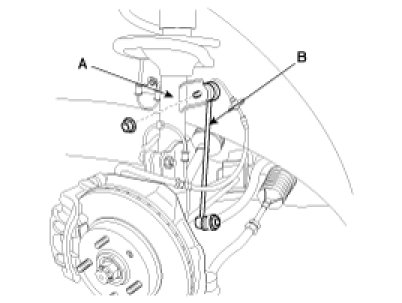

6. Remove the stabilizer link(B) from the strut assembly(A).




7. Repeat the procedure of 4, 5 on the other side.
8. Remove the engine mounting bolts(A,B).

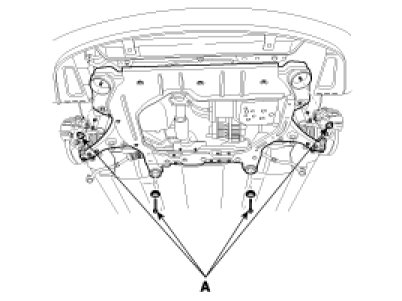

9. Remove the front subframe by removing the four mounting bolts and nuts (A).

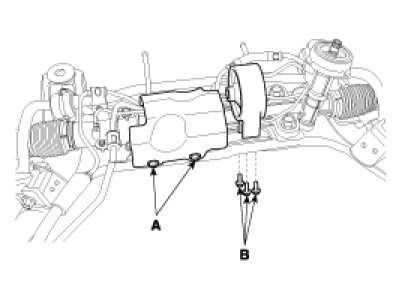

10. Remove the heat cover bolts(A) and the engine mounting bracket bolts(B).

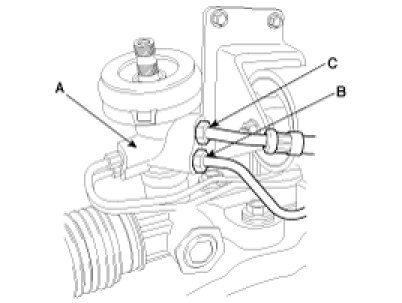

11. Remove the both pressure(B) and return(C) tubes from the valve body housing(A).

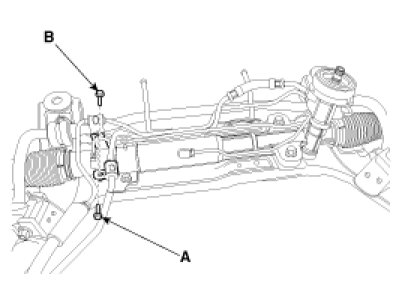

12. Remove the both pressure and return tubes brackets bolts(A,B).

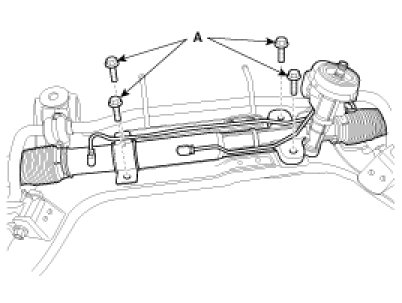

13. Remove the power steering gear box(B) mounting bolts(A) from the front subframe.





INSTALLATION

NOTE:
Be sure to connect between a tube and a hose as shown in the illustration.




1. Installation is reverse of removal.

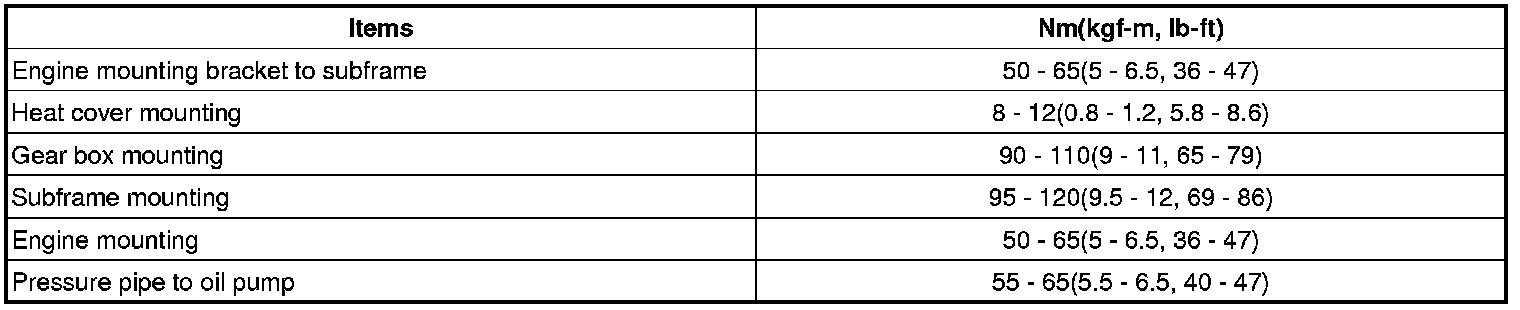

Tightening torque :





2. After installation, bleed the air in the power steering system.
3. Adjust the wheel alignment
