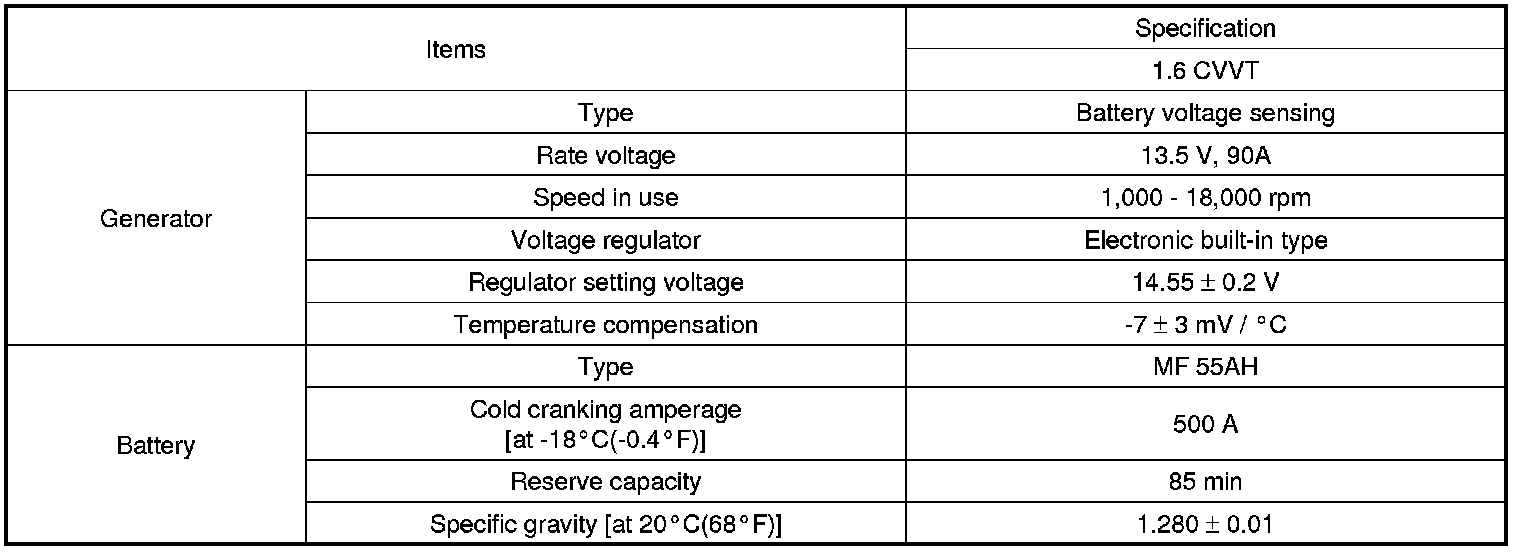

System Specifications

GENERAL

SPECIFICATION

CHARGING SYSTEM






CAUTION:
- COLD CRANKING AMPERAGE is the amperage a battery can deliver for 30 seconds and maintain a terminal voltage of 7.2 V or greater at a specified temperature.
- RESERVE CAPACITY RATING is amount of time a battery can deliver 25 A and maintain a minimum terminal voltage of 10.5 V at 26.7 °C (80.1 °F).
