Home >> Kia >> 2009 >> Rio L4-1.6L >> Repair and Diagnosis >> Service Precautions

Repair and Diagnosis: Service Precautions

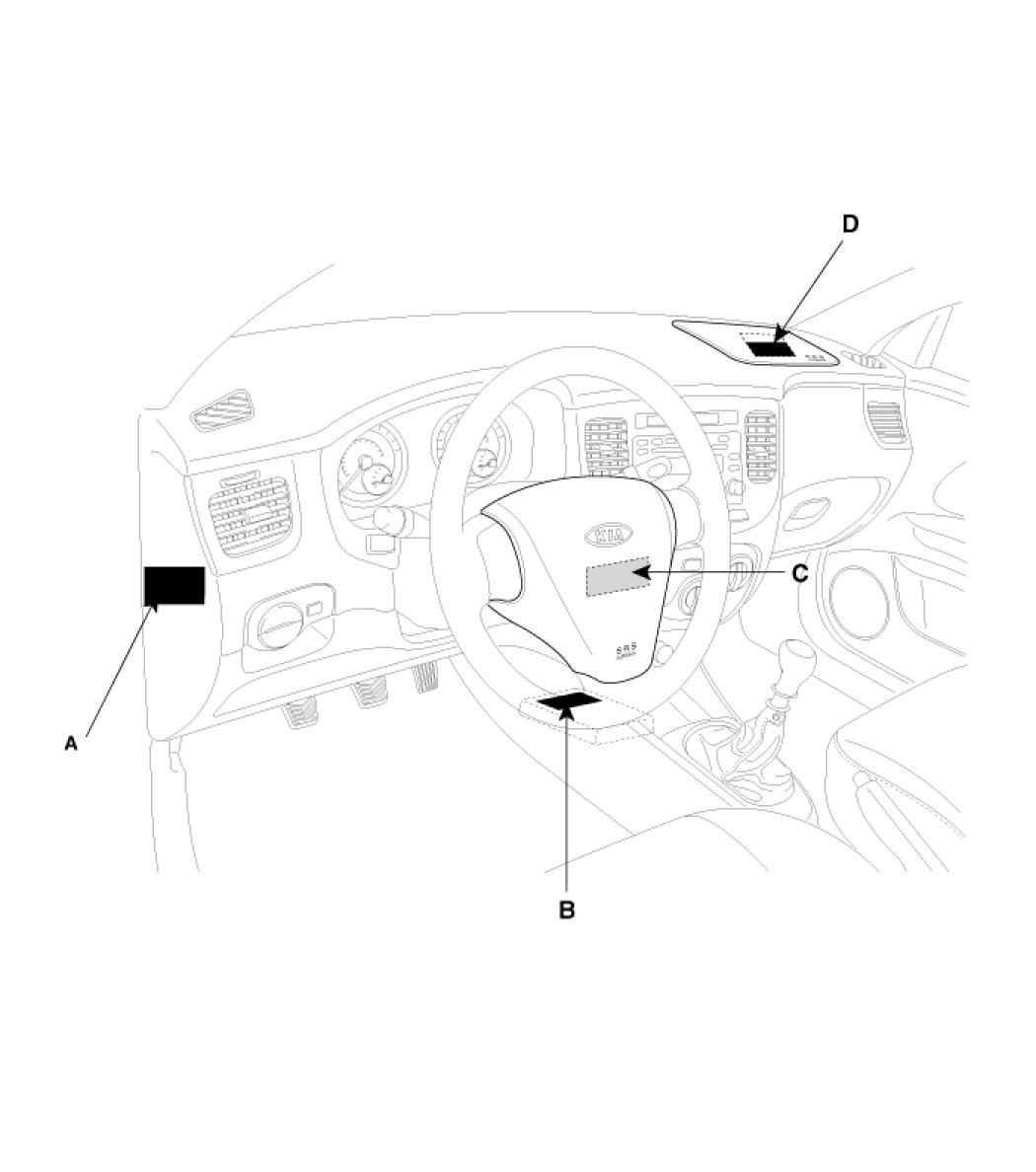

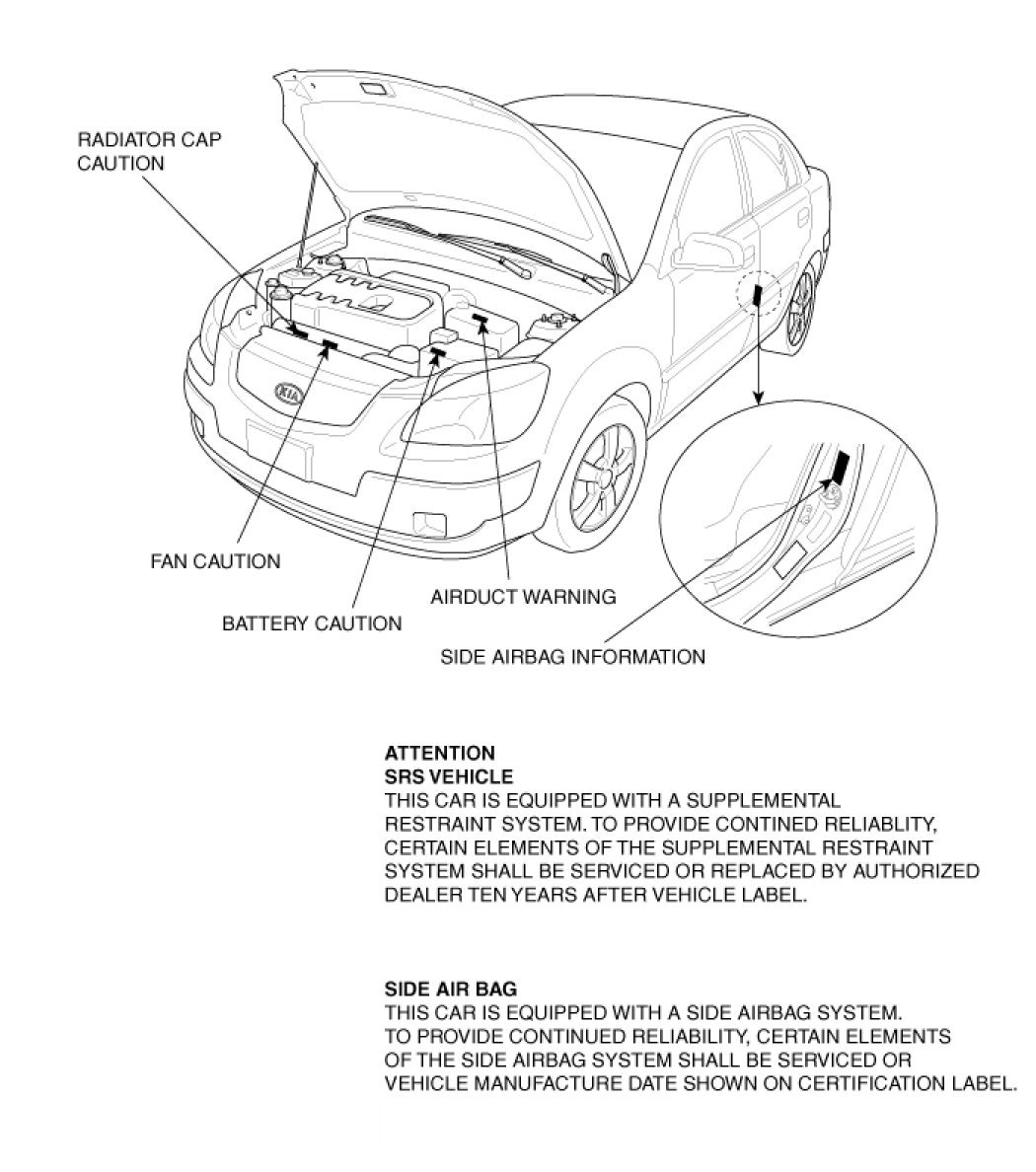

WARNING / CAUTION LABEL LOCATIONS

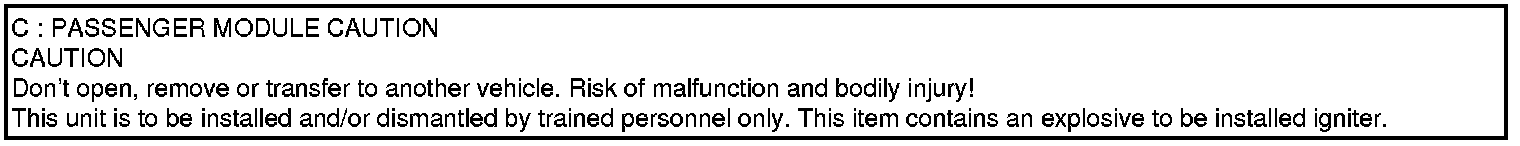

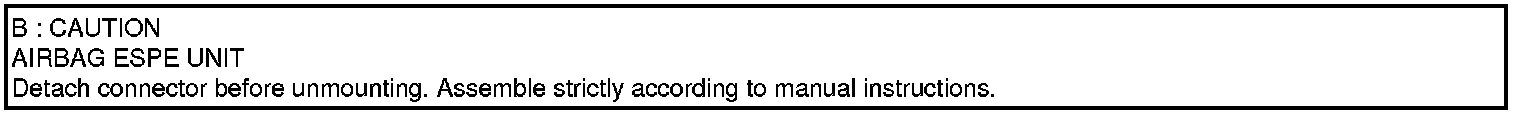

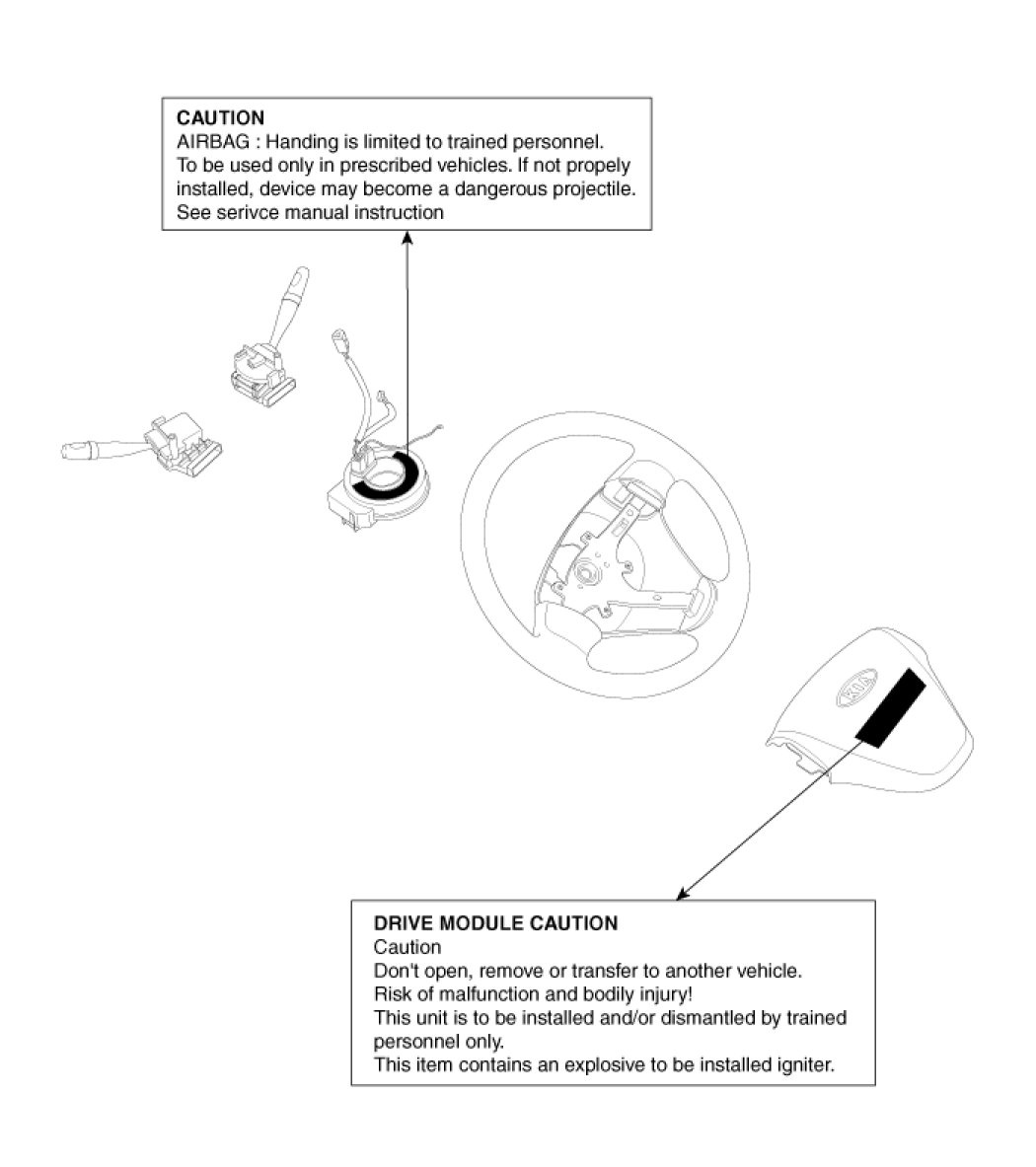

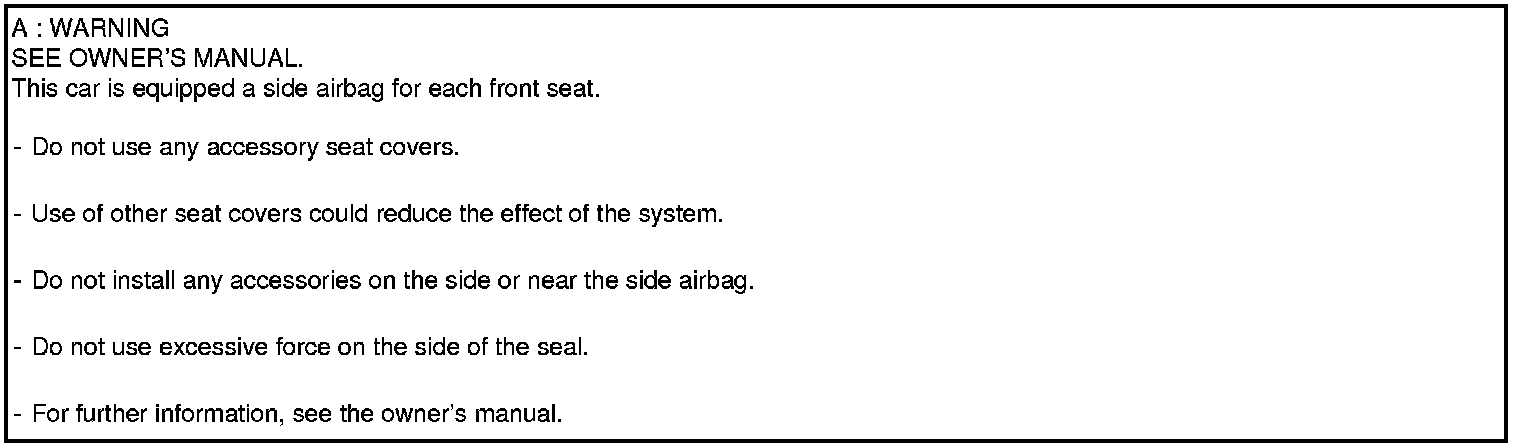

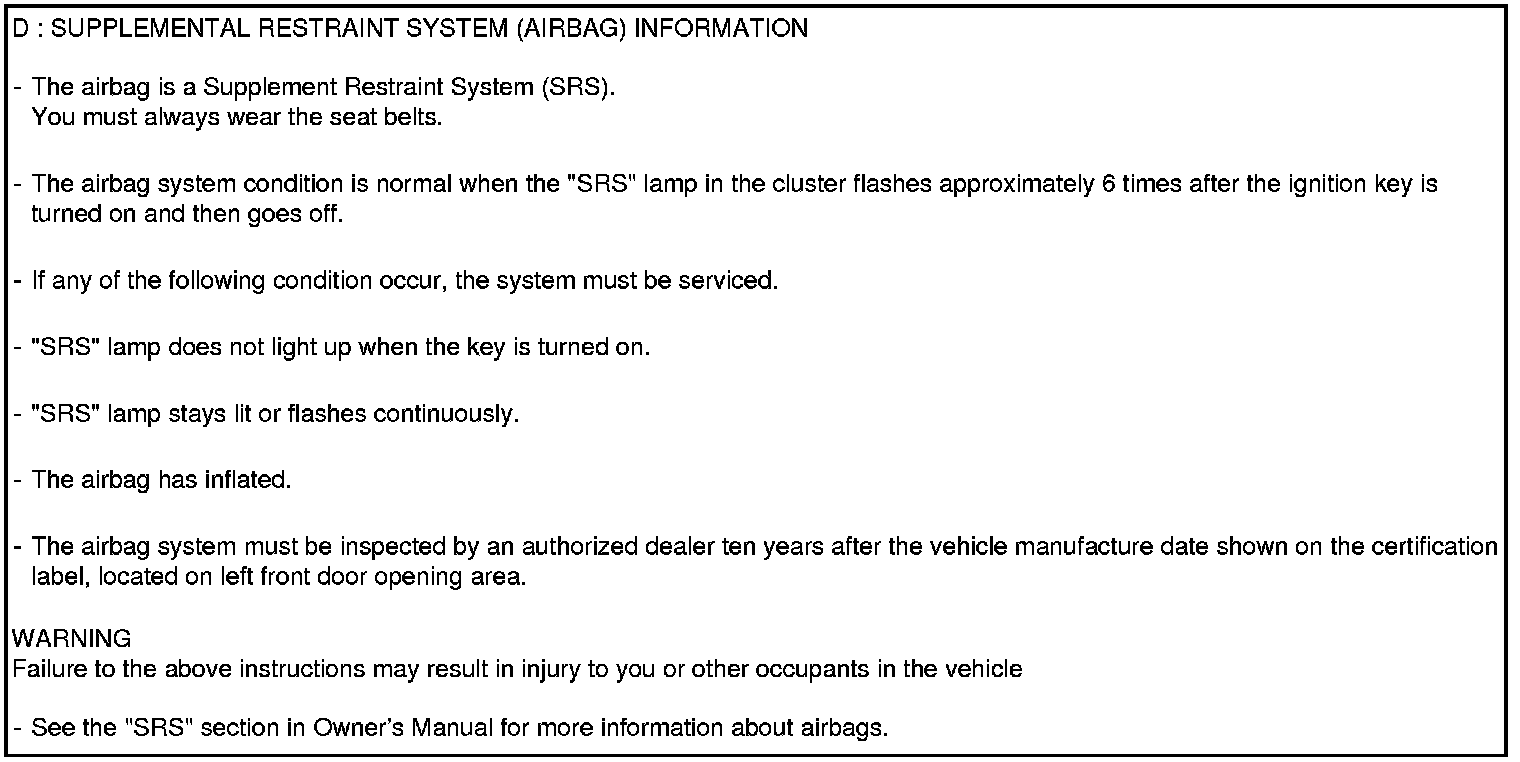

AIR BAG WARNING / CAUTION LABEL





AIR BAG WARNING / CAUTION LABEL (CONT'D)





AIR BAG WARNING / CAUTION LABEL (CONT'D)





















BATTERY CAUTION LABEL DESCRIPTION
