Manifold Pressure/Vacuum Sensor: Specifications





SPECIFICATIONS

INPUT SENSORS
MANIFOLD ABSOLUTE PRESSURE SENSOR (MAPS)
- Type : Piezo-resistive pressure sensor type

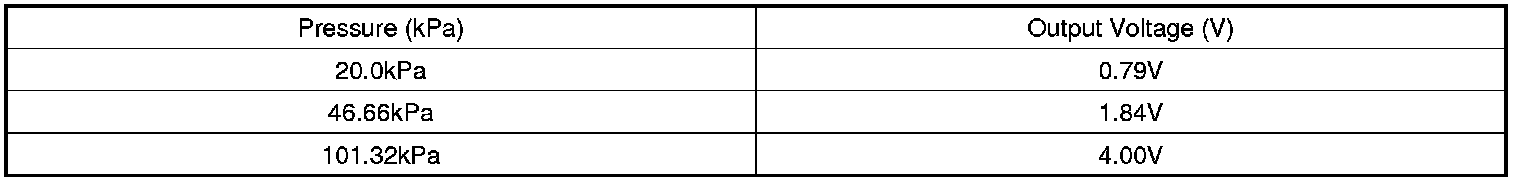

- Specification
