Fuel Tank Pressure Sensor: Specifications

SPECIFICATIONS

INPUT SENSORS
FUEL TANK PRESSURE SENSOR (FTPS)
- Type : Piezo-Resistivity type

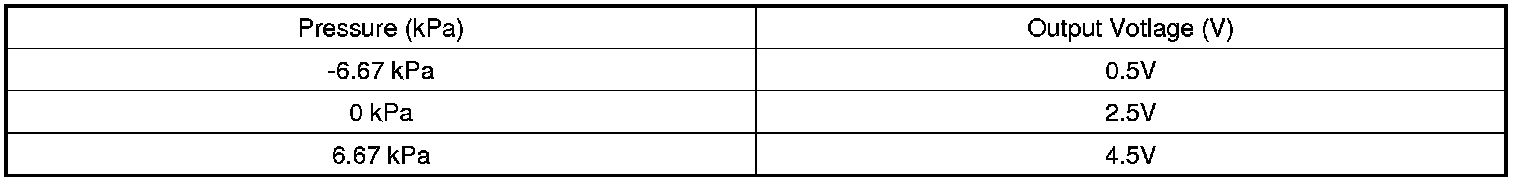

- Specification
