ECM





1. ECM HARNESS CONNECTOR (M/T)

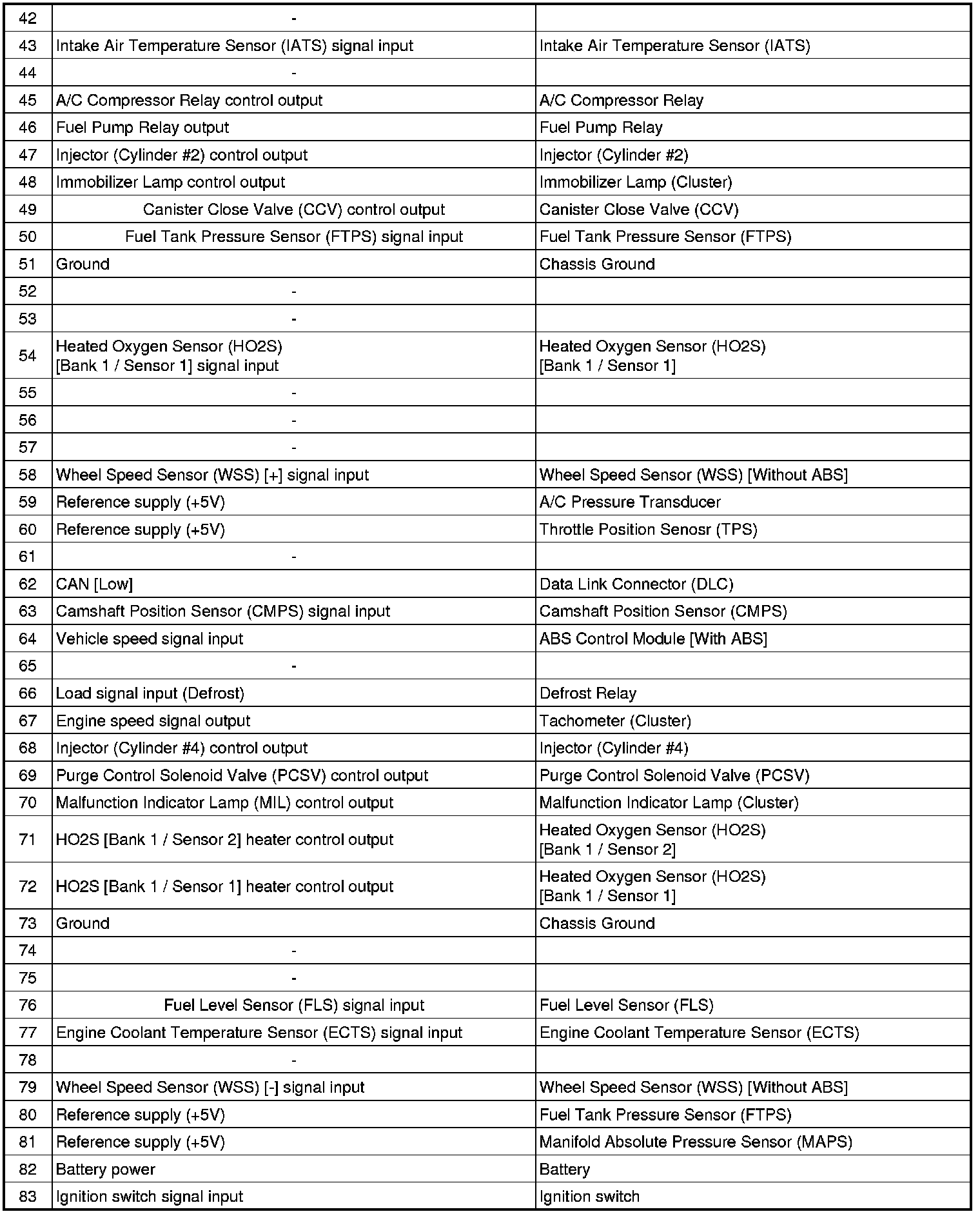

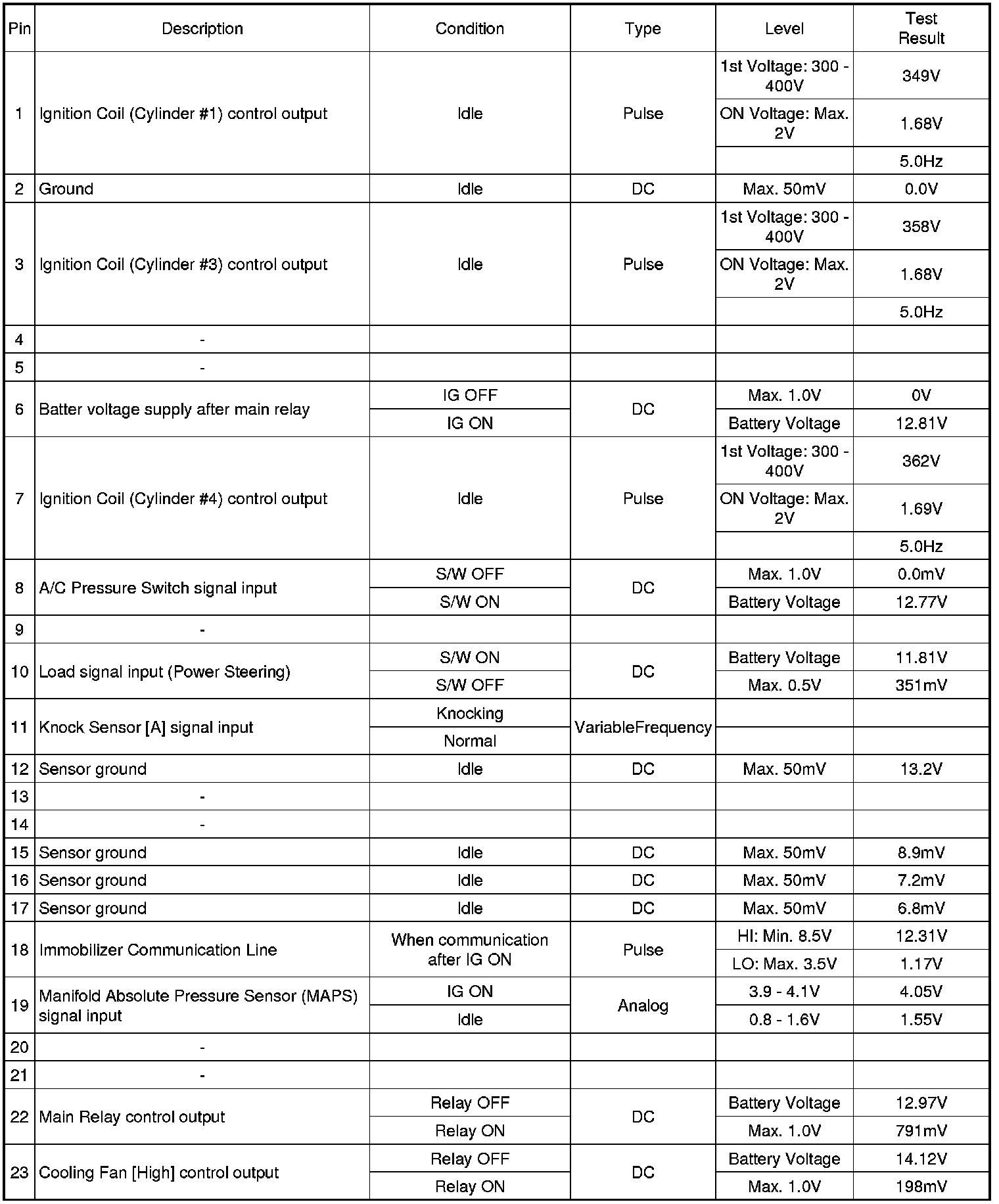

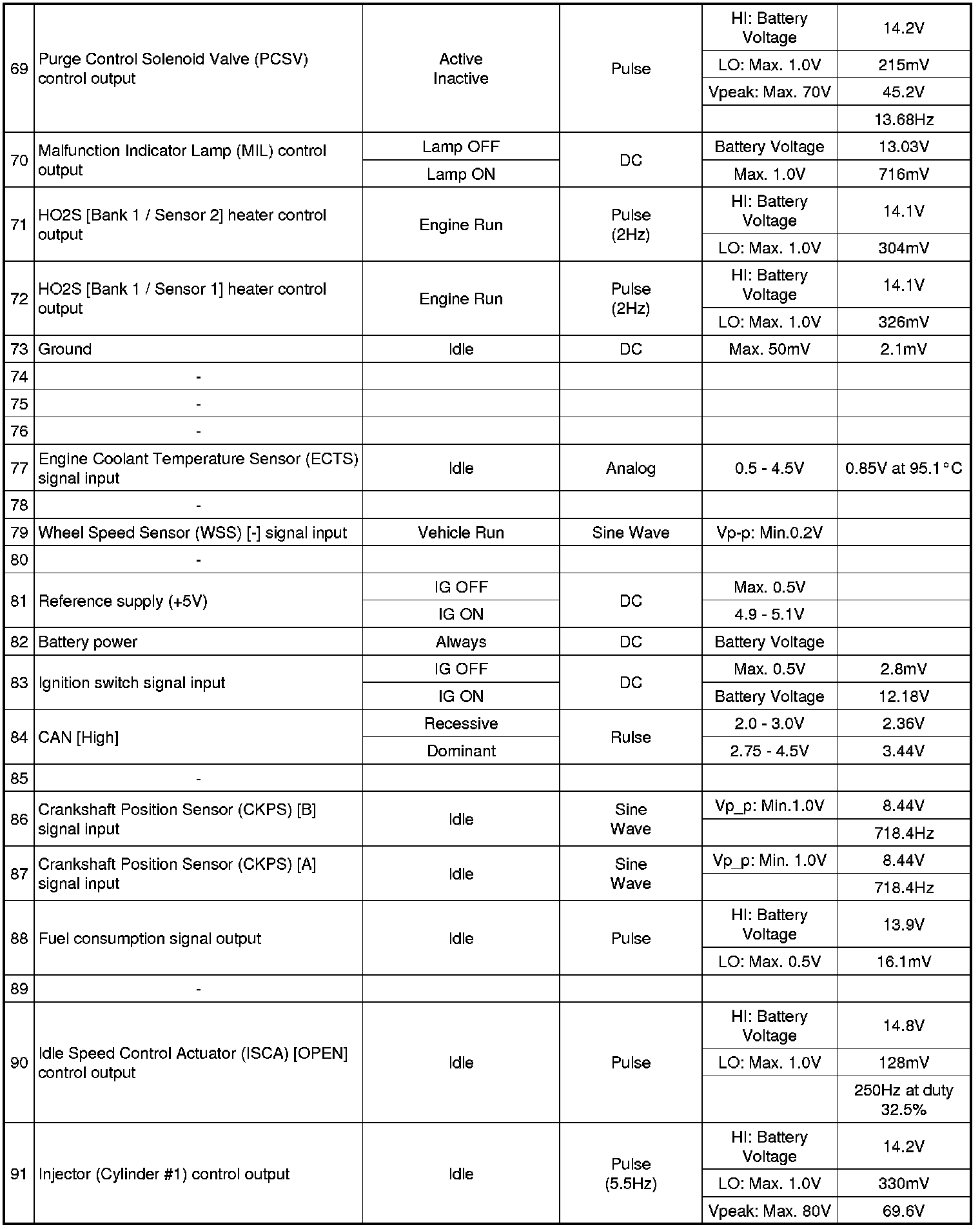

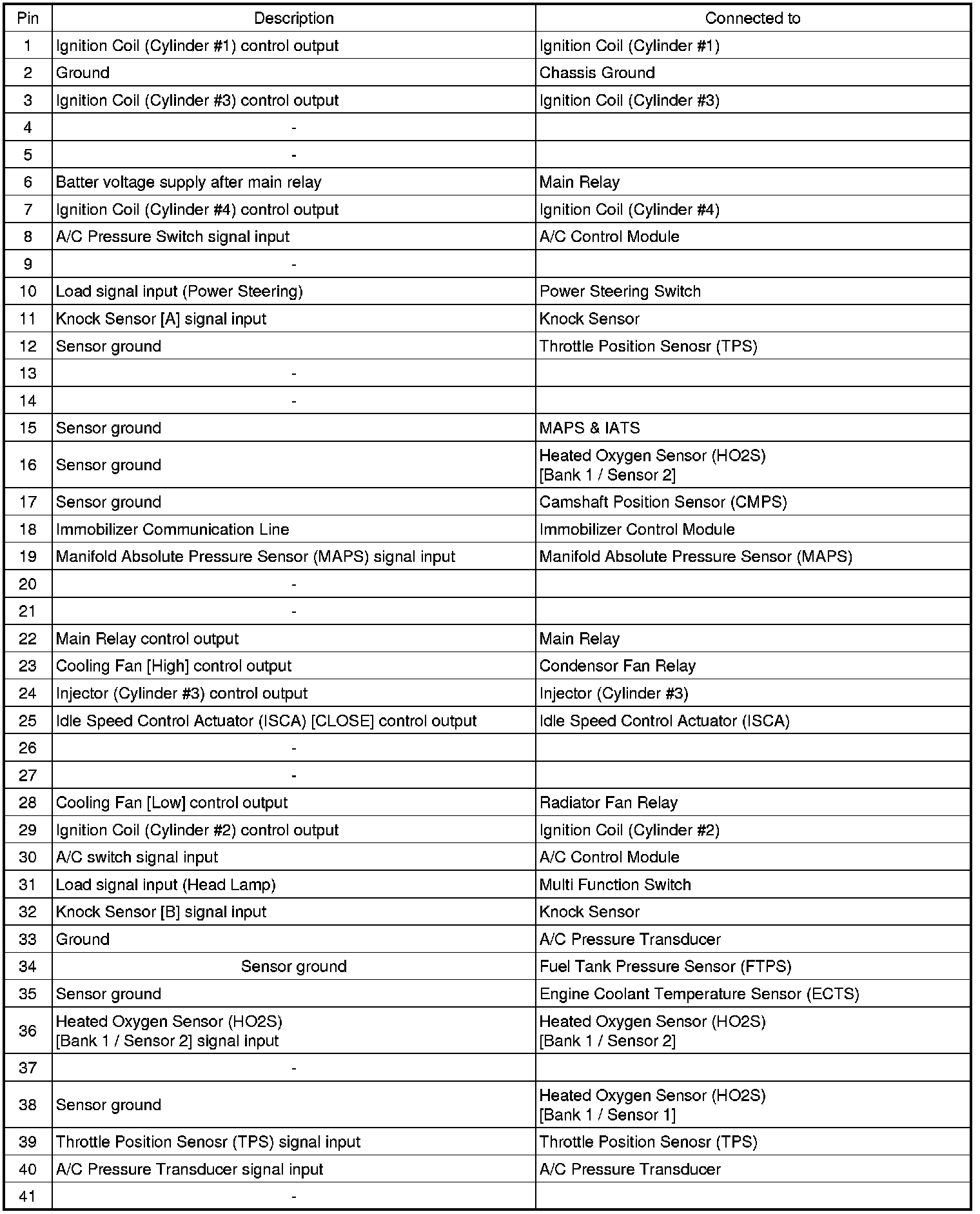

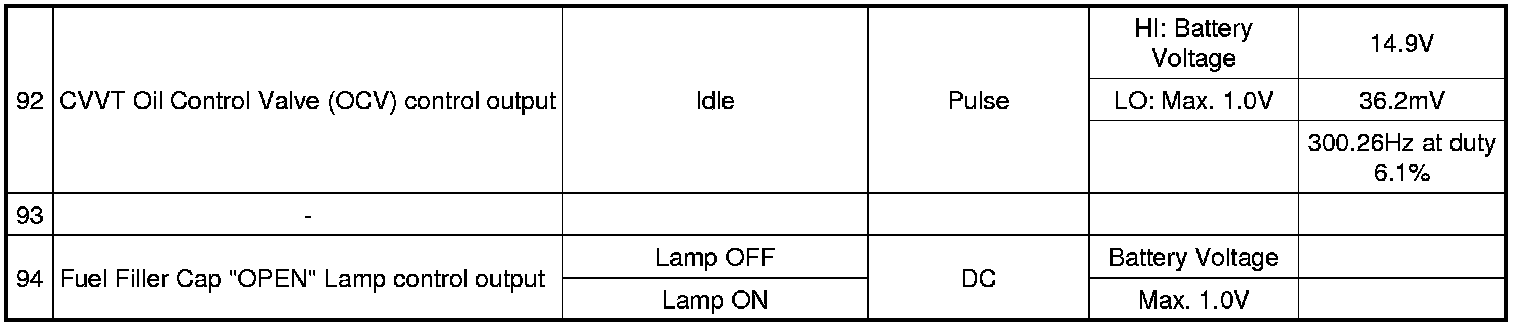

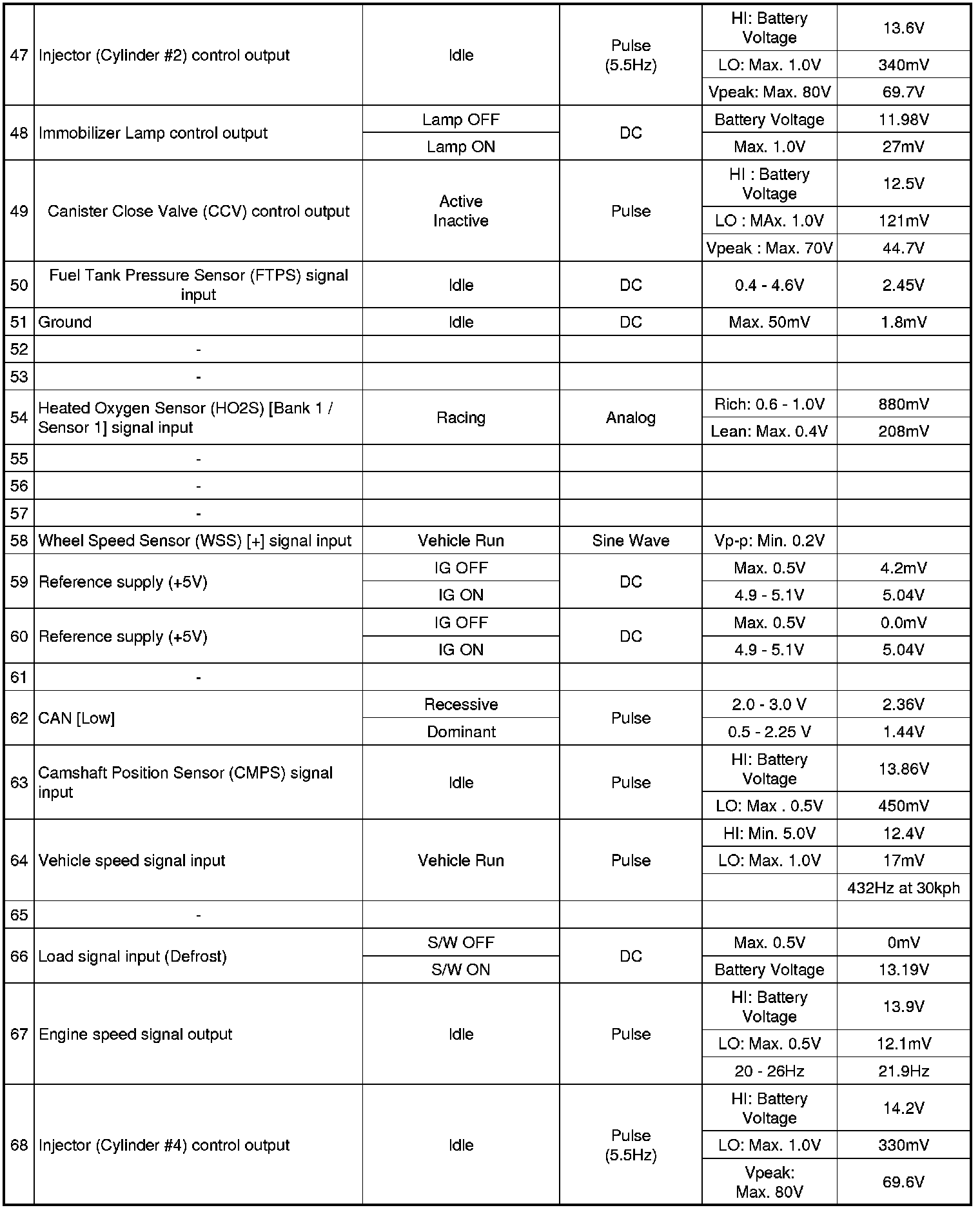

2. ECM TERMINAL FUNCTION (M/T)

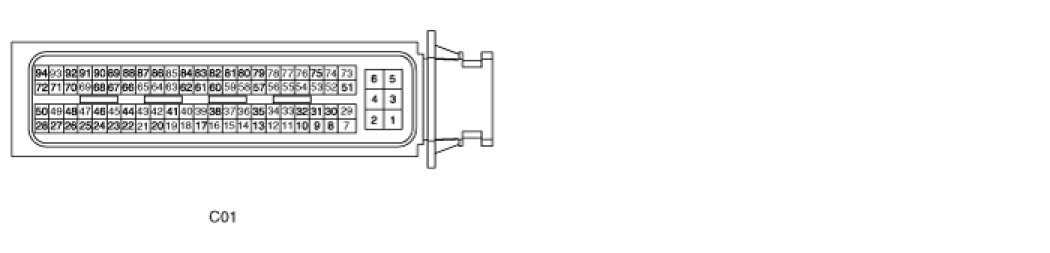

CONNECTOR [C01]

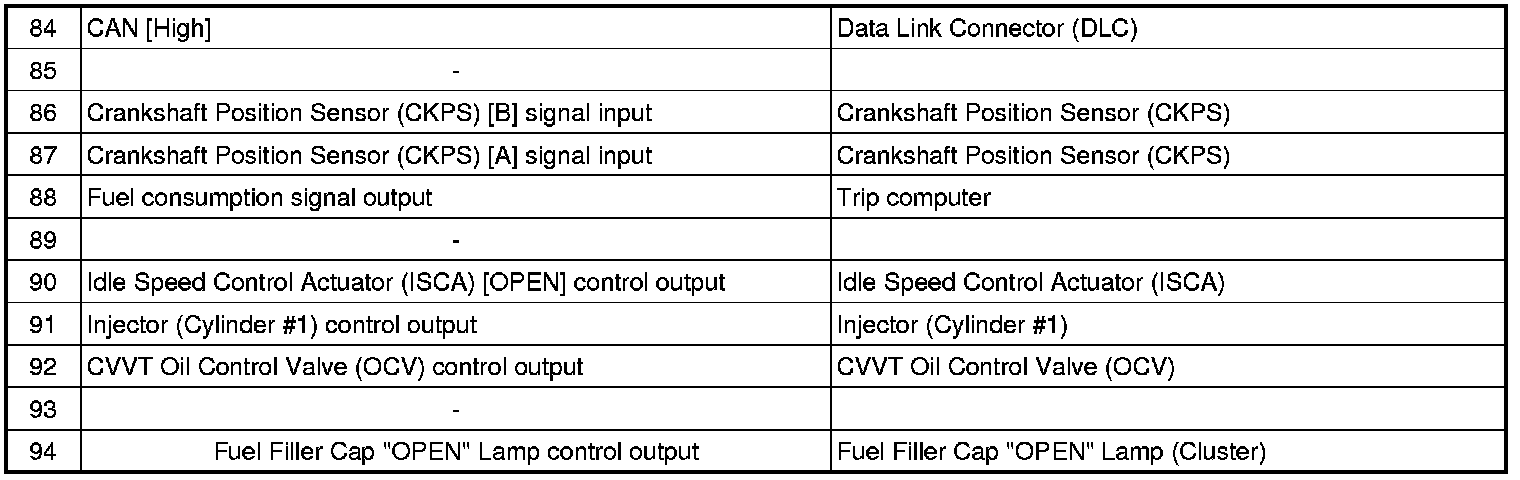

3. ECM HARNESS CONNECTOR (M/T)
CONNECTOR [C01]
