Repair Procedures

REPLACEMENT

1. Discharge refrigerant from refrigeration system .
2. Replace faulty tube or hose.

CAUTION:
Cap the open fittings immediately to keep moisture or dirt out of the system.

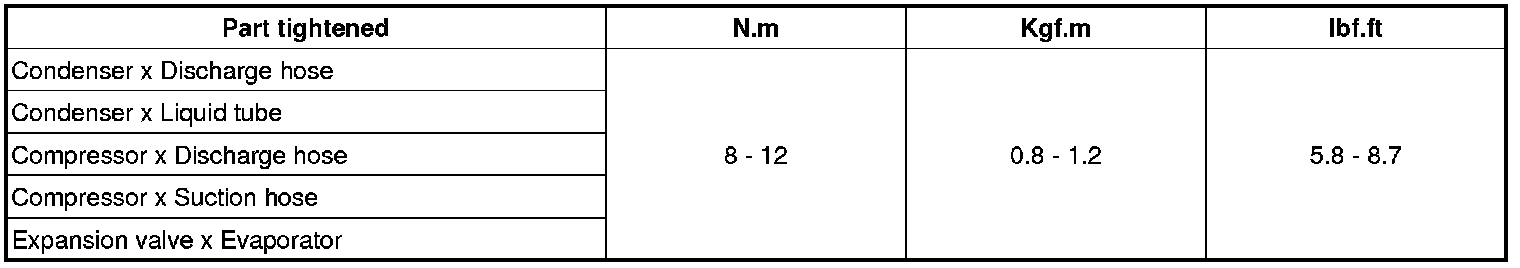

3. Tighten joint of bolt or nut to specified torque.

CAUTION:
Connections should not be torqued tighter than the specified torque.





4. Evacuate air in refrigeration system and charge system with refrigerant .

Specified amount : 500 ± 25g


5. Inspect for leakage of refrigerant.
Using a gas leak detector, check for leakage of refrigerant .
6. Inspect A/C operation.
