Seat Cushion: Service and Repair

Replacement

SEAT CUSION COVER REPLACEMENT
1. Remove the front seat assemble.
2. Disconnect the connector(A) then remove the track assemble(B) from cusion frame(C).

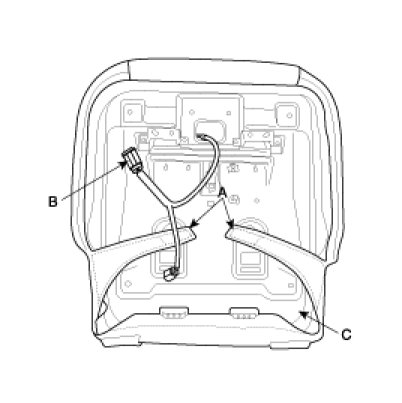

3. Remove the scuff band(A).
4. Remove the connector(B) then disconnect the protector from cusion frame(C).

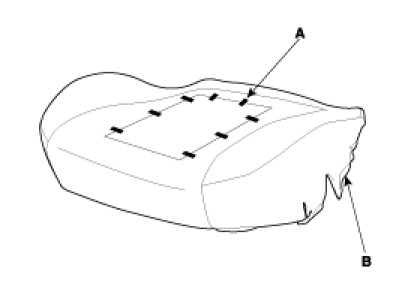

5. After removing the hogring clips(A) on the front of seat cusion and remove the seat cusion(B).




6. Installation is the reverse of removal.

NOTE:

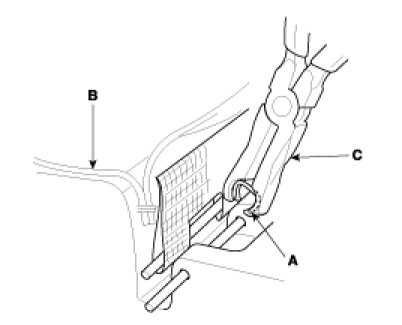

- To prevent wrinkles, make sure the material is stretched evenly over the over (B) before securing the hogring clips (A).
- Replace the hogring clips with new ones using special tool (C).
