Trunk / Liftgate Weatherstrip: Service and Repair










TRUNK LID WEATHERSTRIP REPLACEMENT

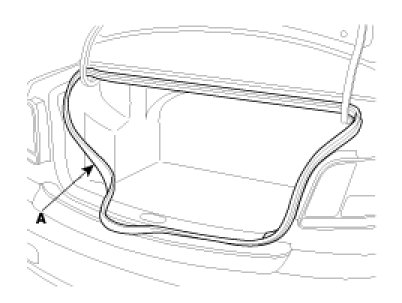

1. Remove the trunk lid weatherstrip(A).




2. Installation is the reverse of removal.
