General Information

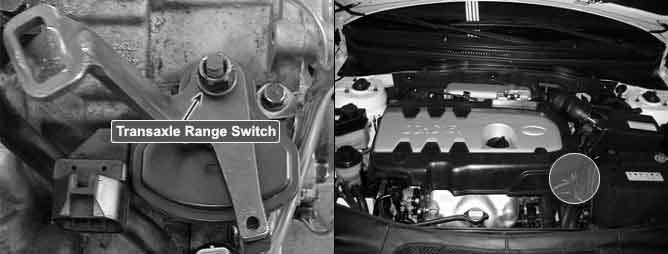

Component Location





General Description

The Transaxle Range Switch sends the shift lever position information to the TCM using a 12V (battery voltage) signal. When the shift lever is in the D (Drive) position the output signal of Transaxle Range Switch is 12V and in all other positions the voltage is 0V. The TCM judges the shift lever position by reading all signals, for the Transaxle Range Switch, simultaneously.

DTC Description

The PCM/TCM sets this code when the Transaxle Range Switch has no output signal for an extended period of time.

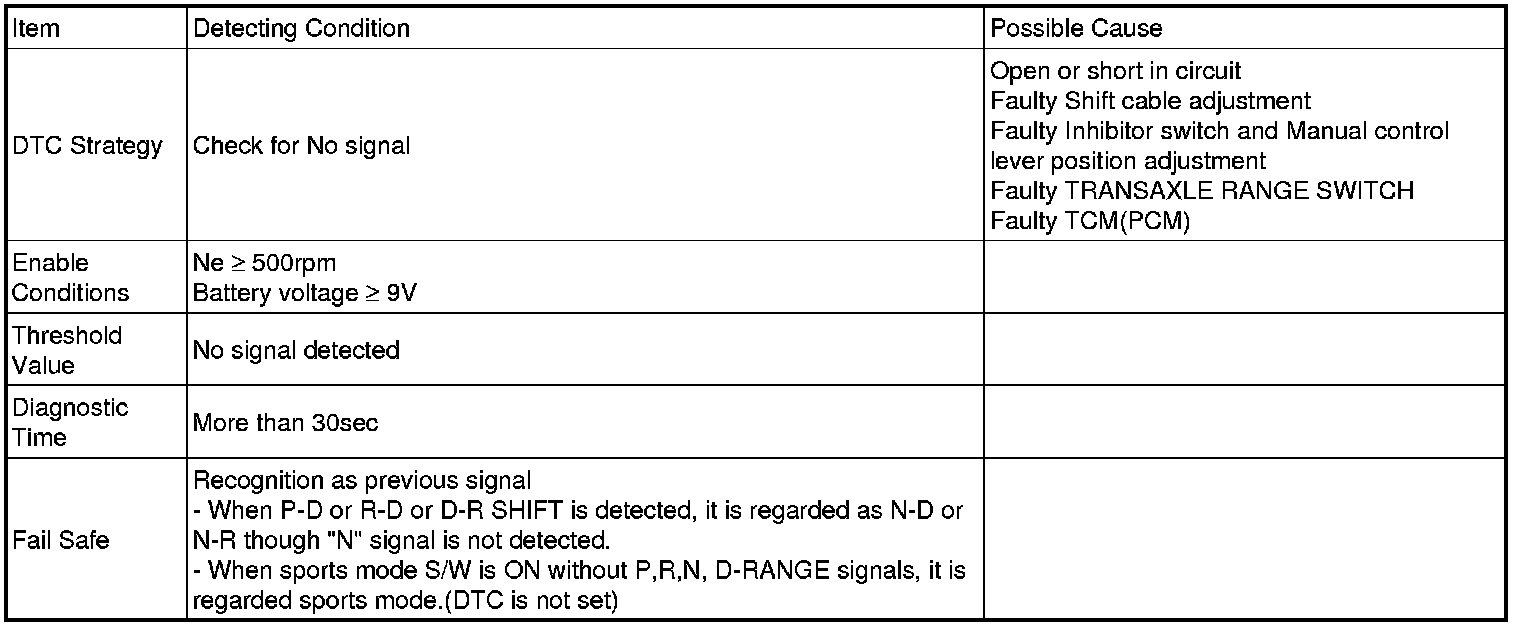

DTC Detecting Condition





Schematic Diagram

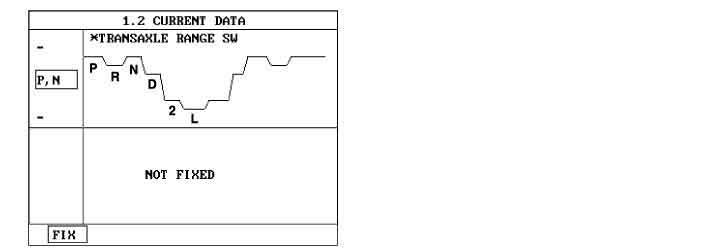

Signal Waveform
