General Information

Component Location





General Description

The 5V reference line is monitored for malfunctions that could result in improper sensor operation.

DTC Description

When PCM detects that the power for sensors (5V) is below 4.24V during 3 sec or more, PCM sets DTC P0642.

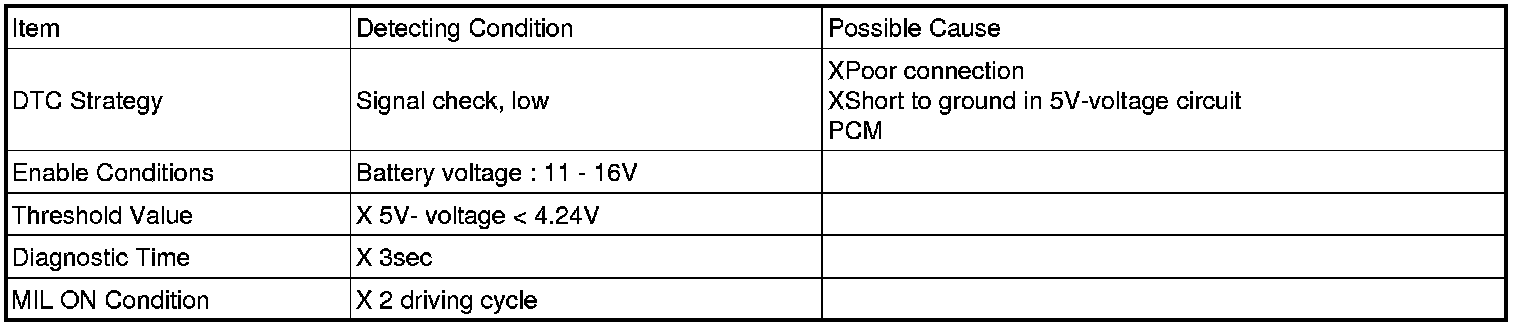

DTC Detecting Condition
