Shifter A/T: Testing and Inspection

INSPECTION

1. Adjusting method for T/M control cable
(1) Set room side lever and T/M side lever to "N" position.
(2) Connect room side lever and shift cable.

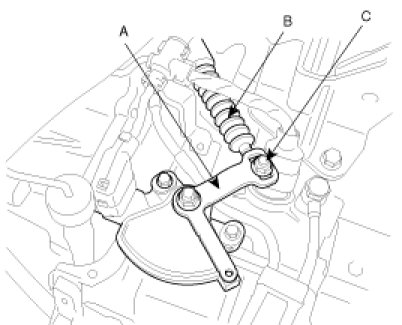

(3) Connect T/M side lever to cable in a following orders.
A. Push cable lightly in direction of arrow shown to eliminate FREE PLAY of cable.
B. Tighten adjusting nut(C).




(4) After adjusting according to (2)-(4), verify that A/T shift lever can be properly moved to each gear position.
