Automatic Transmission/Transaxle: Description and Operation

DESCRIPTION

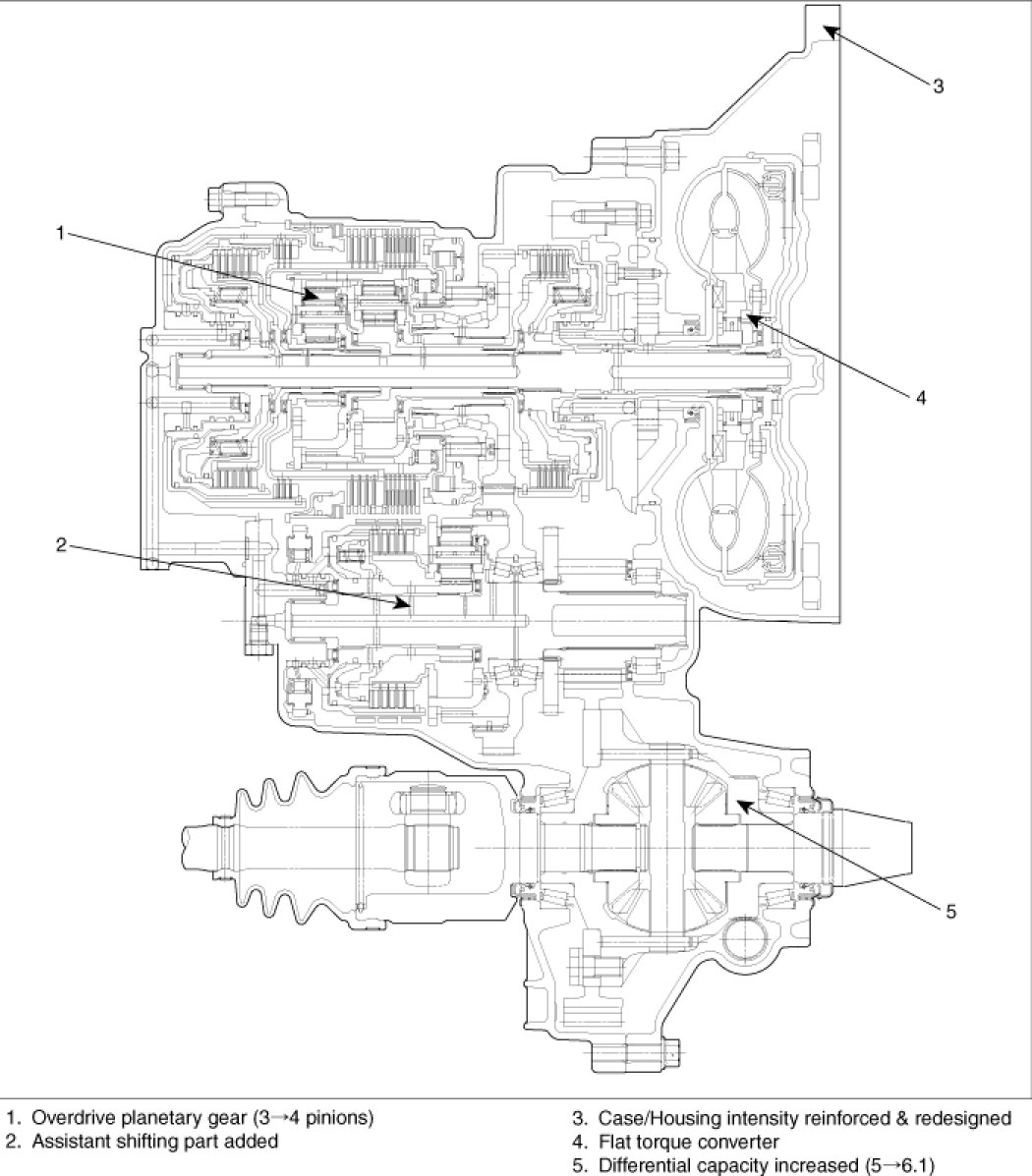

1. Structure & Technical highlights

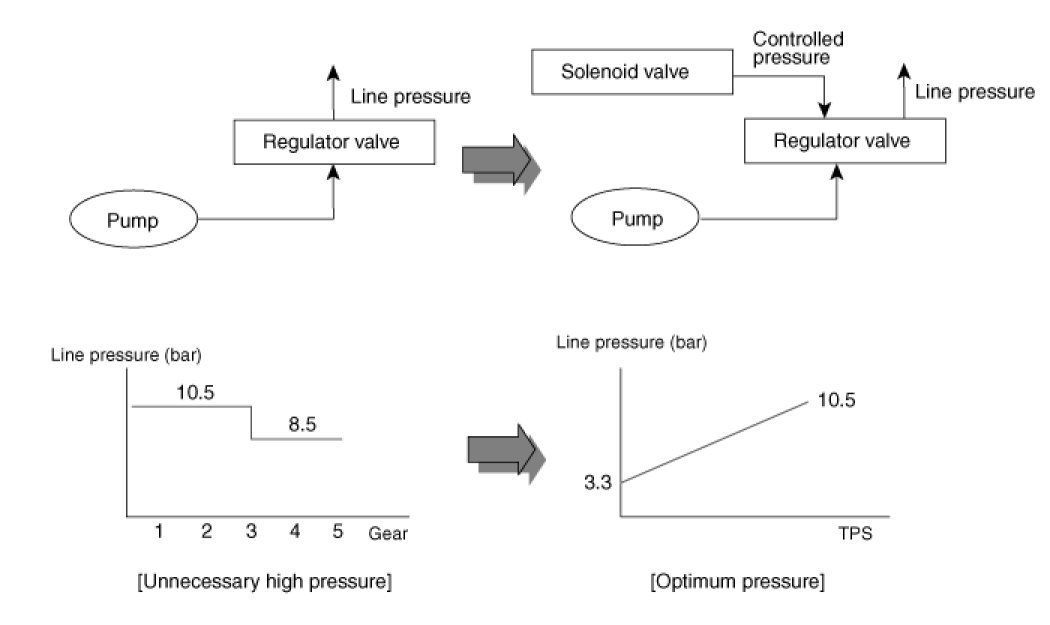

2. Variable Line Pressure Control
A. Description
- Form the most suitable line pressure according to the vehicle driving condition
B. Special Features
- VFS (Variable Force Solenoid) valve(For varying line pressure)
- Reducing valve added(Stabilize control pressure during shifting)
C. Effects
- Improved power transmission efficiency and fuel consumption




3. Case/Housing intensity reinforced
A. Description
- Case/Housing intensity reinforced
B. Special Features
- Converter hosing intensity reinforced(Ribs added and thickness increased)
- Most suitable stiff reinforcement through analyzing
C. Effects
- Intensity increased and banding vibration decreased
- NVH Performance improvement
4. Flat torque converter
A. Description
- Apply a flat type torque converter
B. Special Features
- Torque converter width decreased
- Maximum torque increased
- Blade design through three-dimensional flow analysis
C. Effects
- Full length reduction
- Weight reduction

MECHANICAL SYSTEM

CLUTCHES AND BRAKES FOR EACH RANGE





(X : Locked when driving)

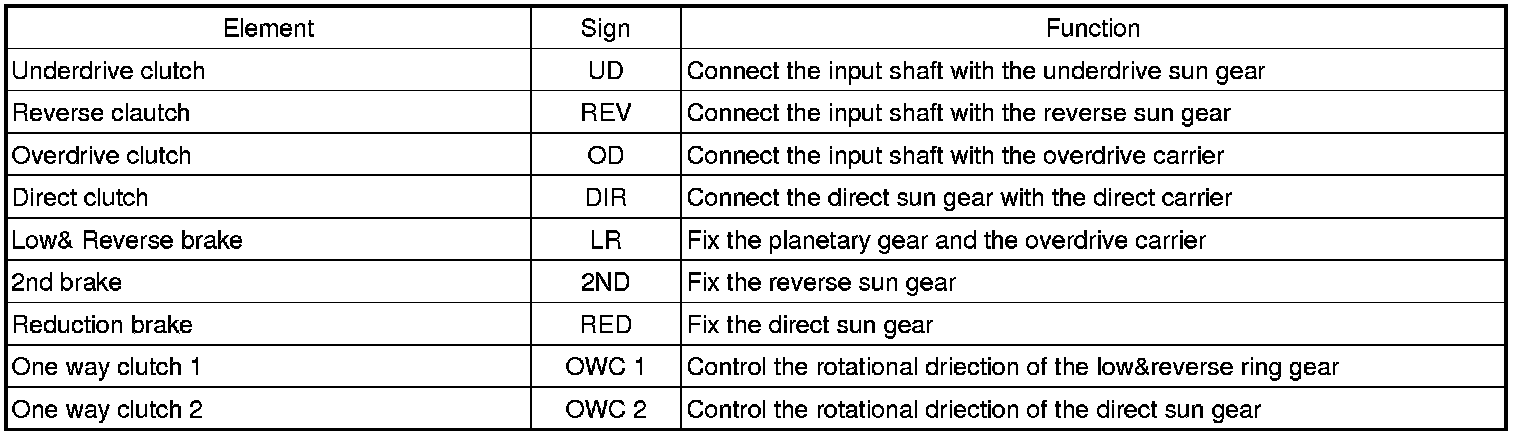

FUNCTIONS OF CLUTCHES AND BRAKES

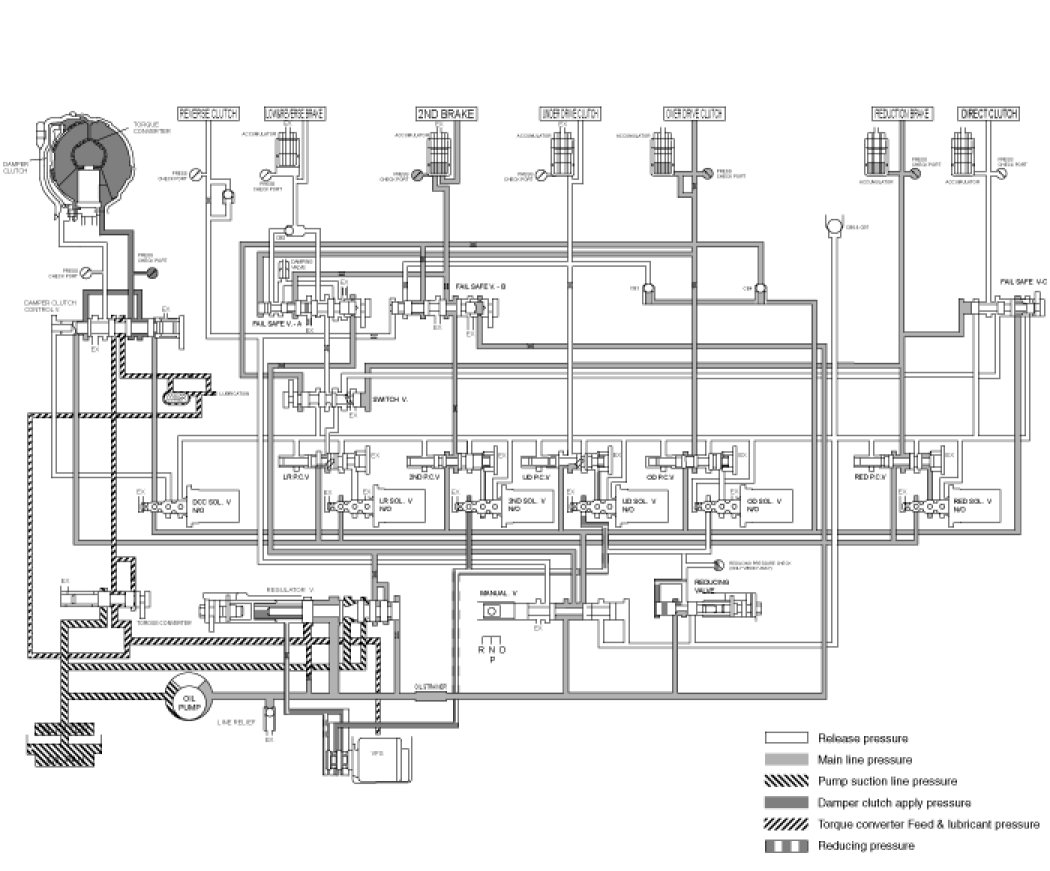

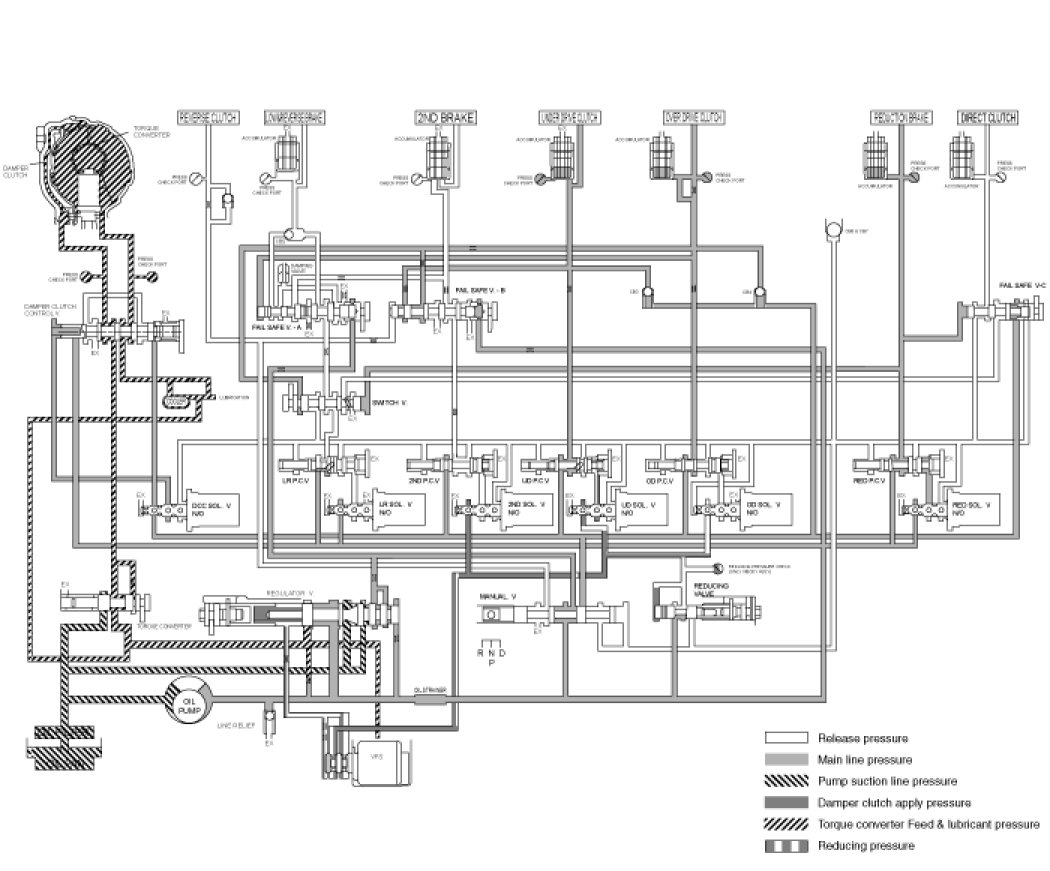

AUTOMATIC TRANSAXLE HYDRAULIC CIRCUIT

P/N

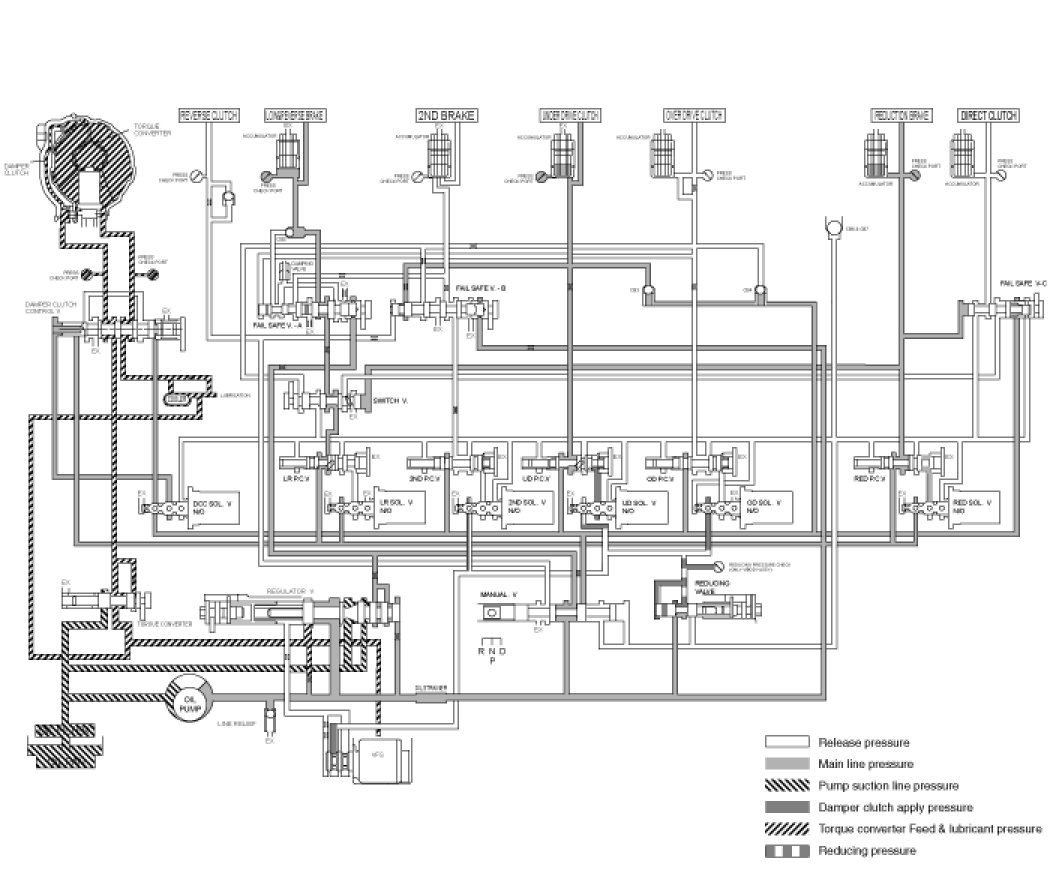

D(1 RANGE)

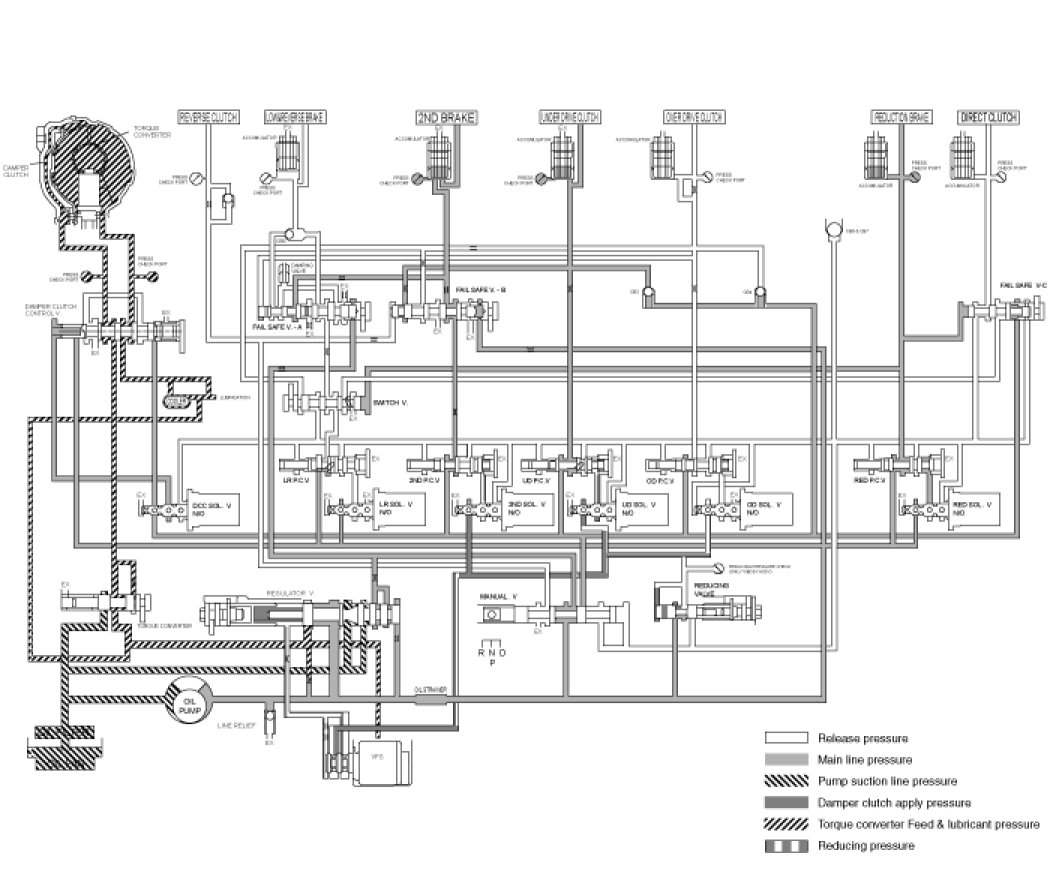

D(2 RANGE)

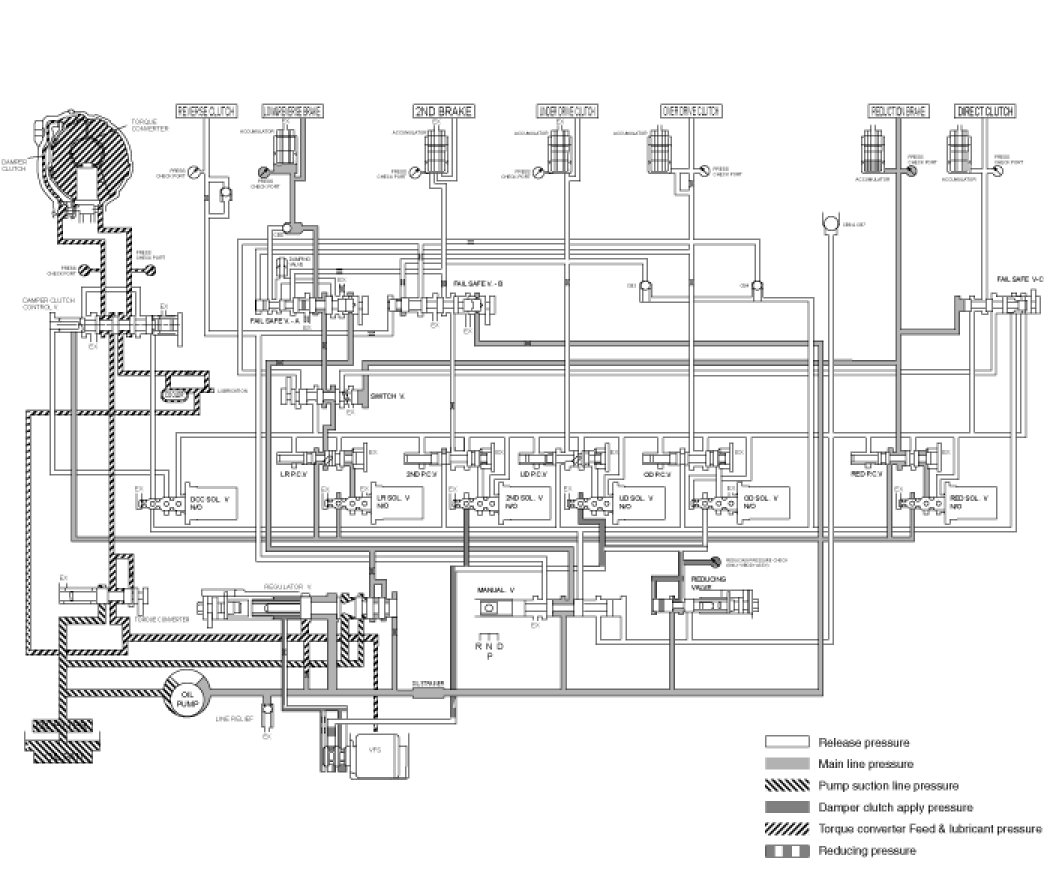

D(3 RANGE)

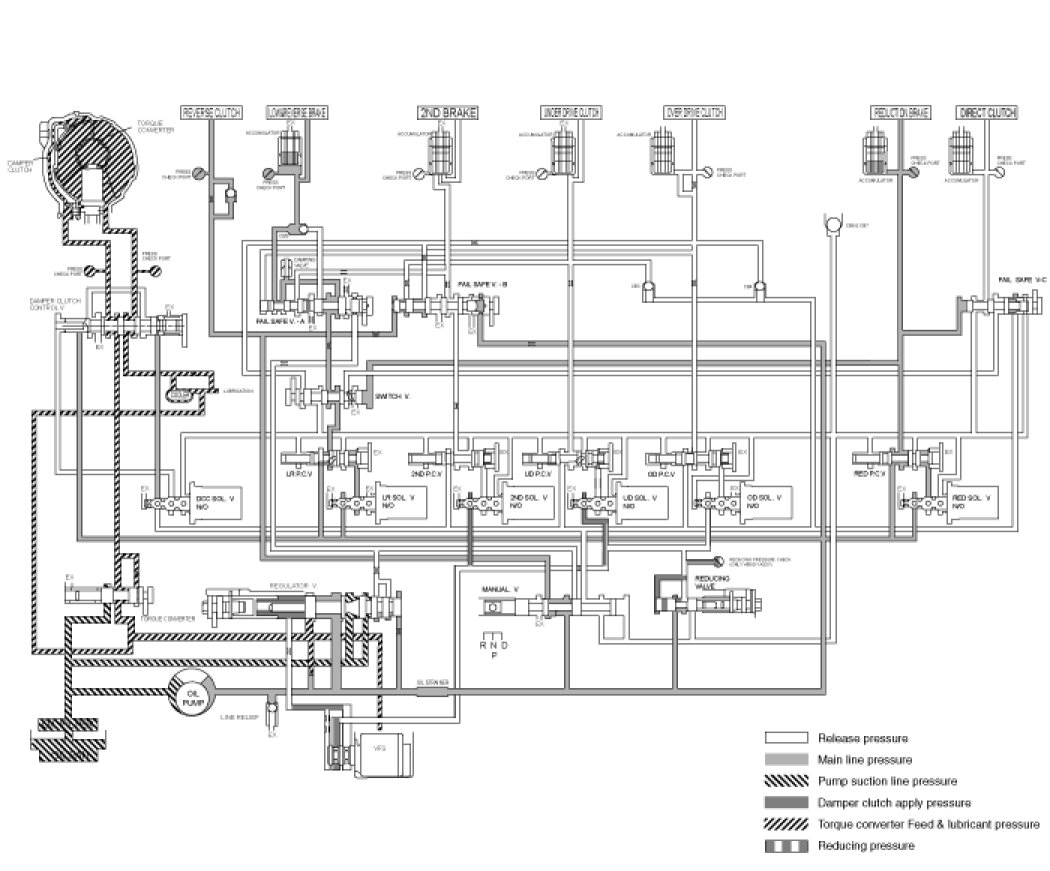

D(4 RANGE)





D(5 RANGE)





R RANGE
