Home >> Kia >> 2009 >> Optima V6-2.7L >> Repair and Diagnosis >> Restraints and Safety Systems >> Sensors and Switches - Restraints and Safety Systems >> Seat Belt Buckle Switch >> Testing and Inspection

Seat Belt Buckle Switch: Testing and Inspection





Inspection

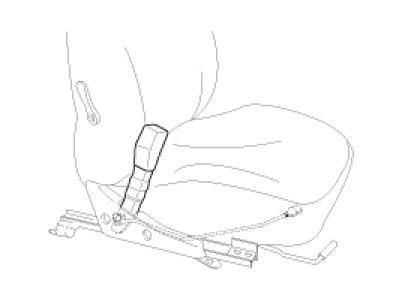

Seat Belt Switch
1. Remove the connector from the switch.

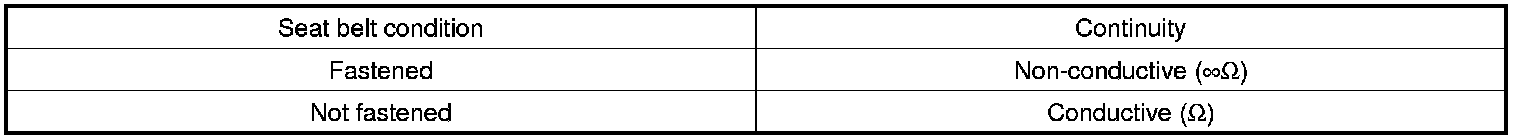

2. Check for continuity between terminals.
