Pinout Values and Diagnostic Parameters





SRSCM Connector Terminal

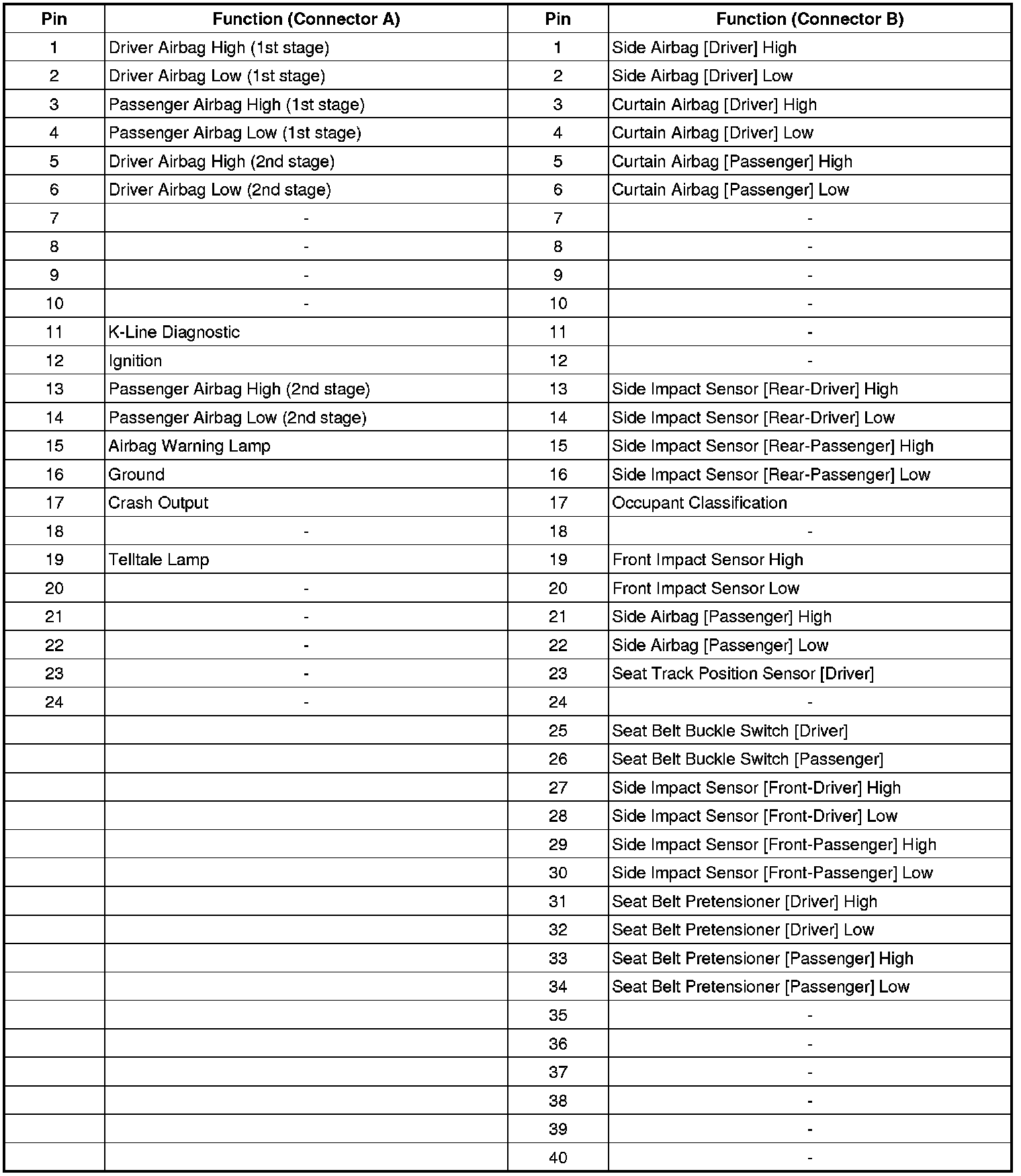

SRSCM Harness Connector [Advanced]

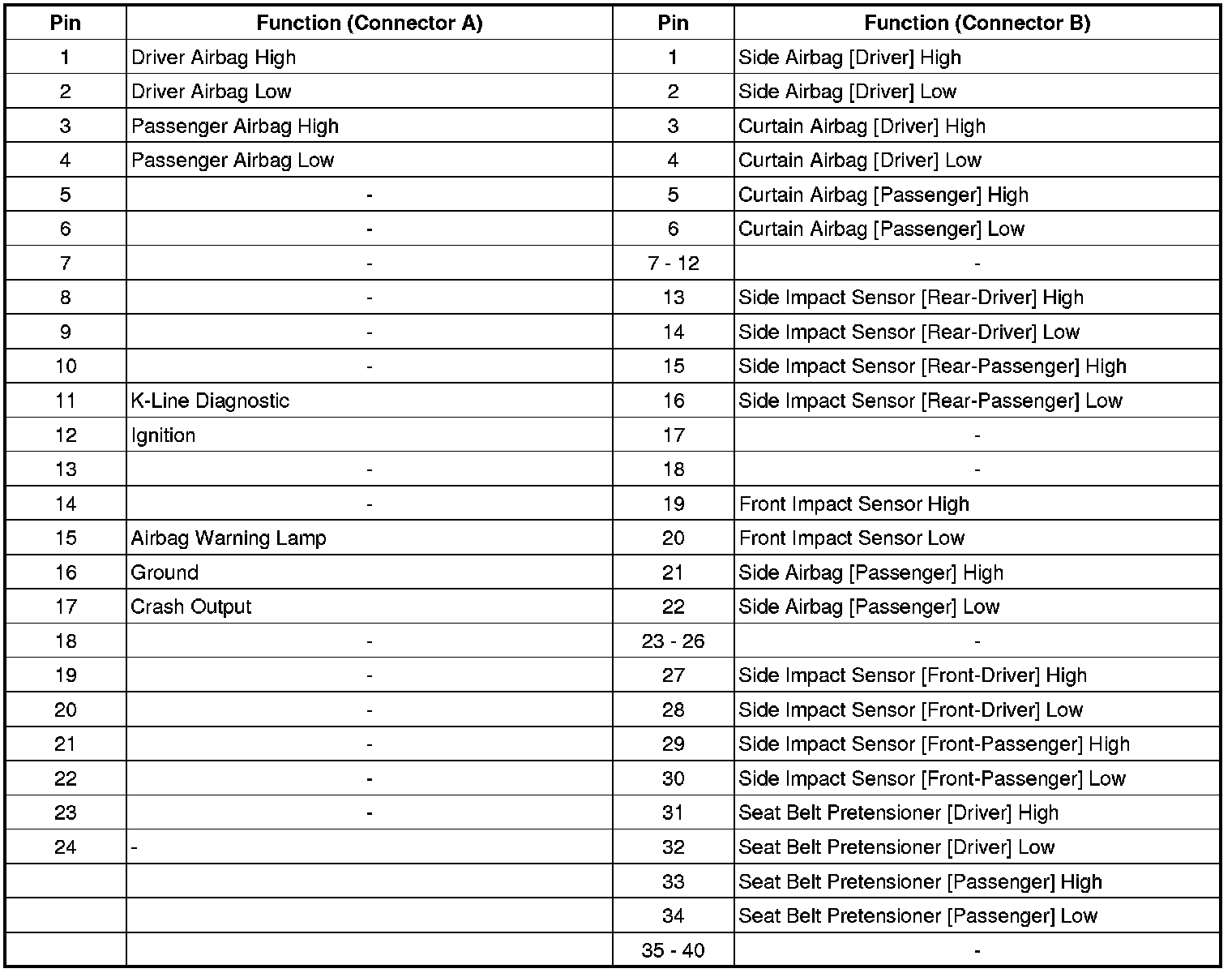

SRSCM Harness Connector [Depowered]
