Home >> Kia >> 2009 >> Optima V6-2.7L >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Fuel Pump >> Testing and Inspection

Fuel Pump: Testing and Inspection


FUEL PRESSURE TEST

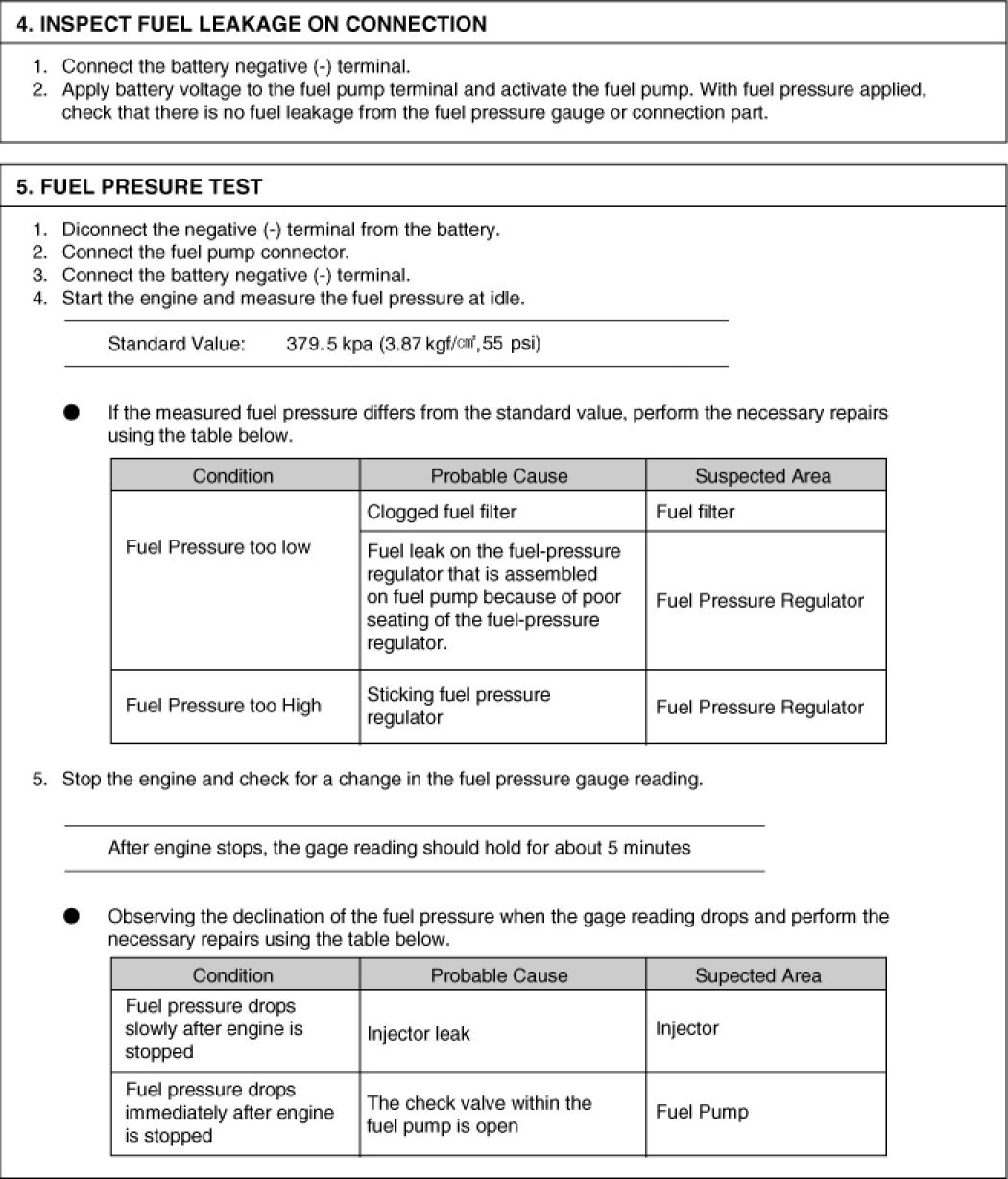

Steps 4 - 5:
