Repair Procedures

Removal

1. Disconnect the negative (-) battery terminal.
2. Tilt the steering column down and remove the center fascia panel (B).

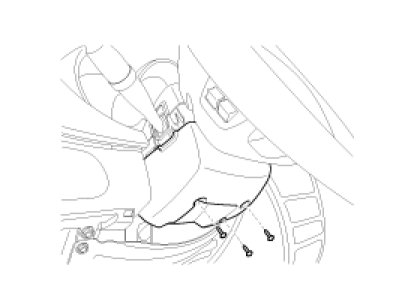

3. Remove the shroud (A) after removing the screws.

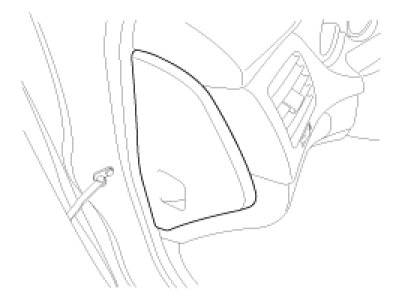

4. Remove the crash pad side cover (A).

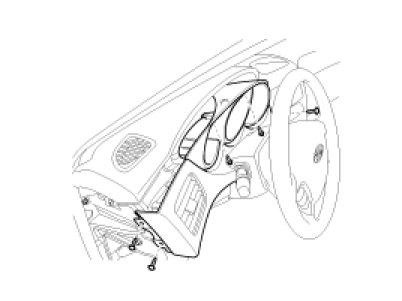

5. Remove the left air vent cover and cluster fascia panel (A) after removing the screws.

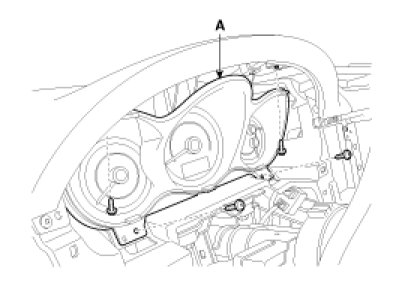

6. Remove the cluster (A) after loosening the screws.

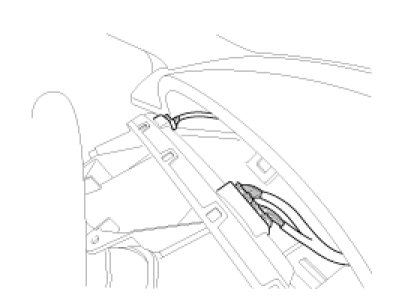

7. Disconnect the cluster connector (A), then remove the cluster.
