Cluster Replacement

Replacement

Cluster Replacement
1. Remove the cluster facia panel.
2. Loosen the screws.

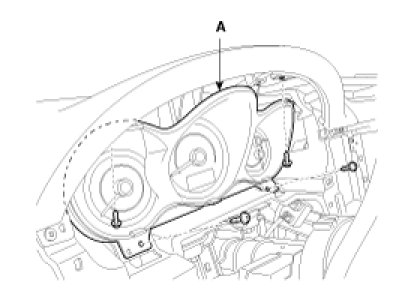

3. Remove the cluster (A).

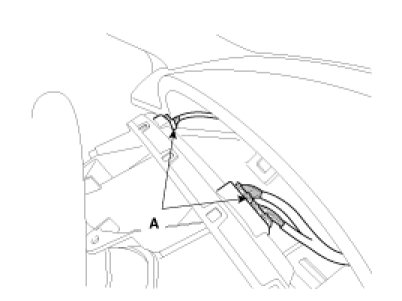

4. Disconnect the cluster connector (A), then remove the cluster.




5. Installation is the reverse of removal.

NOTE:
- Make sure the connector are plugged in properly.
