Cluster Facia Panel Replacement

Replacement

Cluster Facia Panel Replacement

NOTE:
- When prying with a flat-tipped screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damaged.
- Put on gloves to protect your hands.

1. Tilt the steering column down.
2. Remove the center facia panel.

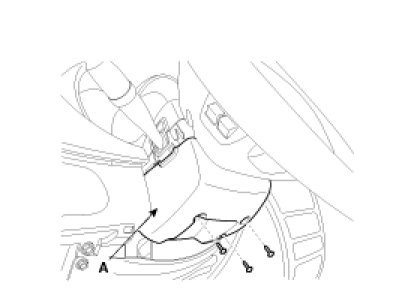

3. Remove the shroud lower cover (A).

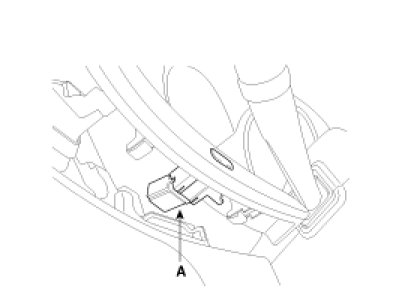

4. Disconnect the connect (A).




5. After loosening the mounting screws, remove the cluster facia panel (A).




6. Disconnect the connector (A).




7. Installation is the reverse the removal.

NOTE:
- Make sure the connector are plugged in properly.
