Removal

Removal

CAUTION:
- Use fender covers to avoid damaging painted surfaces.
- To avoid damaging the cylinder head, wait until the engine coolant temperature drops below normal temperature before removing it.
- When handling a metal gasket, take care not to fold the gasket or damage the contact surface of the gasket.
- To avoid damage, unplug the wiring connectors carefully while holding the connector portion.

NOTE:
- Mark all wiring and hoses to avoid misconnection.
- Turn the crankshaft pulley so that the No. 1 piston is at top dead center.

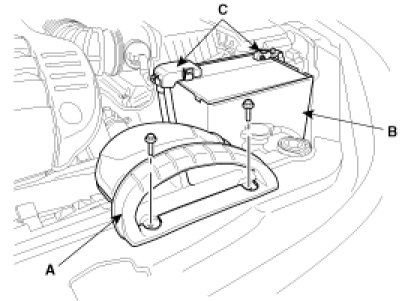

1. Remove the air duct(A) and the battery(B) after disconnecting the terminals(C) from the battery.

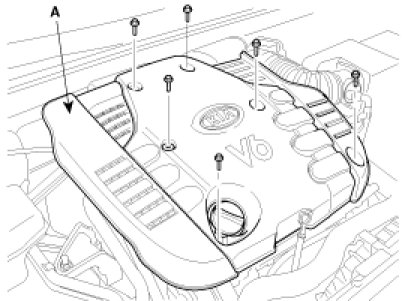

2. Remove the engine cover(A).

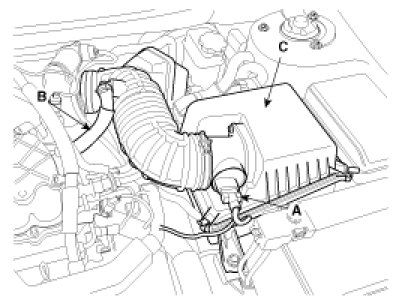

3. Remove the intake air hose and air cleaner assembly.
(1) Disconnect the MAF connector(A).
(2) Disconnect the breather hose(B) from air cleaner hose.
(3) Remove the intake air hose and air cleaner assembly(C).

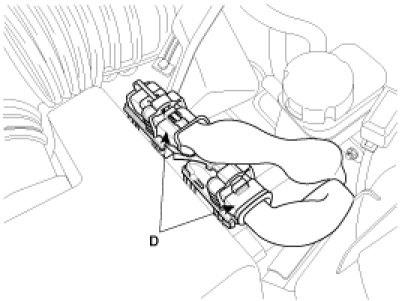

(4) Disconnect the PCM connectors(D).

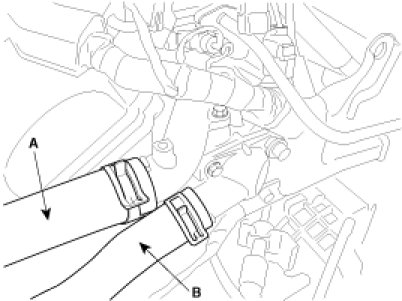

4. Remove the upper radiator hose(A) and lower radiator hose(B).




5. Remove the fuel inlet hose(A) from the delivery pipe.




6. Disconnect the engine wiring harness connectors.

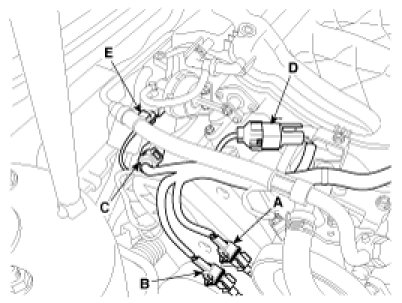

(1) Disconnect the No.1/No.2 knock sensor connectors(A, B), injector connector (C), the ignition coil harness(D) and the No.1 VIS(Variable Induction System) connector(E).




(2) Disconnect the bank 1 front/rear O2 sensor connectors(A).

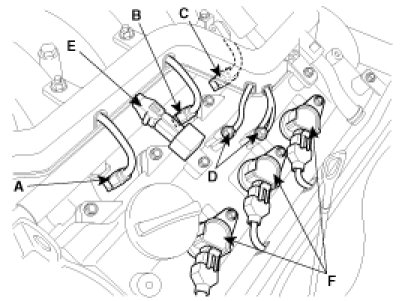

(3) Disconnect the injection connectors(A, B, C), the ground lines(D), the condenser connector(E) and the Ignition coil connectors(F).

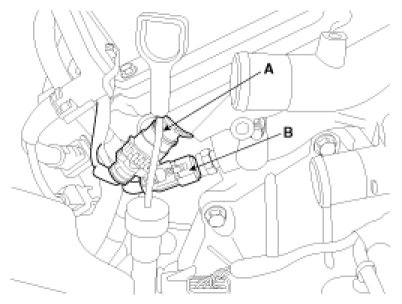

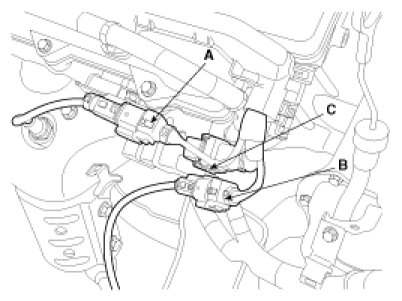

(4) Disconnect the No.1/No.2 OCV (Oil Control Valve) connectors (A, B), and the OTS (Oil Temperature Sensor) connector (C).

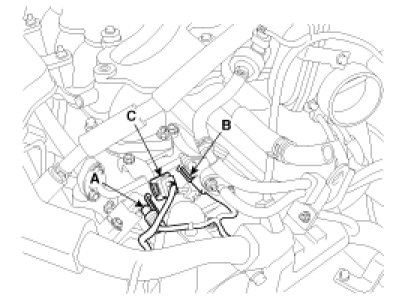

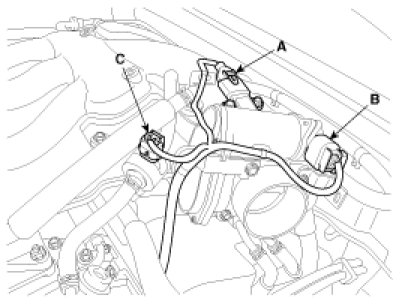

(5) Disconnect the MAPS(Manifold Absolute Pressure Sensor) connector(A), the ETC(Electronic Throttle Control) connector(B) and the PCSV(Purge Control Solenoid Valve) connector(C).

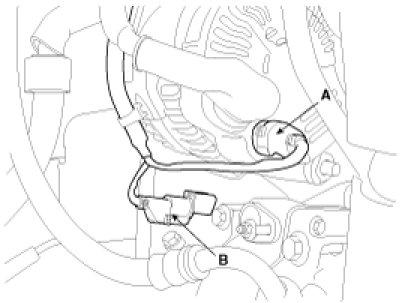

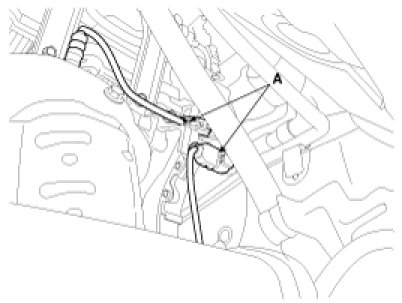

(6) Disconnect the generator connector(A) and the air conditioning compressor connector(B).




(7) Disconnect the bank 2 CMP sensor connector(A) and the ECT(Engine Coolant Temperature) sensor connector(B).




(8) Disconnect the bank 2 front/rear O2 sensor connectors(A,B) and the CKP sensor connector(C).




(9) Disconnect the bank 1 CMP sensor connector(A).

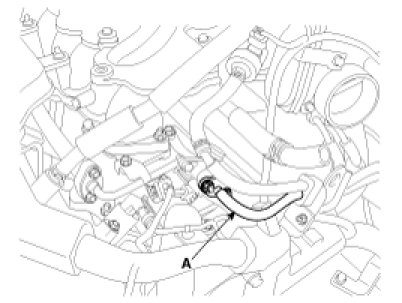

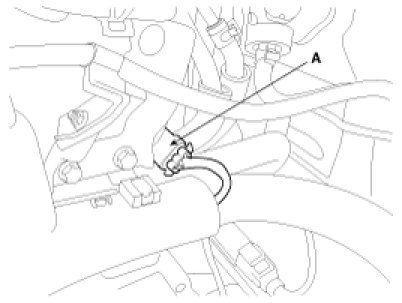

7. Disconnect the brake vacuum hose(A).




8. Remove the heater hoses.

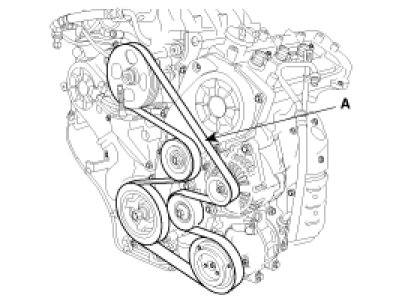

9. Remove the drive belt(A).




10. Remove the power steering pump. .
11. Remove the exhaust manifold assembly. .
12. Remove the intake manifold assembly. .
13. Remove the timing belt. .
14. Remove the ignition coils.
15. Remove the water temp. control assembly.

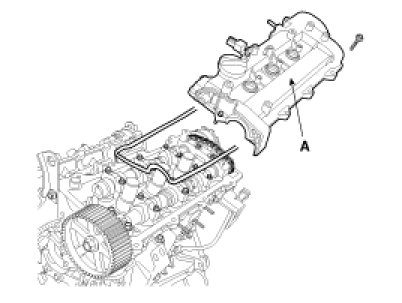

16. Remove the cylinder head cover(A).




17. Remove the camshaft bearing cap(A).

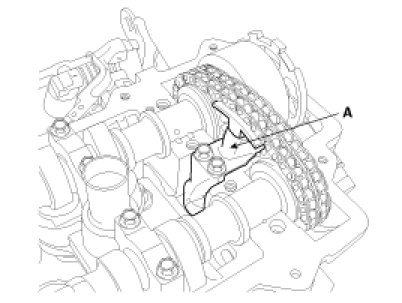

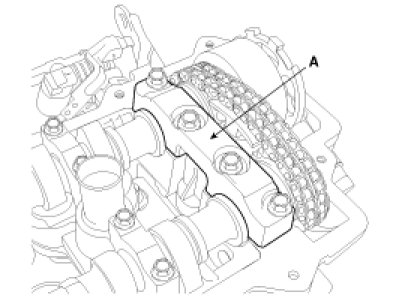

18. Remove the timing chain tensioner(A).




19. Remove the camshaft.

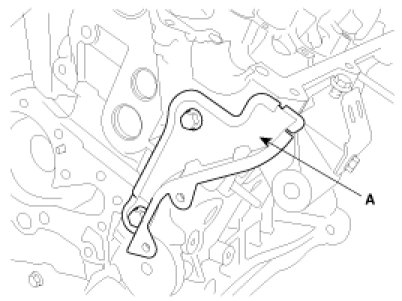

20. Remove the bank 2 timing belt rear cover(A).




21. Remove the bank 1 timing belt rear cover(A).

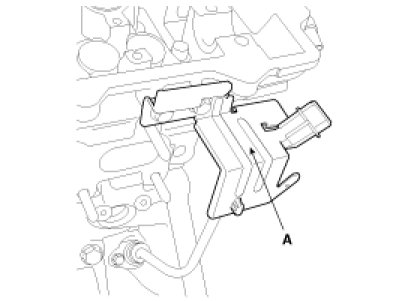

22. Remove the CKP sensor connector bracket(A).




23. Remove the cylinder head assembly.

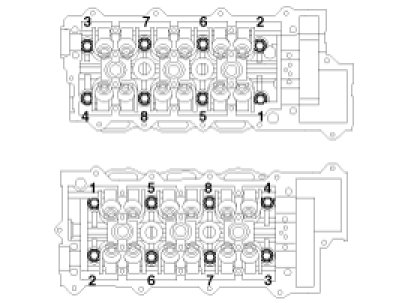

(1) Remove the bolts in 2 - 3 steps as following orders.





CAUTION:
If the bolts are not removed as the order, the deformation of the head assembly can be occurred.

(2) Put the cylinder head assembly on a wooden block after removal from the cylinder block.

CAUTION:
Ensure that the surface between the cylinder head and the block is not damaged.

Replacement

Valve Guide

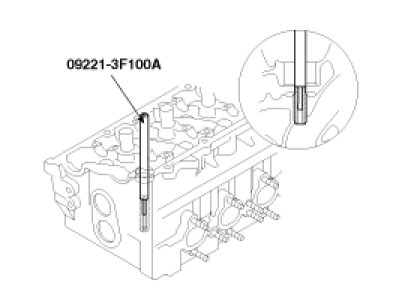

1. Using the SST(09221-3F100A), remove the valve guide from the downside of the cylinder head assembly.




2. Reprocess the valve guide hole for the oversized valve guide newly installed.

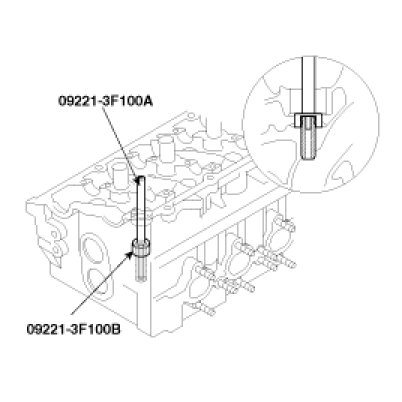

3. Using the SST(09221-3F100A/B), insert the valve guide in the upside of the cylinder head assembly. Be aware of the difference in length between the intake and the exhaust valve guides.

Specification
Intake valve guide:
45.8 - 46.2mm(1.8031 - 1.8189in.)
Exhaust valve guide:
46.8 - 47.2mm(1.8425 - 1.8583in.)





4. After installing the valve guides, insert new valves and check the clearance between the valve stems and the valve guides.
5. After replacing the valve guides, check if they are properly installed with the valve seats. Reprocess valve seats if necessary.
