Home >> Kia >> 2009 >> Optima V6-2.7L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Control Arm >> Front Lower Arm

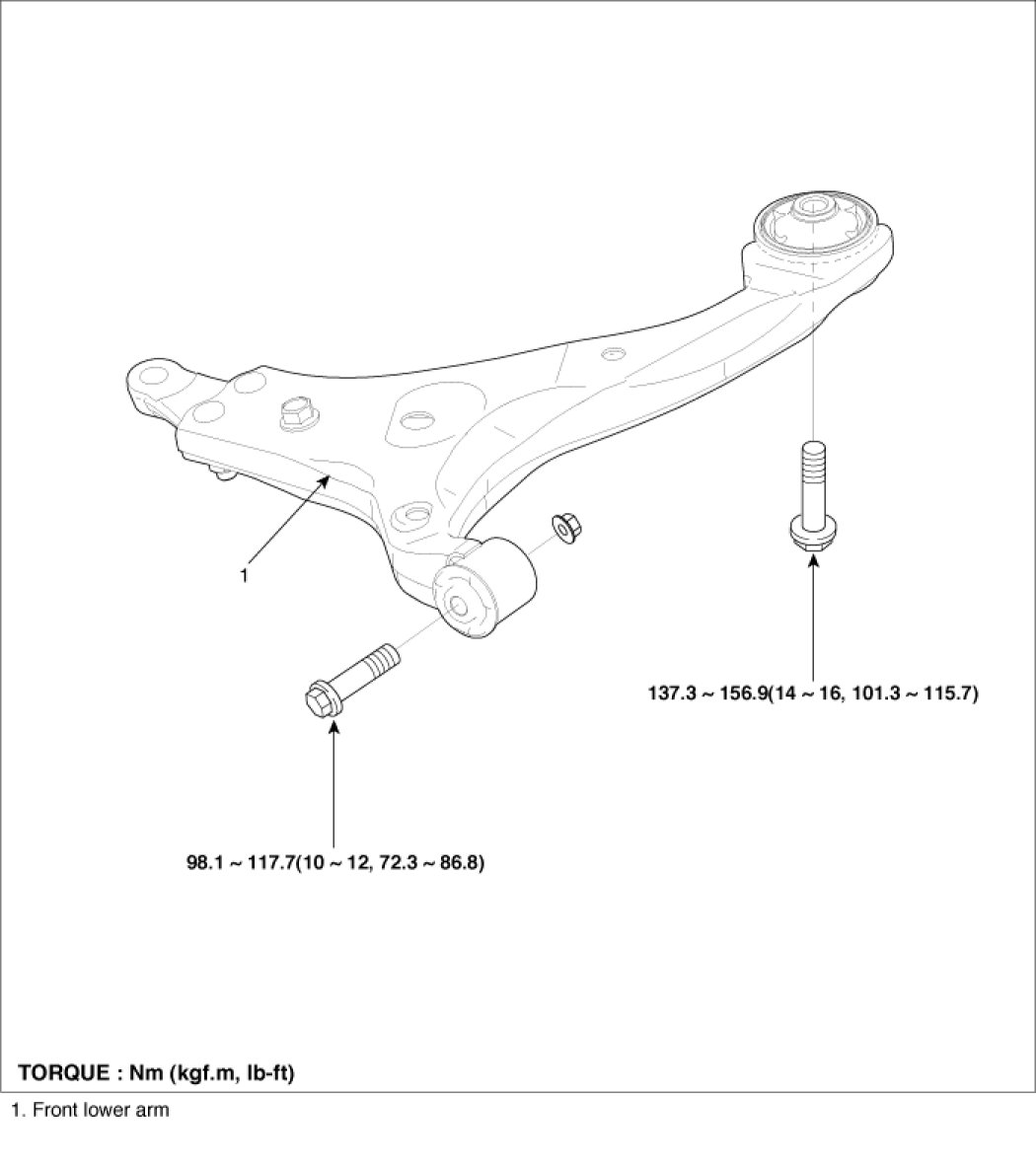

Front Lower Arm





COMPONENTS
