Power Window Switch





Circuit Diagram

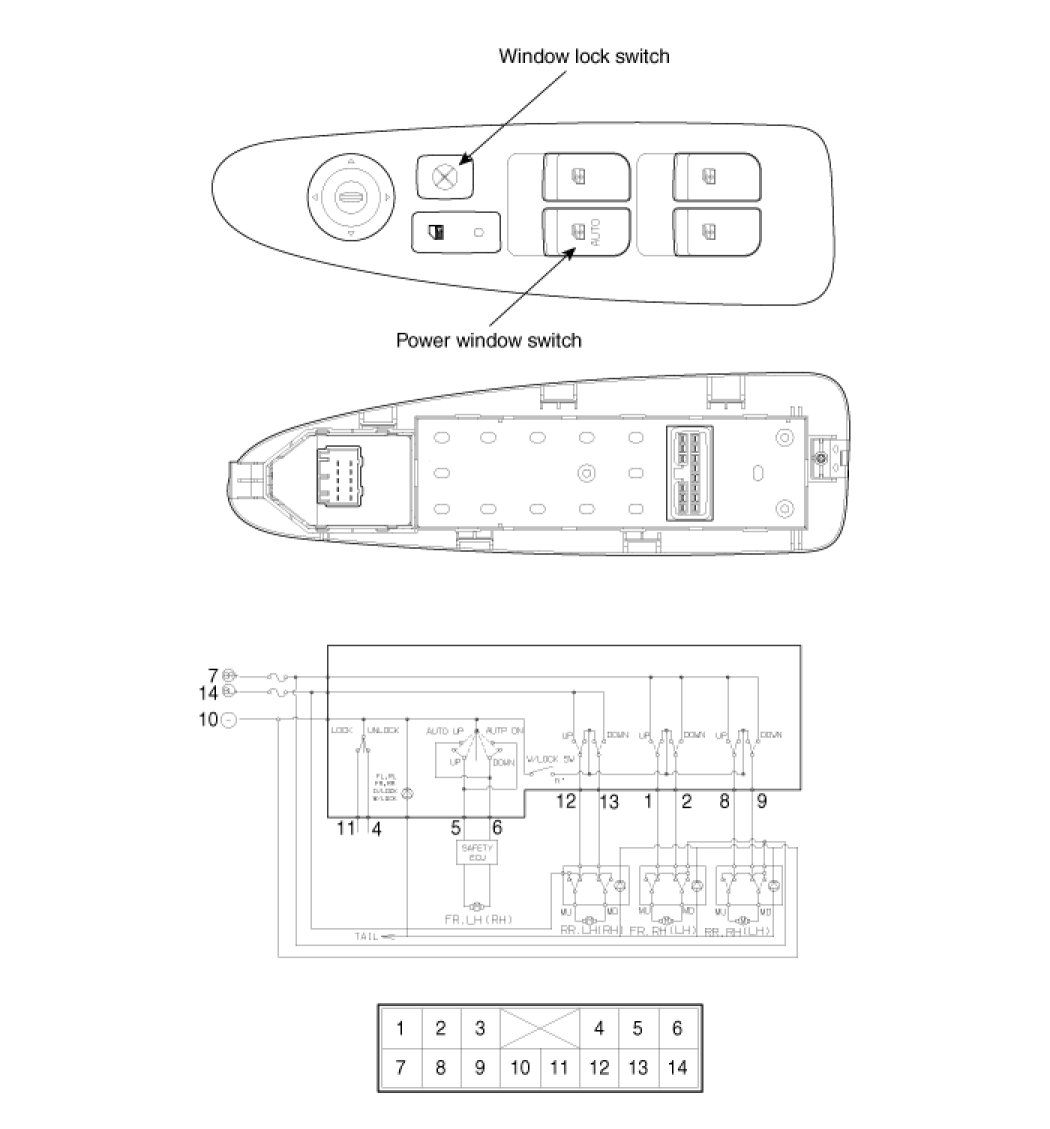

Driver Power Window Switch

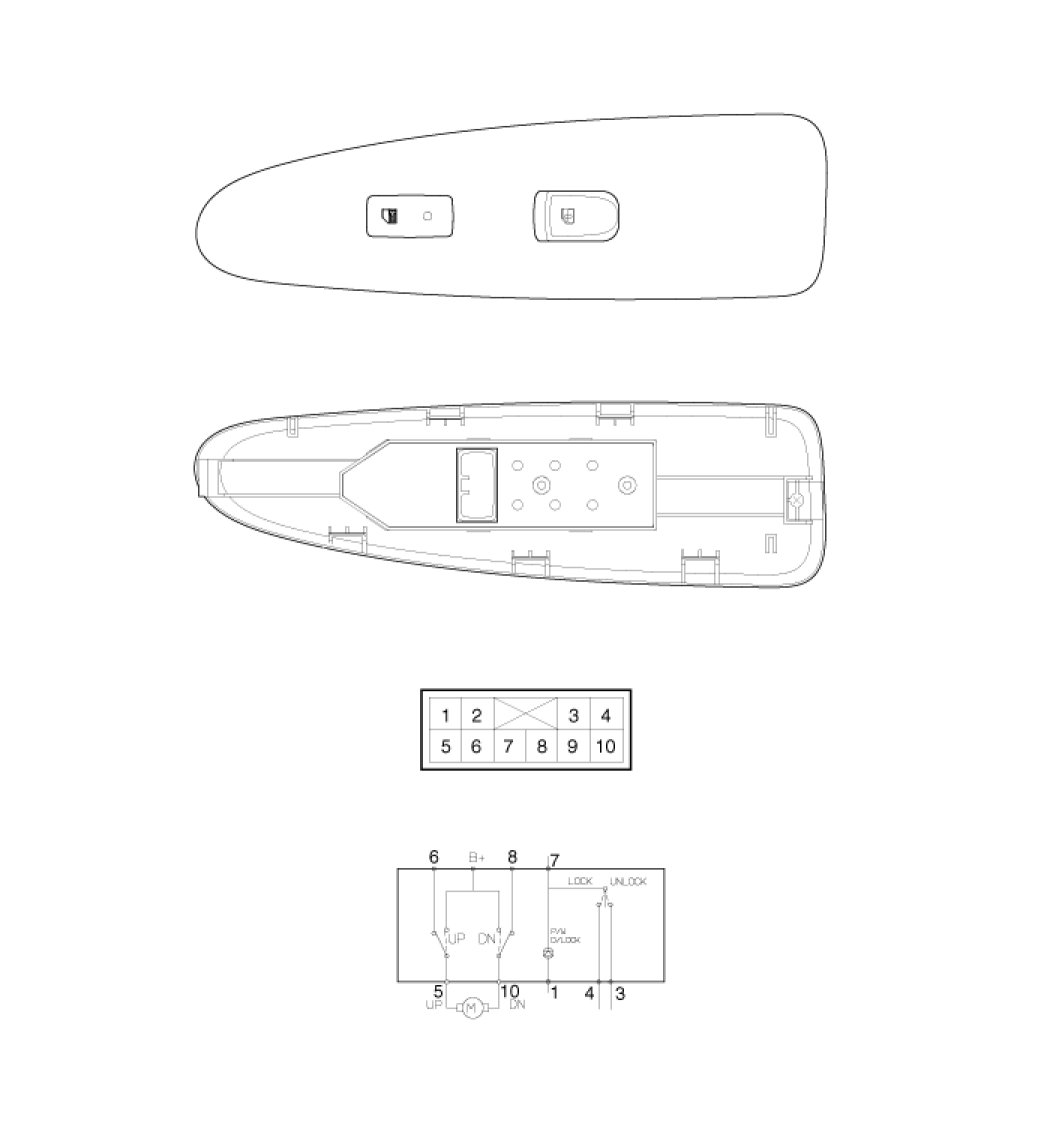

Assist Power Window Switch

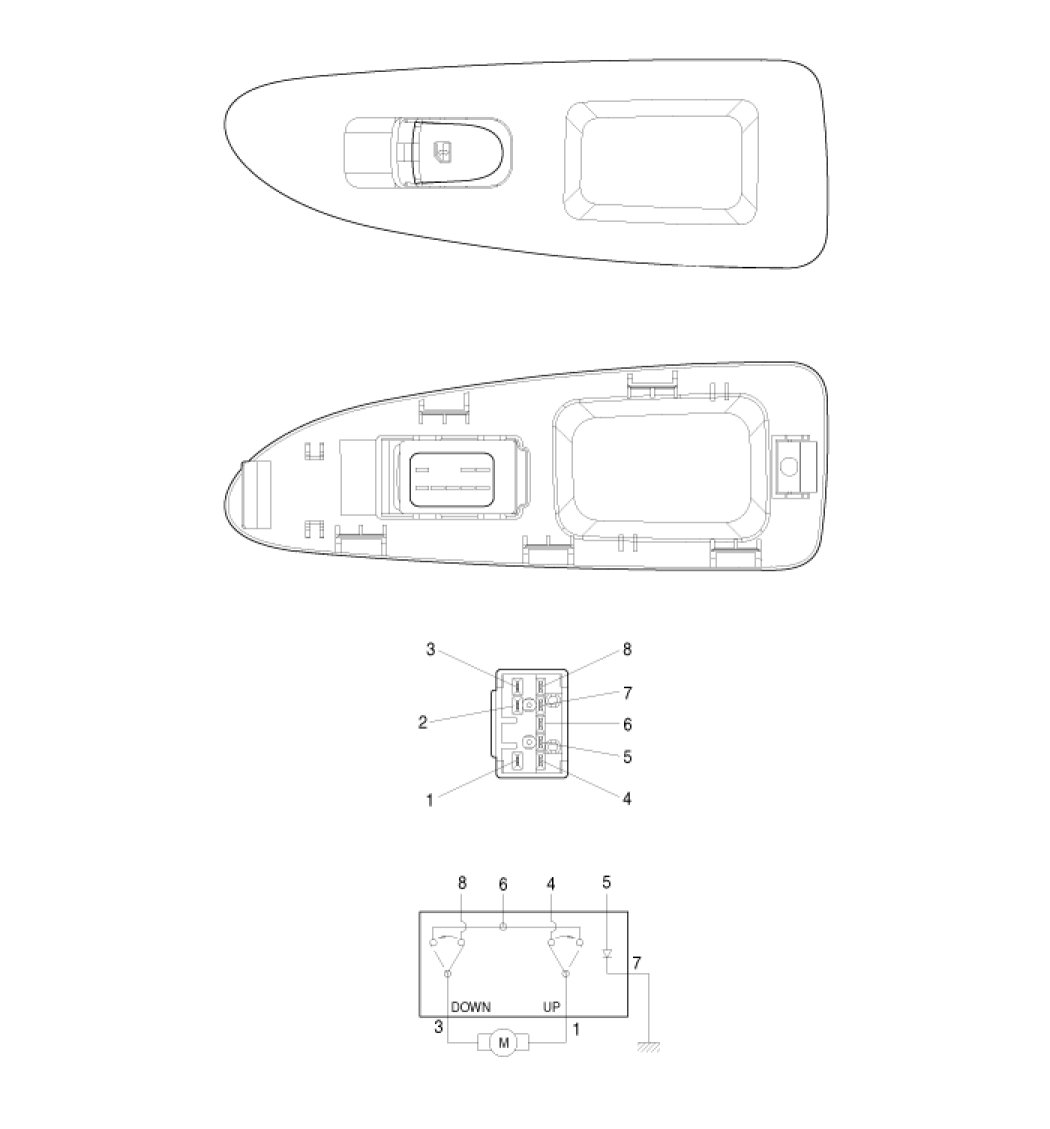

Rear Power Window Switch
