Removal and Installation

REMOVAL

1. Remove the lower crash pad.
2. Pull down steering column shaft after removing 4 bolts.

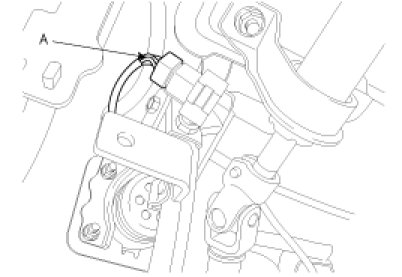

3. Remove the stop lamp switch connector (A).

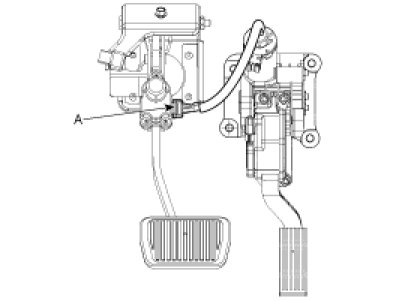

4. Remove the motor connector (A) in case of the adjustable brake pedal.

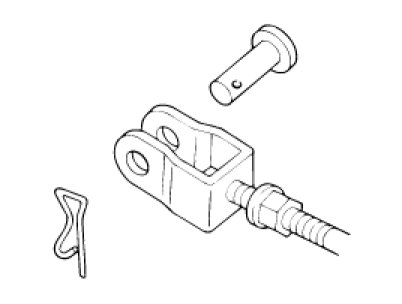

5. Remove the clevis pin and snap pin.
6. Remove the brake pedal member assembly mounting nuts and then remove the brake pedal assembly.

INSTALLATION

1. Installation is the reverse of removal.

Grease : LiG-2


CAUTION:
Coat the inner surface of the bushings with the specified grease.

2. Before inserting the pin, apply the specified grease to the joint pin.




3. Adjust the brake pedal height and free play.
4. Install the stop lamp switch.
