Home >> Kia >> 2009 >> Optima V6-2.7L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> ESC Connector Input/Output

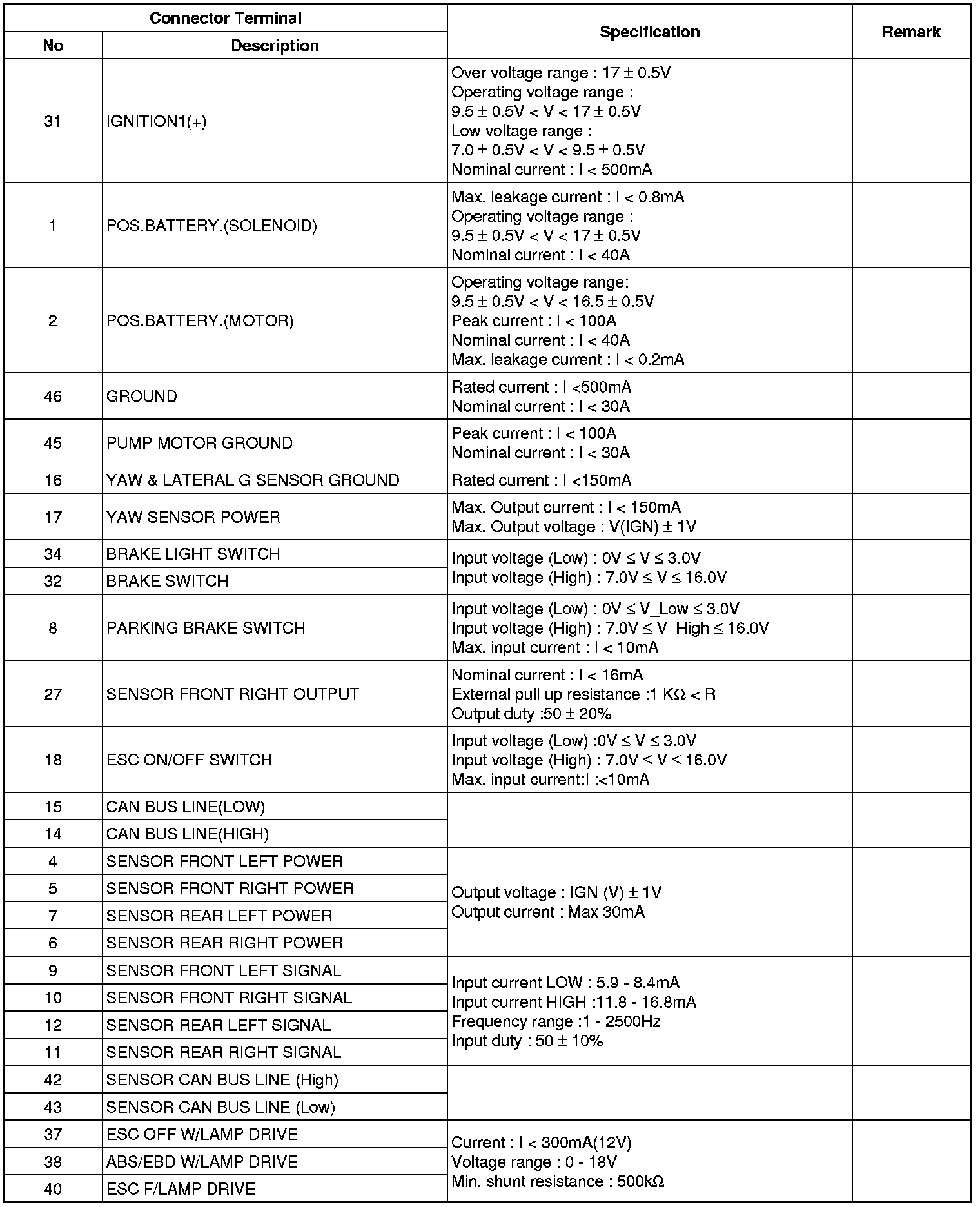

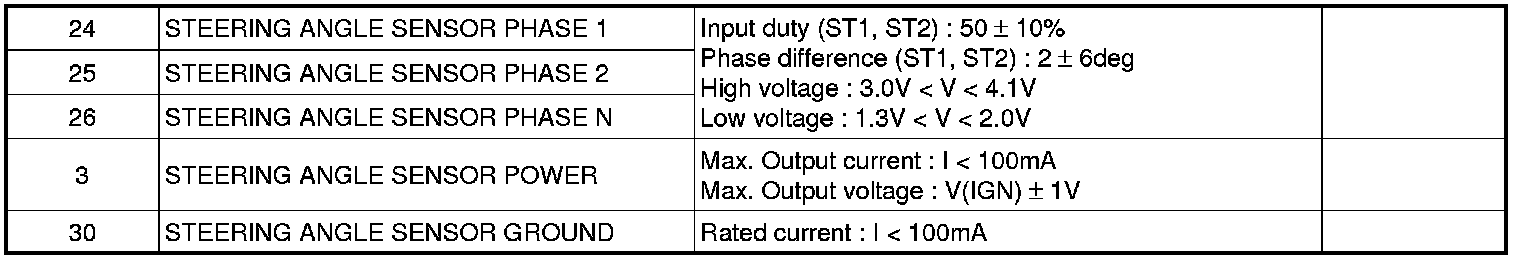

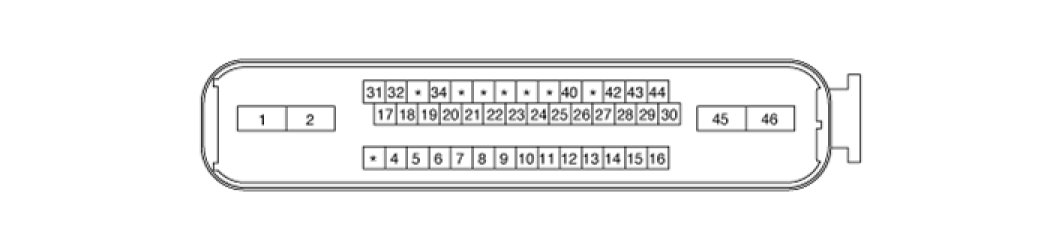

ESC Connector Input/Output





ESC Connector Input/Output
