Rear Door Panel: Service and Repair

REPLACEMENT

REAR DOOR TRIM REPLACEMENT

NOTE:
- Take care not to scratch the door trim and other parts.
- Put on gloves to protect your hands.

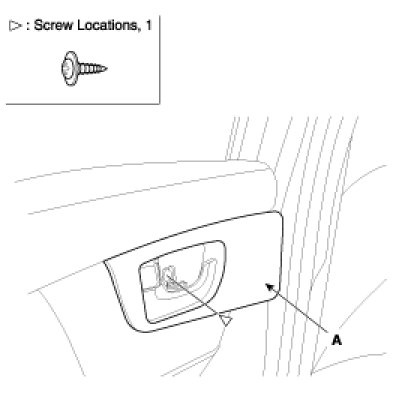

1. Remove the inside handle cover (A).

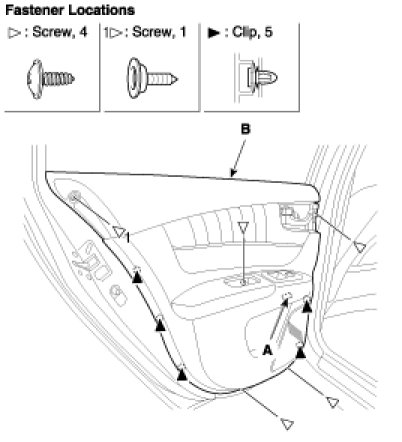

2. Loosen the door trim (B) mounting screws. Release the clips that hold the door trim, then remove the door trim by pulling it upward. Disconnect the power window switch connector (A).




3. Installation is the reverse of removal.

NOTE:
- Make sure of connectors is plugged in properly and each rod is connected securely.
- Make sure the door locks and opens properly.
