General Information

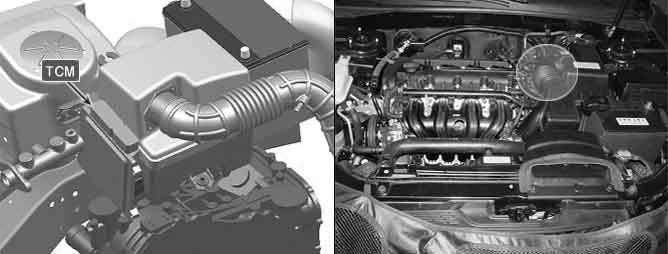

Component Location





General Description

The TCM can either receive data from the Engine Control Module or ABS control module or it can send data to the ECM and ABSCM by using CAN communication. The CAN communication is one of the vehicle communications method, which is now widely used to transfer the vehicle data.

DTC Description

When the TCM cannot read the data from the ECM through the CAN-BUS line, the TCM sets this code.
CAN-BUS circuit malfunctioning or ECM can be a possible cause of this DTC.

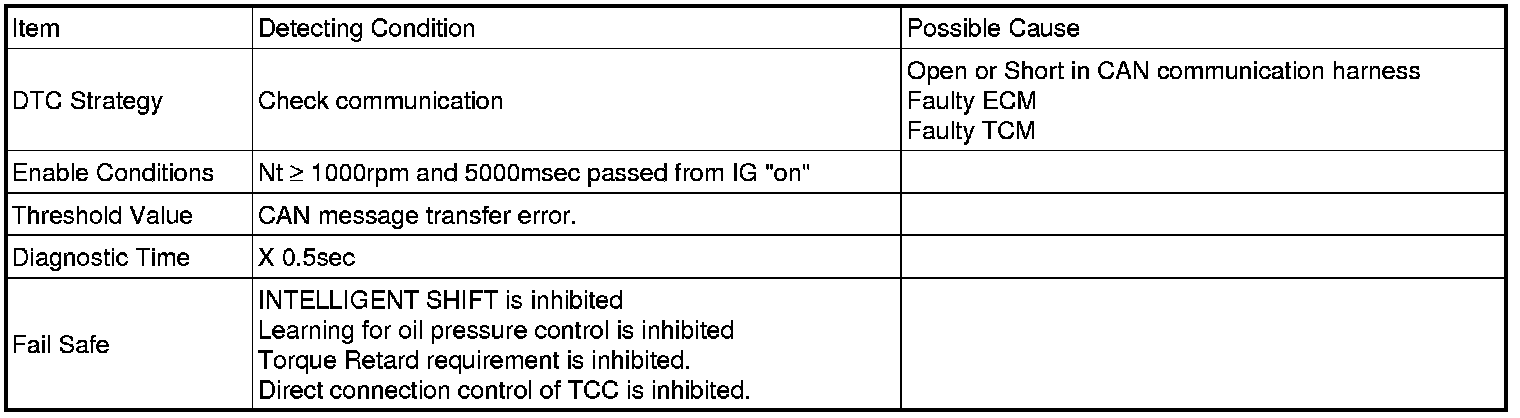

DTC Detecting Condition





Schematic Diagram
