Component Inspection

Component Inspection

Check CAN communication waveform generation
1. IG "OFF" and disconnecting PCM.
2. Measure resistance between CAN HIGH terminal and LOW terminal of the PCM connector (PCM side)

Specification : Approx. 110-130 Ohms





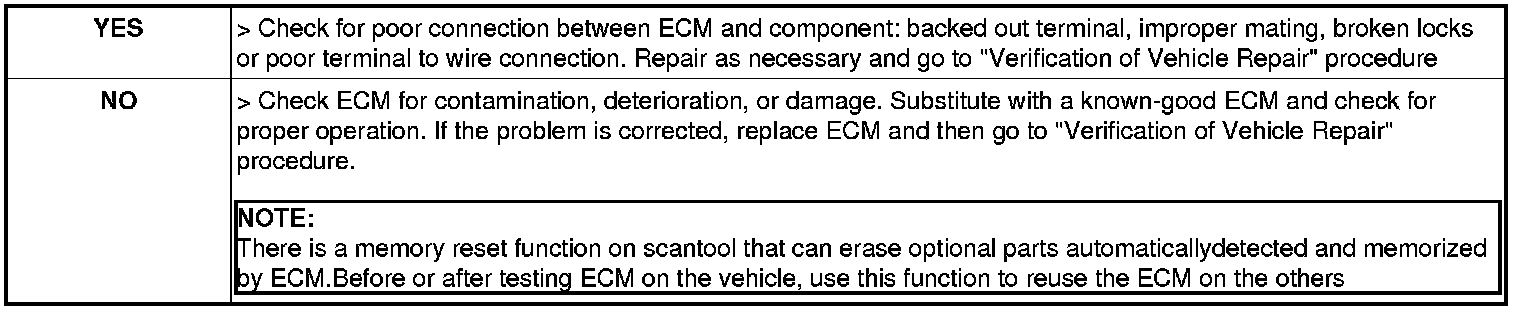

3. Is resistance within the specification?
