General Information

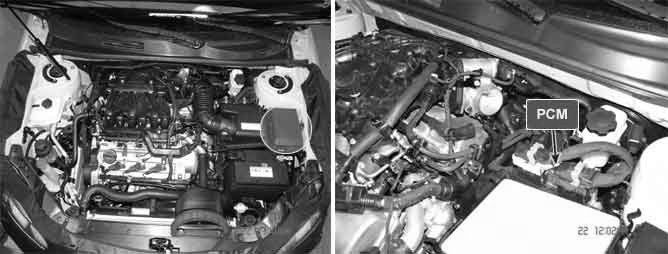

Component Location





General Description

Continuing to calculate data of several sensor despite turning ignition OFF, when ignition turns ON, ECM enables turning ignition ON to be easy using calculated data.

DTC Description

If abnormal counterdown is detected for a calibratable time, ECM sets P2610. And then MIL (Malfunction Indication Lamp) turns on when the malfunction lasts till consecutive 2 driving cycles.

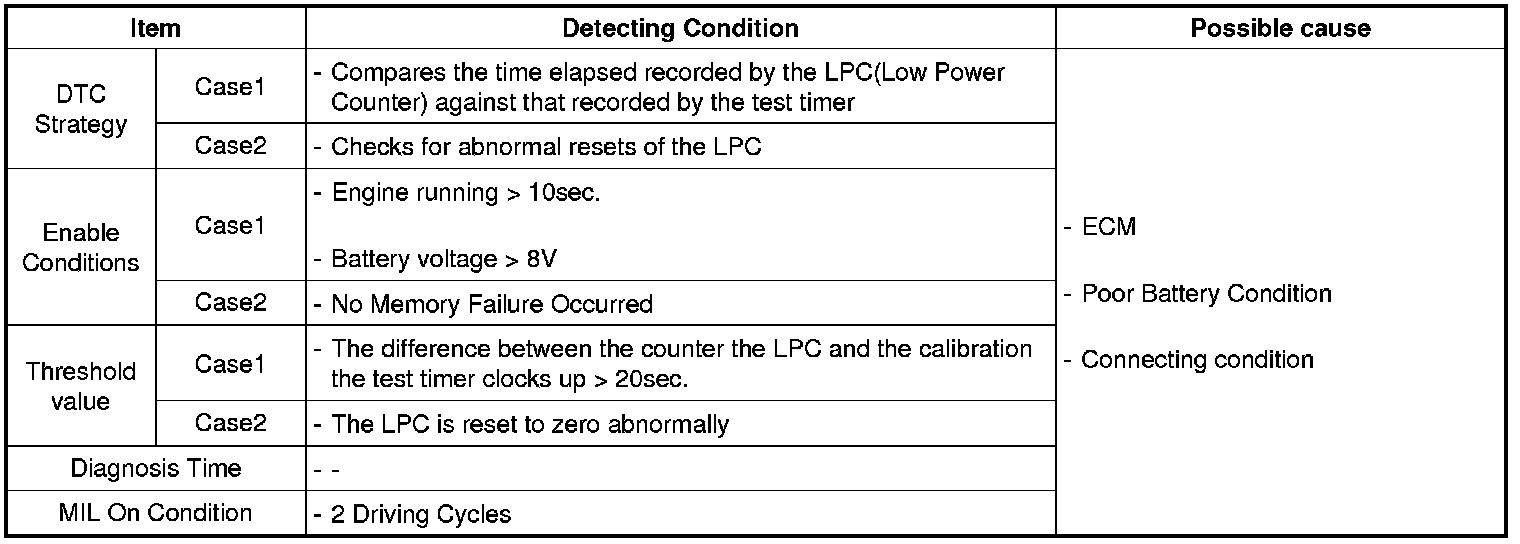

DTC Detecting Condition
