General Information

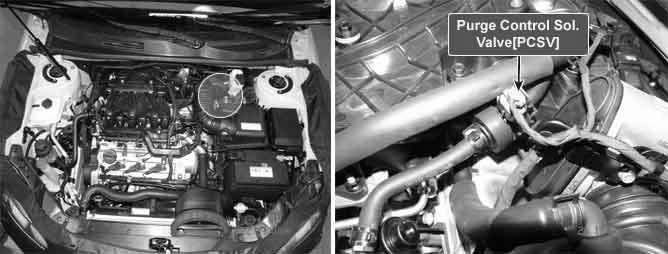

Component Location





General Description

The evaporative emission control system prevents hydrocarbon (HC) vapors from the fuel tank from escaping into the atmosphere where they could form photochemical smog. Gasoline vapors are collected in the charcoal canister. The ECM controls the Purge Control Solenoid Valve (PCSV) to purge any collected vapors from the canister back to the engine for combustion. This valve is actuated by the purge control signal from the ECM and controls fuel vapor from the canister to the intake manifold.

DTC Description

Checking output signals from fuel tank pressure sensor at purging, if fuel tank's vacuum is higher than prescribed threshold, ECM sets P2422.

DTC Detecting Condition
