General Information

Component Location





General Description

The Electronic Throttle Control (ETC) system is made of the components throttle body, Throttle Position Sensor (TPS) 1&2 and Accelerator Position Sensor (APS) 1&2. The throttle body contains the actuator, the throttle plate and the throttle position sensor (potentiometer), which are integrated in one housing. The actuator consists of a DC motor with a two-stage gear. The opening angle of the throttle valve is detected by the throttle position sensor which is mounted on the throttle body. And it provides feedback to the ECM to control the throttle motor in order to control the throttle valve opening angle properly in response to the driving condition.

DTC Description

Comparing real intake air flow and the intake air flow calculated by ETS under detecting condition, if the air flow more than threshold value is detected for more than 19 sec., ECM sets P2173. And then MIL (Malfunction Indication Lamp) turns on.

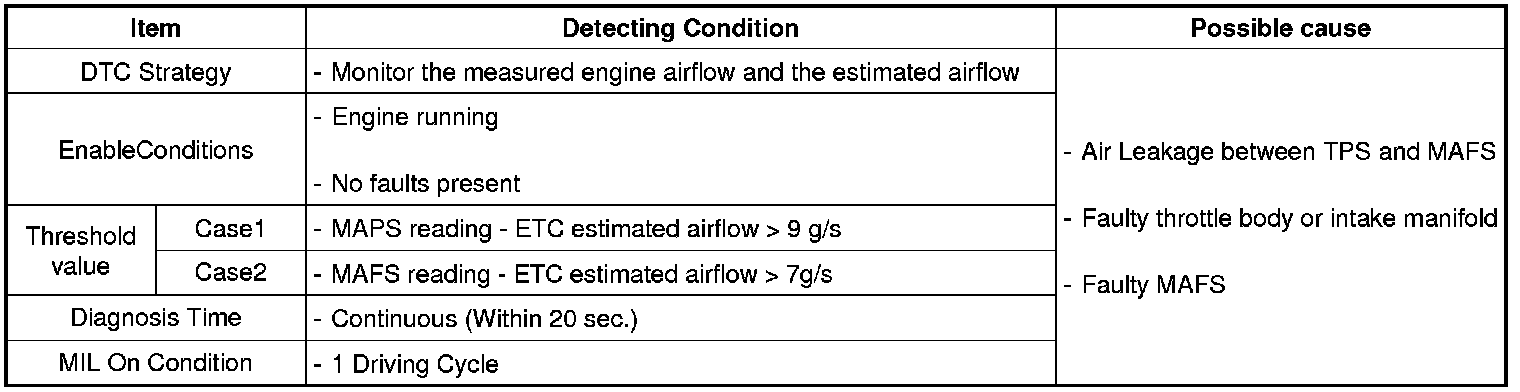

DTC Detecting Condition

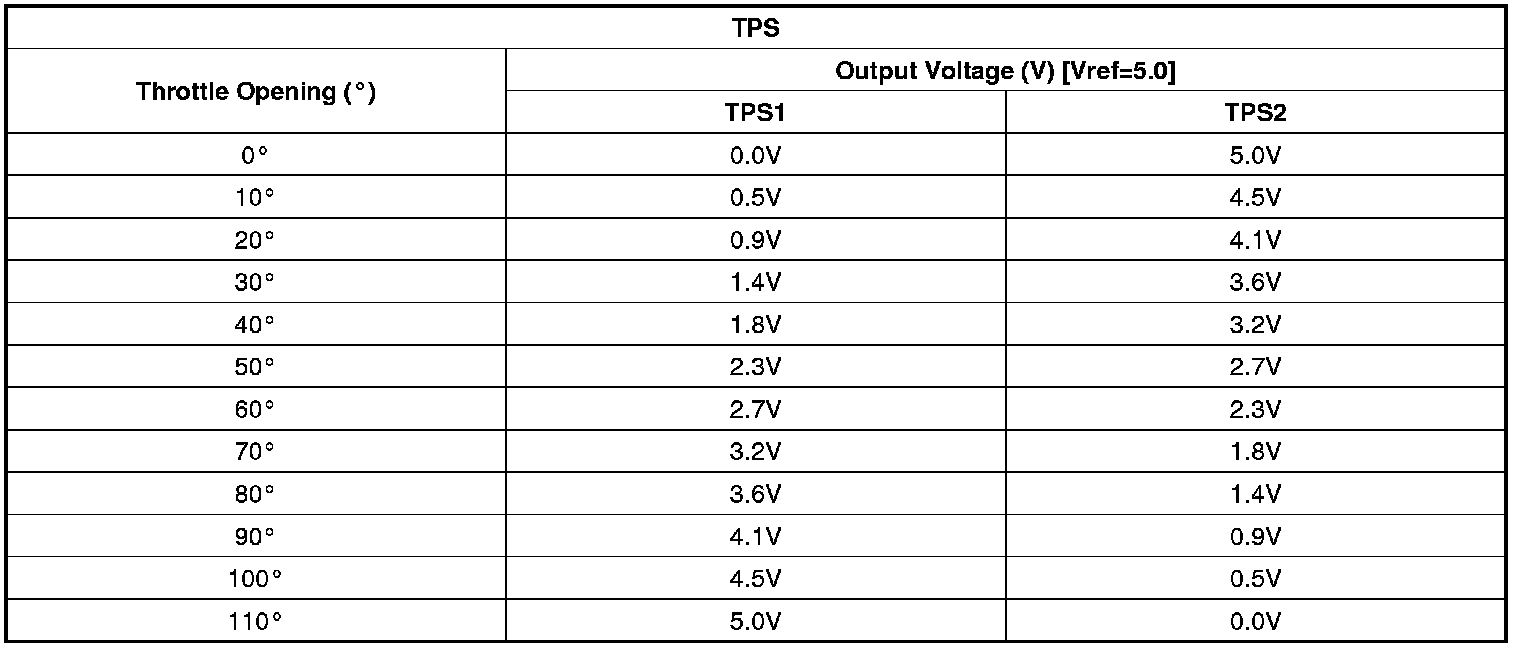

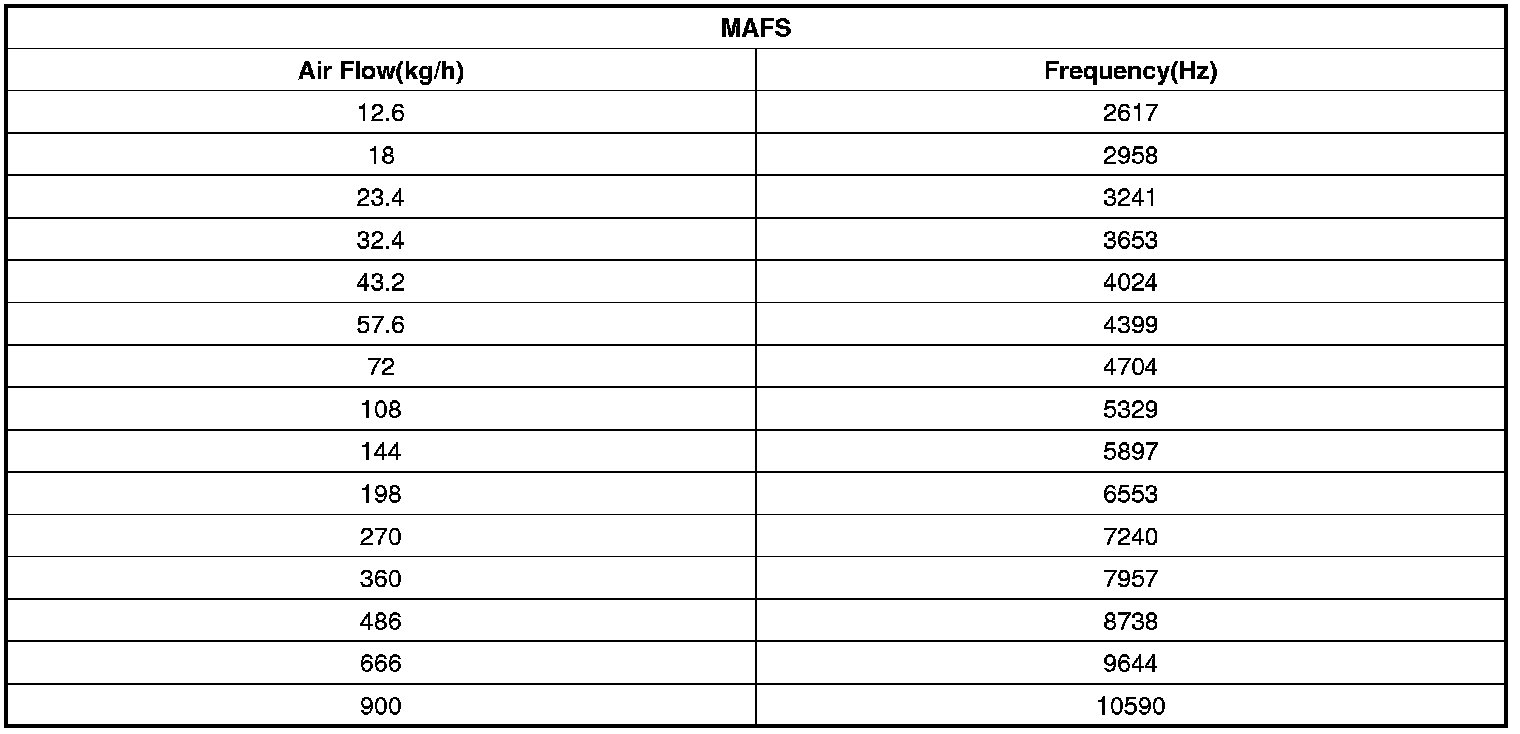

Specification
