W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.
3. Has a problem been found?






Power Circuit Inspection

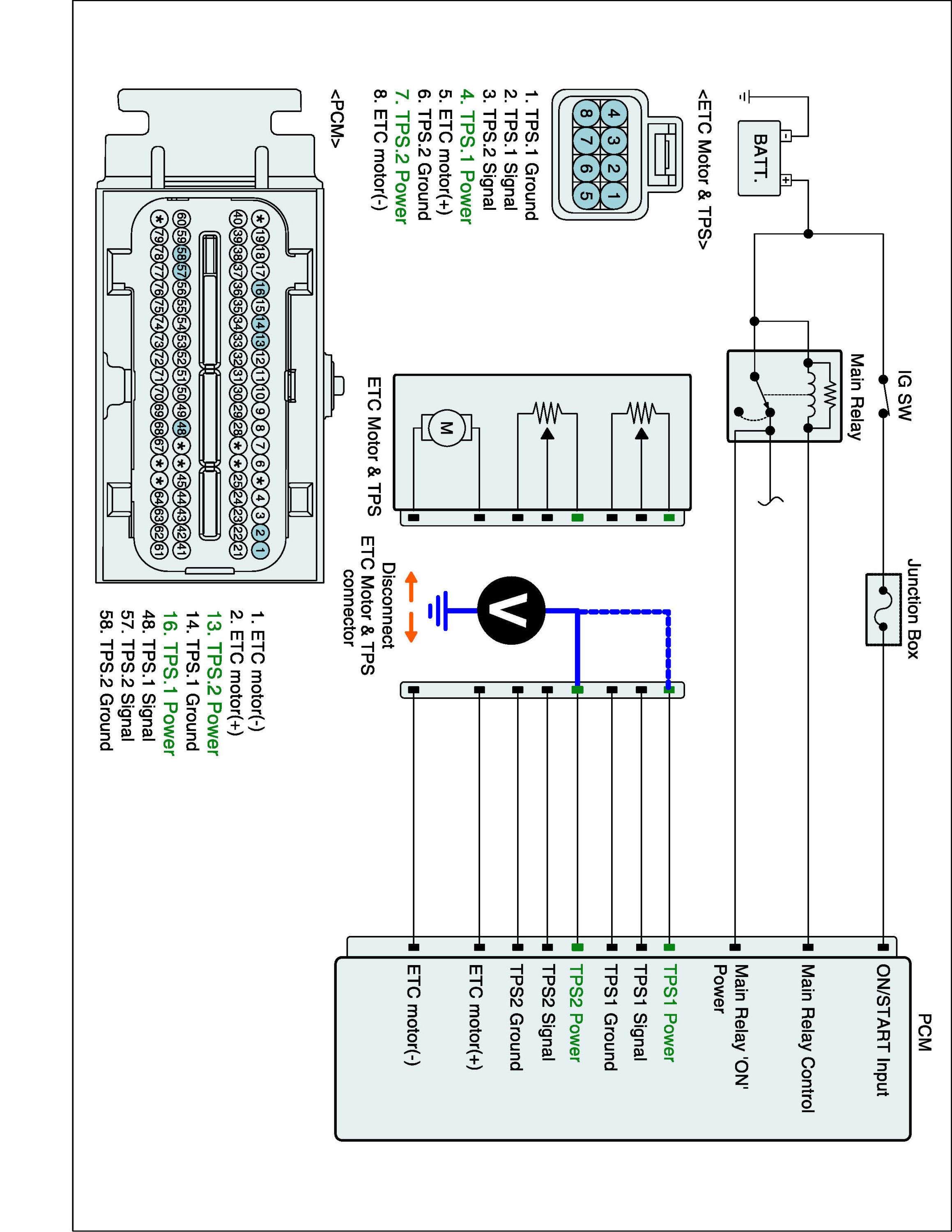

Check voltage
1. IG "OFF" and disconnect ETC Motor & TPS connector.
2. IG "ON".
3. Measure voltage between TPS power terminal of ETC Motor & TPS harness connector and chassis ground.

Specification : Approx. 5V





4. Is the measured voltage within specification?






Signal Circuit Inspection

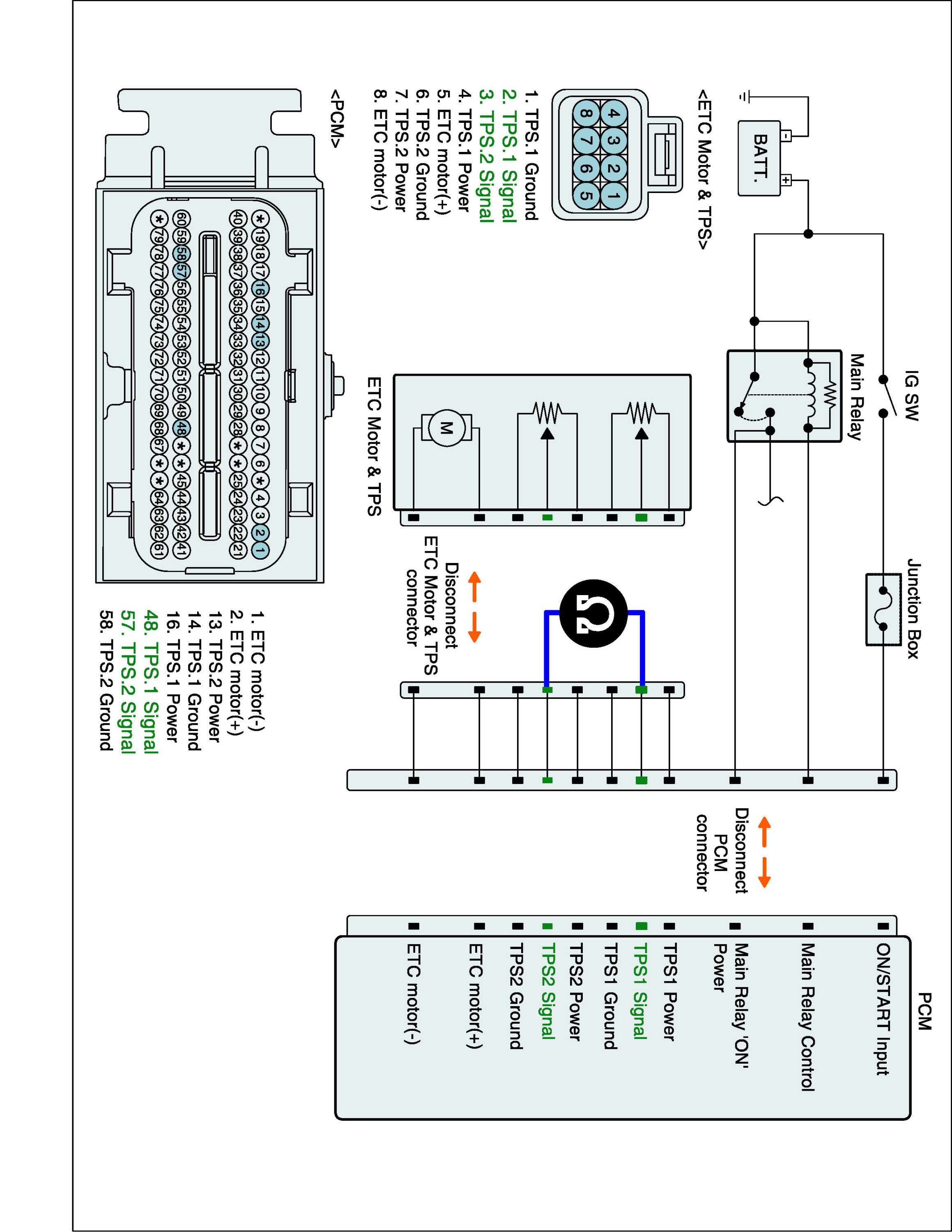

Check short in harness
1. IG "OFF" and disconnect ETC Motor & TPS connector and ECM connector.
2. Measure resistance between TPS1 signal and TPS2 signal terminals of ETC Motor & TPS harness connector.

Specification : Infinite





3. Is the measured resistance within specification?
