Component Inspection

Component Inspection

Check TPS
1. IG "ON"
2. Monitor signal waveform of TPS by stepping on and off the accelerator panel on scantool.

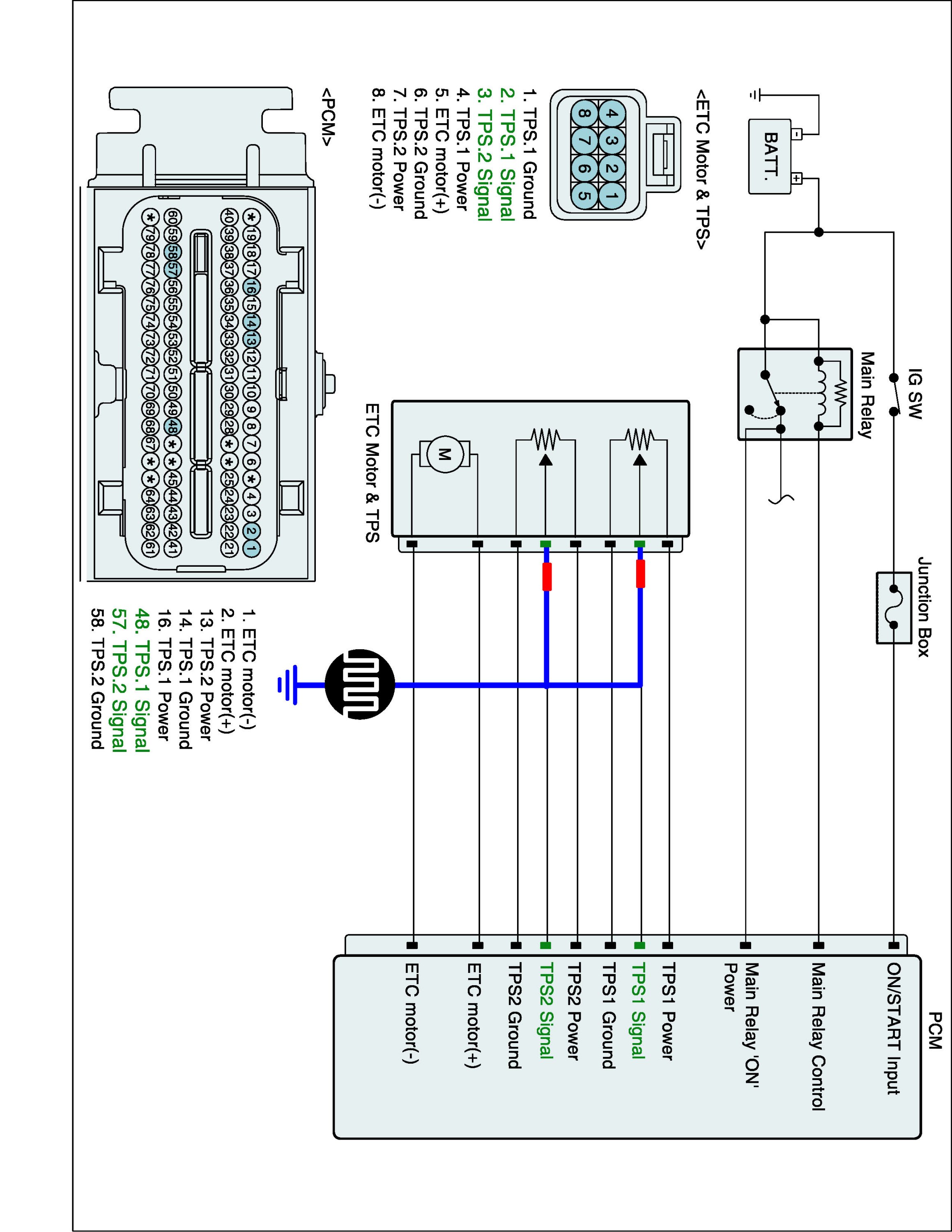

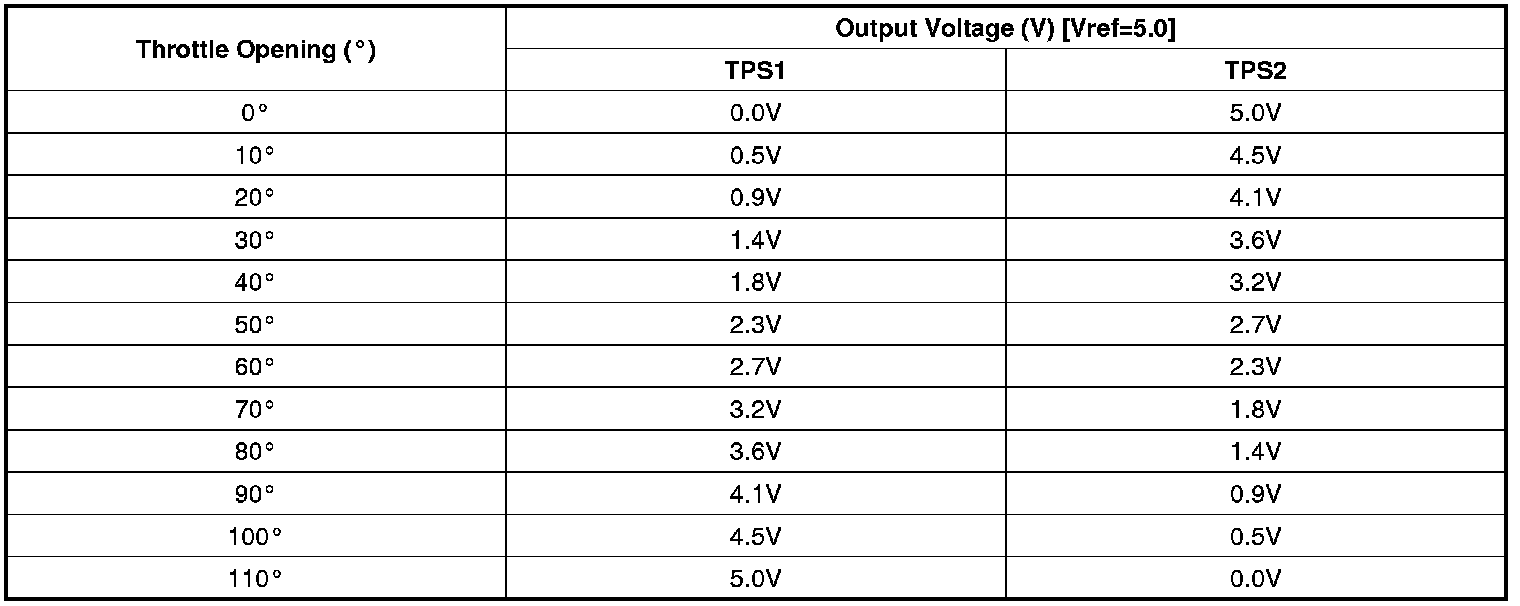

Specification :

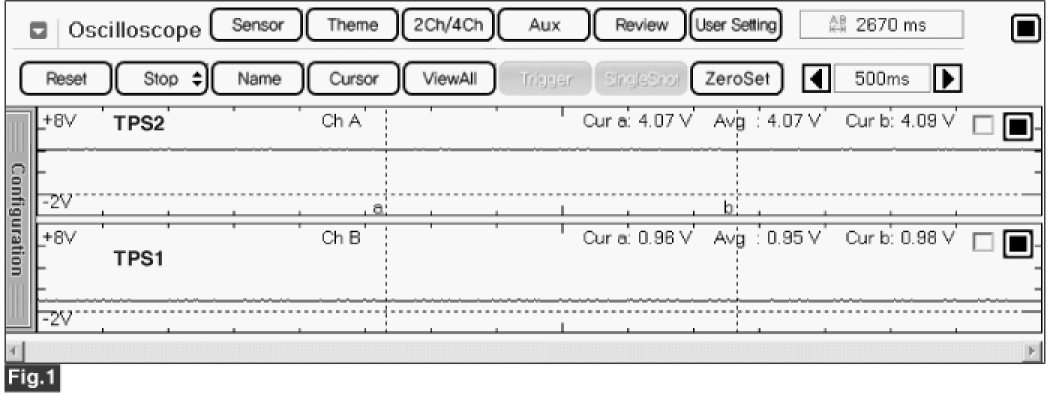

Fig.1) Normal waveform of TPS1 & TPS2 with no accel pedal depressed under IG ON condition

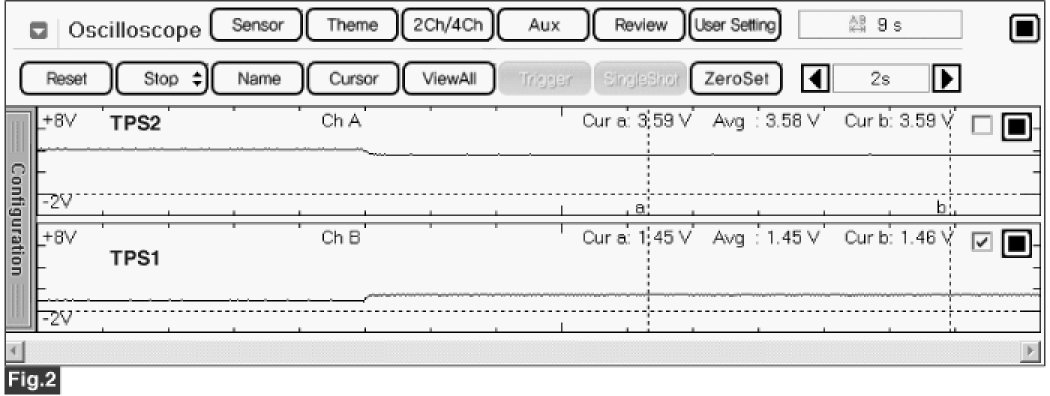

Fig.2) Normal waveform of TPS1 & TPS2 with accel pedal depressed under IG ON condition

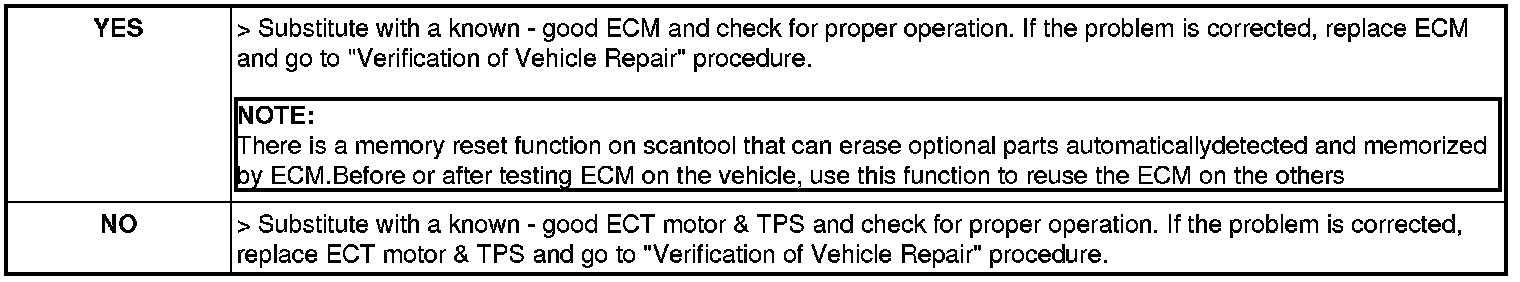

3. Is the measured resistance within specification?






** Procedure of ETS Initialization
A. Erase the trouble codes on ECM
B. Turn the ignition key off and keep this condition until the main relay is turned off. (It will take 10 sec.)
C. Turn ignition key on more than 1 second to record the throttle motor position on the EEPROM
