Check APS
1. IG "OFF" and install a scantool.
2. Connect probe to APS1 and APS2 to check signal waveform by using oscilloscope function.
3. Measure signal waveform of APS by pressing and depressing accelerator pedal.

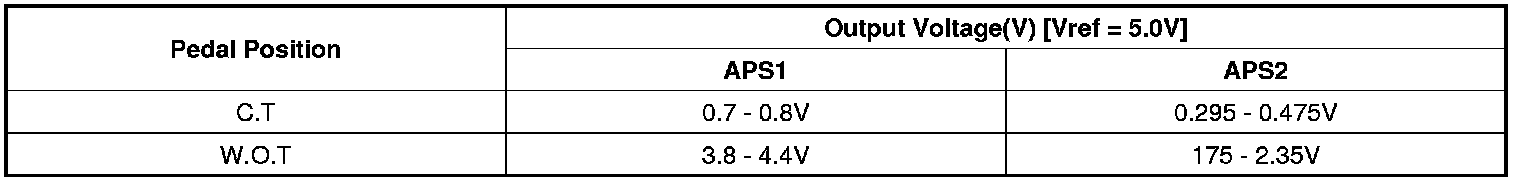

Specification : Signal waveform will be displayed as follows.









Fig.1) Normal waveform of APS1 & APS2 with acceleration

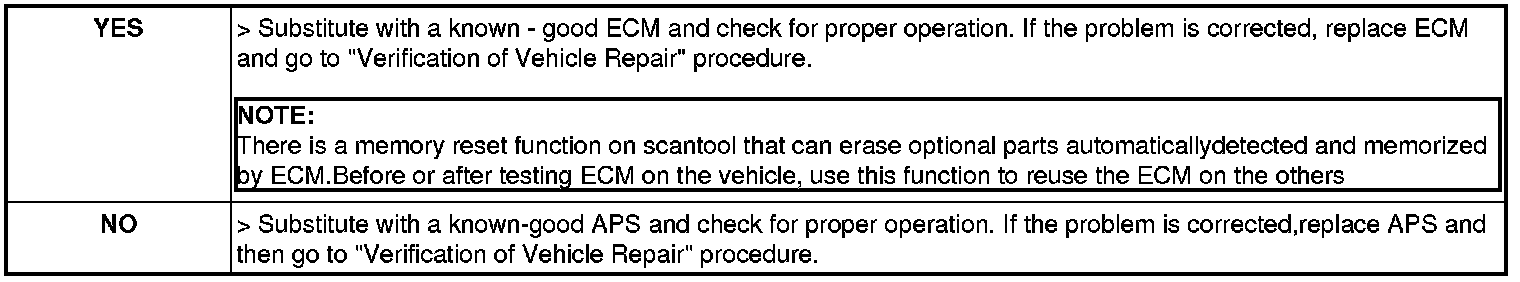

4. Is the measured resistance within specification?
