Scantool Diagnostics

Monitor Scantool data

1. Connect scantool to Data Link Connector (DLC).
2. IG "ON" & Engine "OFF"
3. Monitor the "KEY STATUS", "SMARTRA STATUS" and "ECU STATUS' Parameter on the Scantool.

Specification : 'LEARNT'





Fig.1) This data show that 3 keys have been taught, ECU has been learnt, Key in key cylinder has been learnt and SMARTRA3 has been learnt.

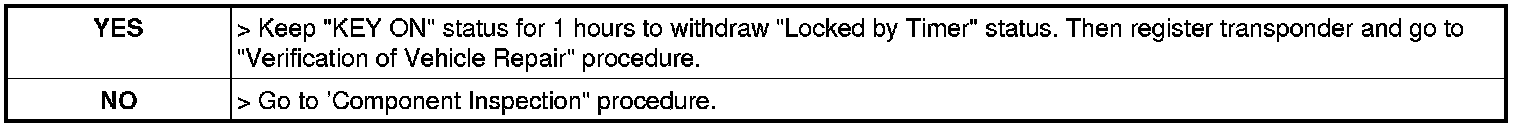

4. Has the "SMARTRA STATUS' been learnt?
