Scantool Diagnostics

Monitor Scantool Data

1. Check status
(1) IG "ON" & Engine "OFF"
(2) Monitor the "ECU, KEY and Smartra STATUS' Parameter on the Scantool.

Specification : 'LEARNT'





Fig.1) This data show that 3 keys have been taught, ECU has been learnt, Key in key cylinder has been learnt and SMARTRA3 has been learnt

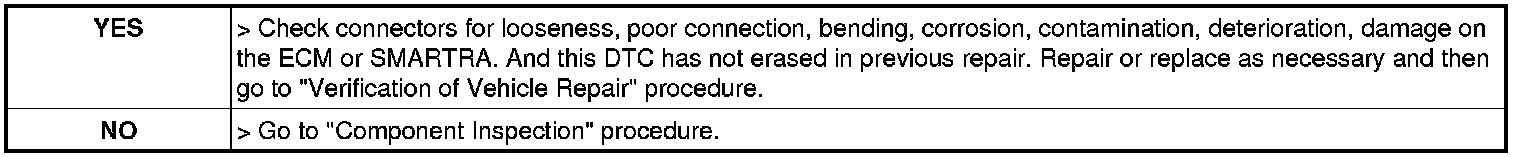

(3) Are "KEY STATUS", "SMARTRA STATUS" and "ECU STATUS' Parameter within specifications?
