Scantool Diagnostics

Monitor Scantool Data

1. Check transponder and ECU status
(1) IG "ON" & Engine "OFF"
(2) Monitor the "ECU, KEY and Smartra STATUS' Parameter on the Scantool.

Specification : 'LEARNT'

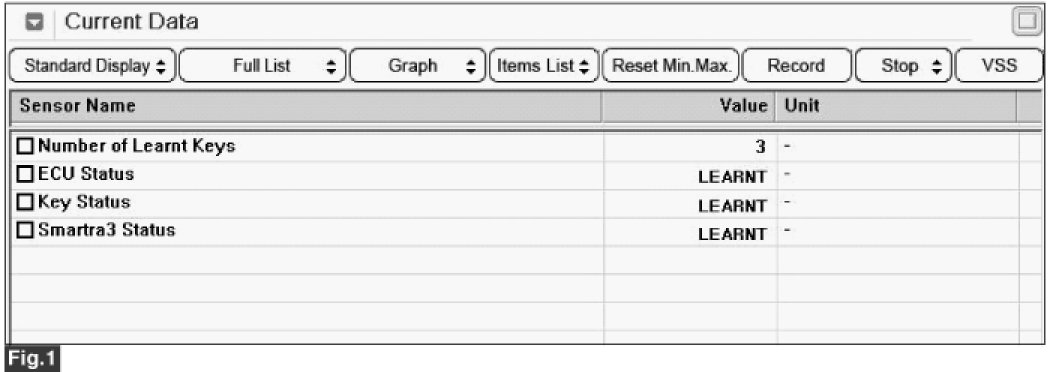

Fig.1) This data show that 3 keys have been taught, ECU has been learnt, Key in key cylinder has been learnt and SMARTRA3 has been learnt.
(3) Have both the ECM and KEY status been learnt?
