Component Inspection

Component Inspection

1. Check coil antenna.
(1) Ignition "OFF"
(2) Disconnect SMARTRA connector.
(3) Measure resistance between antenna coil (+) and (-) terminal of SMARTRA harness connector.

Specification : Approx 8.5 Ohms

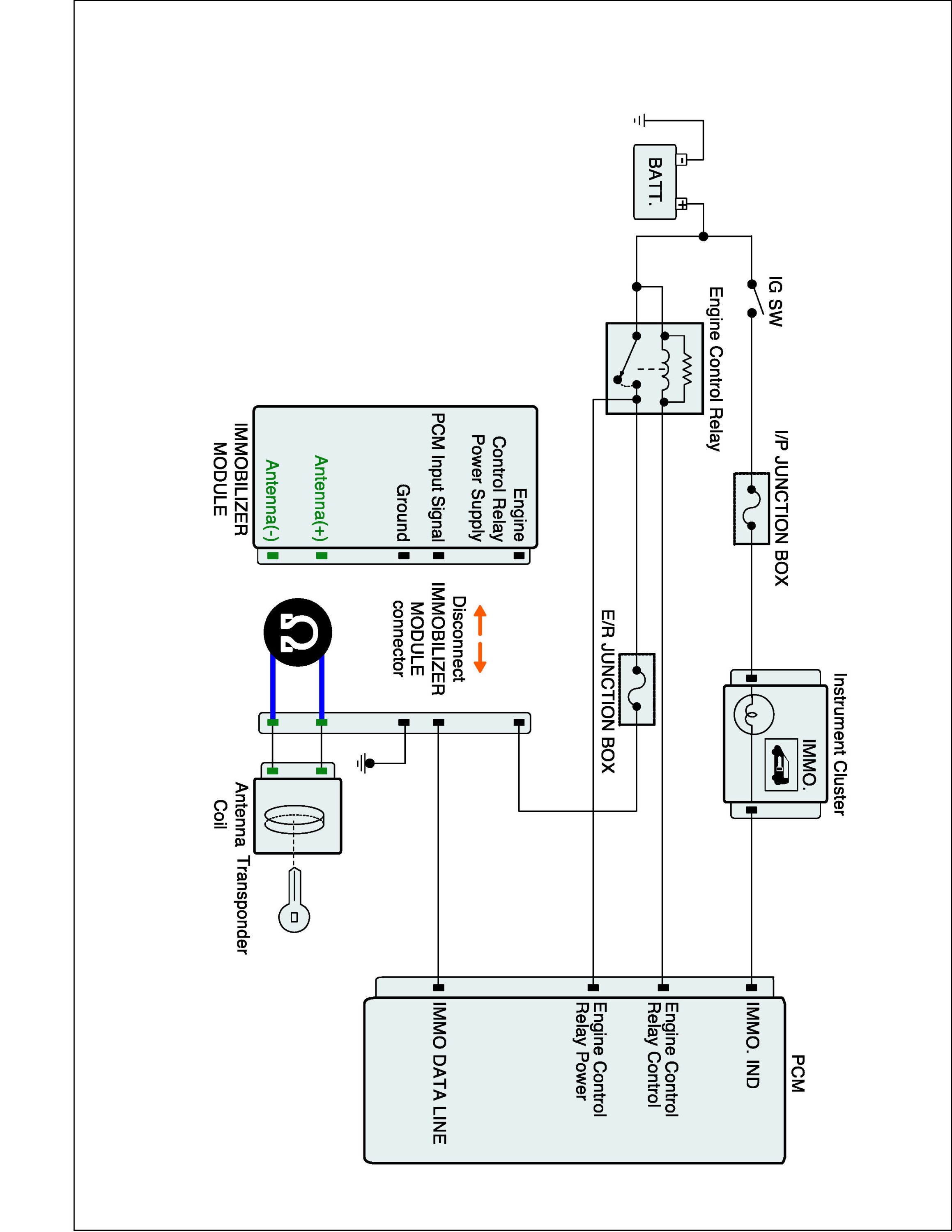

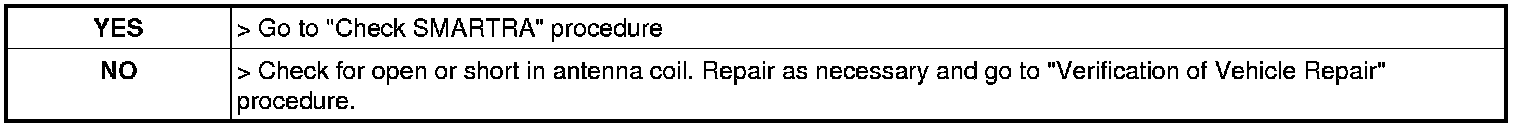

(4) Is the measured resistance within specifications?





2. Check SMARTRA
(1) IGN "ON" & Engine "OFF"
(2) Neutralize Both "SMARTRA" and "ECM" and Register transponder key by scantool.

NOTE:
Pin code is required to Neutralize SMARTRA and to Register transponder key.

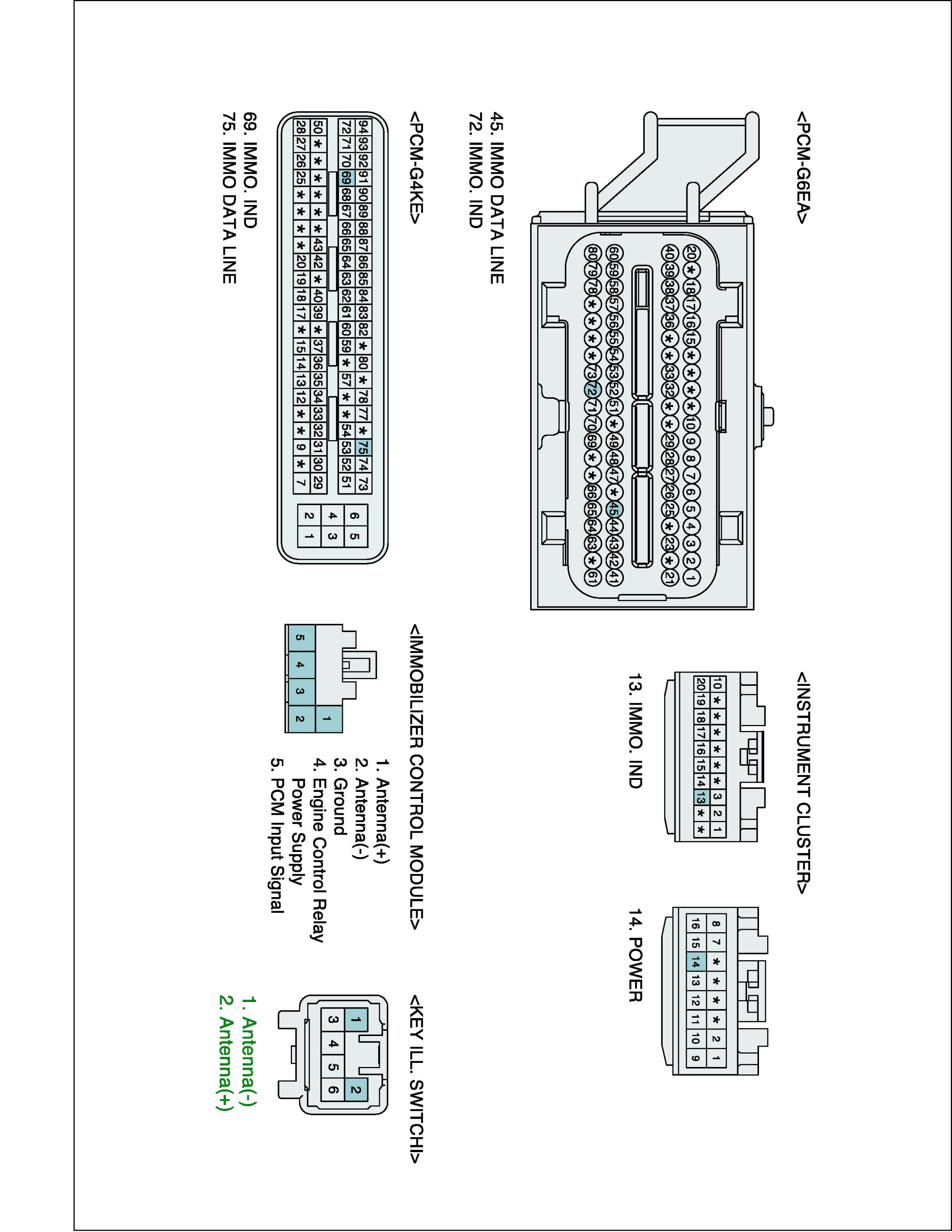

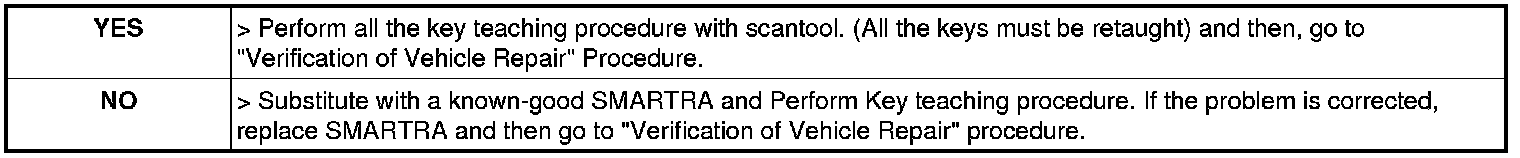

(3) Are Neutralizing and Registering completed normally?
