Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. IG "ON" & Engine "OFF"
3. Monitor the "ECU, KEY and Smartra STATUS" Parameter on the Scantool.

Specification : 'LEARNT'





Fig.1) This data show that 3 keys have been taught, ECU has been learnt, Key in key cylinder has been learnt and SMARTRA3 has been learnt.

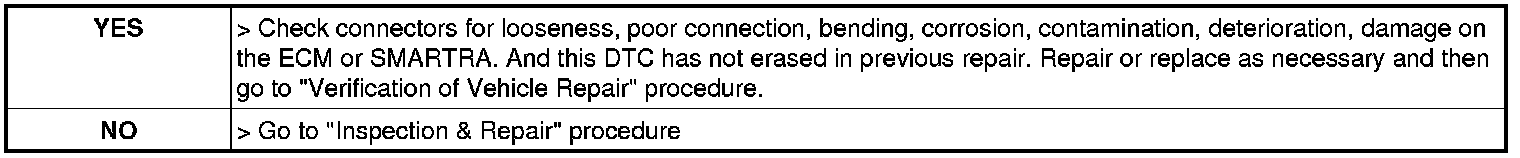

4. Has the "Smartra STATUS' been learnt?
