Component Inspection

Component Inspection

1. Check SMARTRA
(1) IGN "ON" & Engine "OFF"
(2) Neutralize Both "SMARTRA" and "ECM" and Register transponder key by scantool.

NOTE:
Pin code is required to Neutralize SMARTRA and to Register transponder key

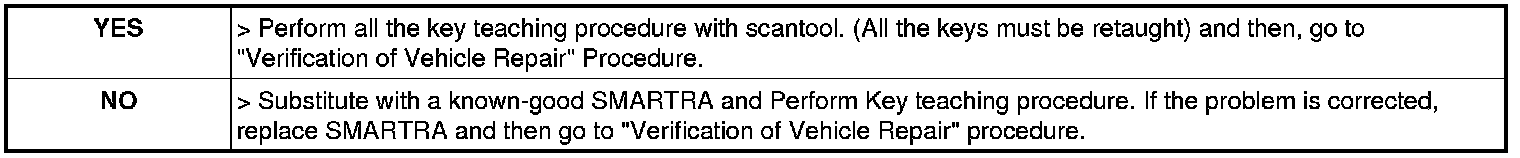

(3) Are Neutralizing and Registering completed normally?
