Scantool Diagnostics

Monitor Scantool Data

1. Check status
(1) IGN "ON" & Engine "OFF"
(2) Monitor the "ECM Status" Parameter on the Scantool.

Specification : 'LEARNT'





Fig.1) This data show that 3 keys have been taught, ECU has been learnt, Key in key cylinder has been learnt and SMARTRA3 has been learnt.

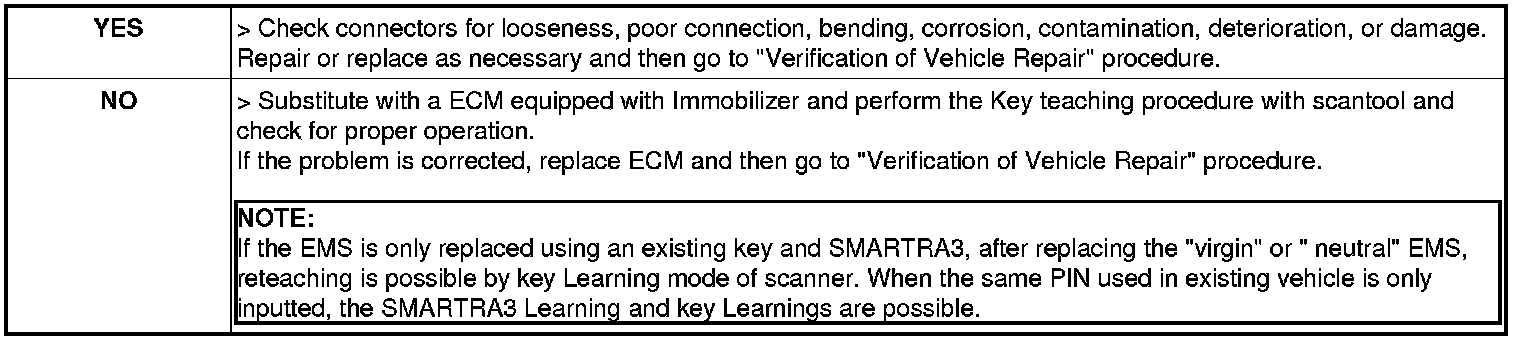

(3) Has the ECM been learnt?
