System Inspection

System Inspection

Visual Inspection
1. IG "OFF".
2. Check throttle valve after removing air duct.
- Carbon deposit.
- Throttle icy
- Broken return spring.
- Throttle sticky

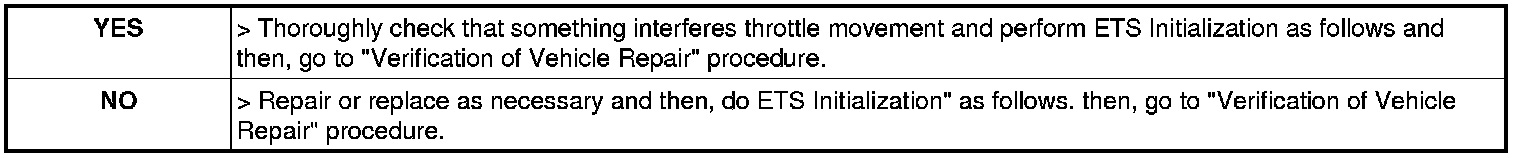

3. Is the throttle valve return O.K?





** Procedure of ETS Initialization
A. Erase the trouble codes on ECM
B. Turn the ignition key off and keep this condition until the main relay is turned off. (It will take 10 sec.)
C. Turn ignition key on more than 1 second to record the throttle motor position on the EEPROM
