Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to DLC (Data Link Connector)
2. IG "ON" & Monitor that any different DTC (Diagnostic Trouble Code) is existed.
(There will be at least one more DTC which causes this DTC P1295 to retrieve)
3. Repair the DTCs cause DTC P1295 first according to the designated trouble shooting guide.
(After repairing the DTCs cause DTC P1295, don't forget to do "ETC Initialization" as follows.)

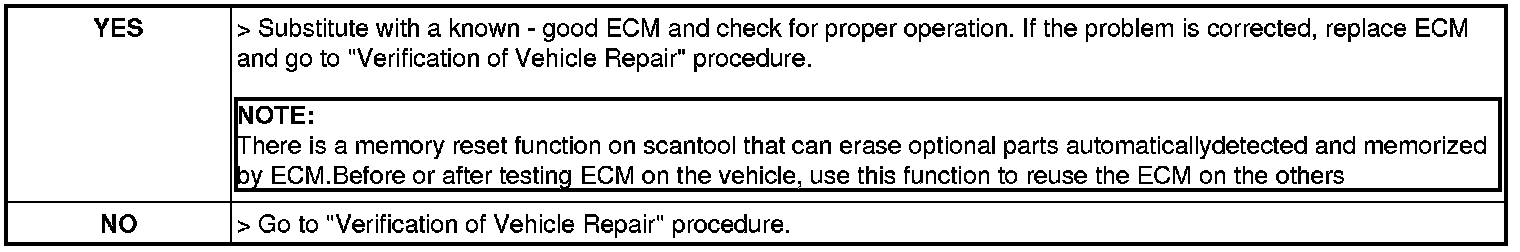

4. Is the same DTC occurred?






** Procedure of ETS Initialization
A. Erase the trouble codes on ECM
B. Turn the ignition key off and keep this condition until the main relay is turned off. (It will take 10 sec.)
C. Turn ignition key on more than 1 second to record the throttle motor position on the EEPROM
