Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".
3. Monitor the "RED SOL. VALVE" parameter on the scantool
4. Shift gear position

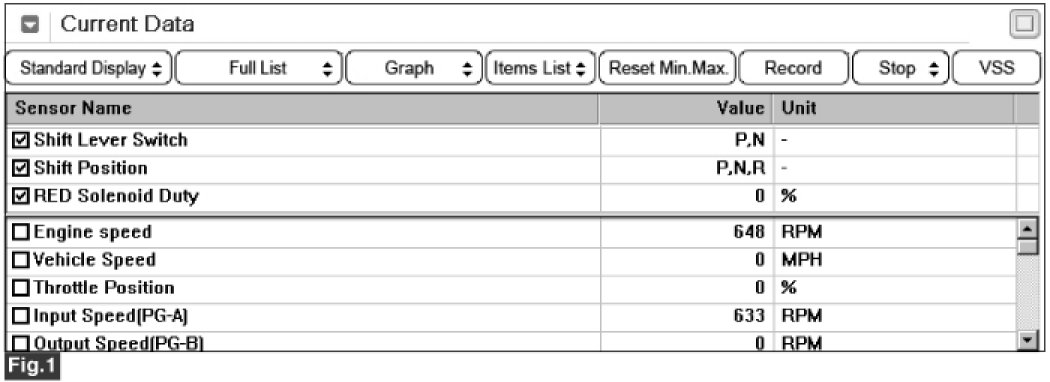

Fig 1) "R"
Fig 2) P,N
Fig 3) "D 1st" gear

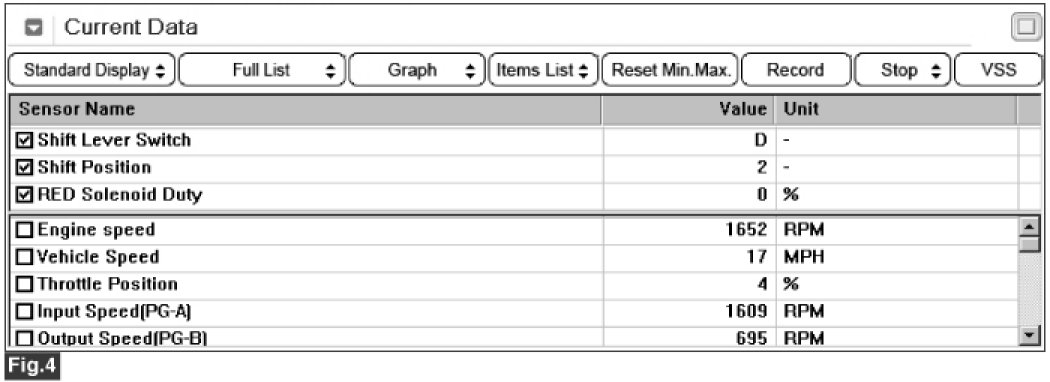

Fig 4) "2nd" gear
Fig 5) "3rd" gear
Fig 6) "4th" gear

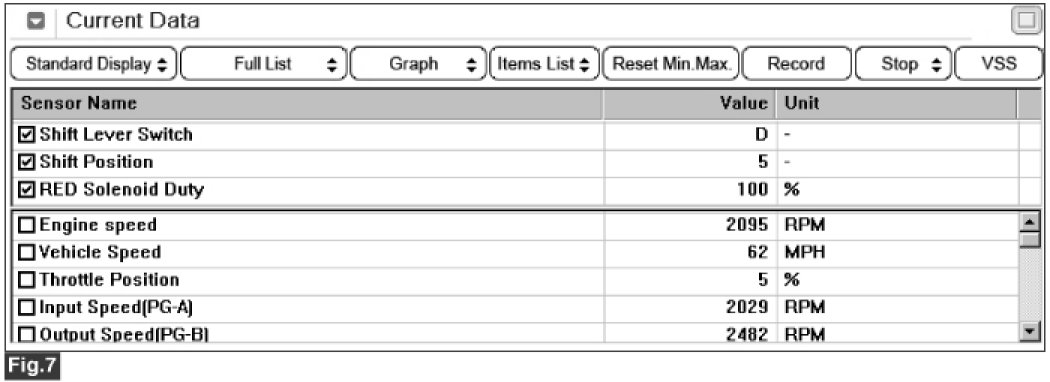

Fig 7) "5th" gear
5. Is "RED SOLENOID DUTY" within specifications?
