Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".
3. Monitor the "OD SOL. VALVE" parameter on the scantool.
4. Shift gear position.

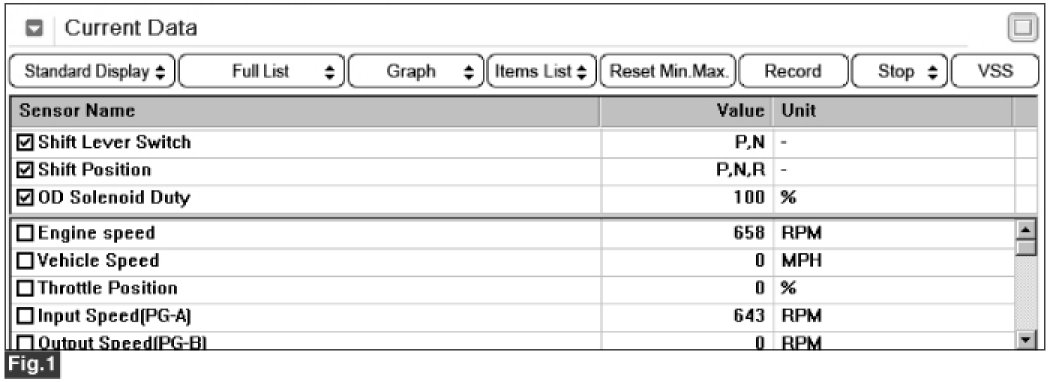

Fig 1) P,N

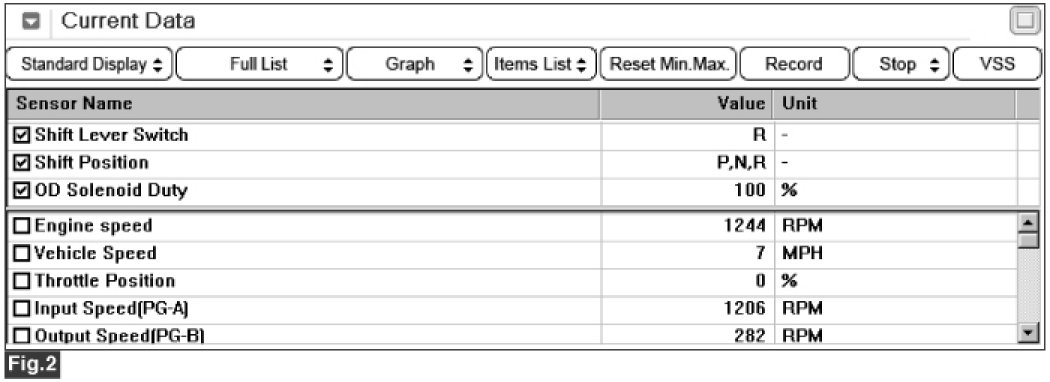

Fig 2) "R"
Fig 3) "D 1st" gear

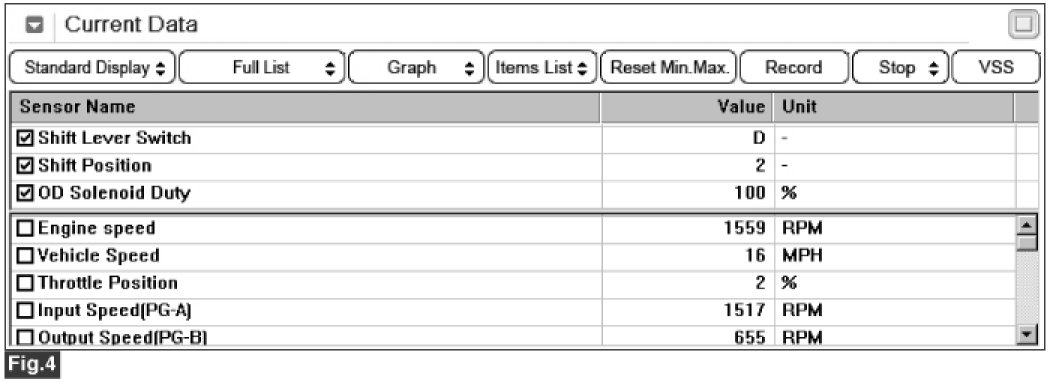

Fig 4) "2nd" gear
Fig 5) "3rd" gear

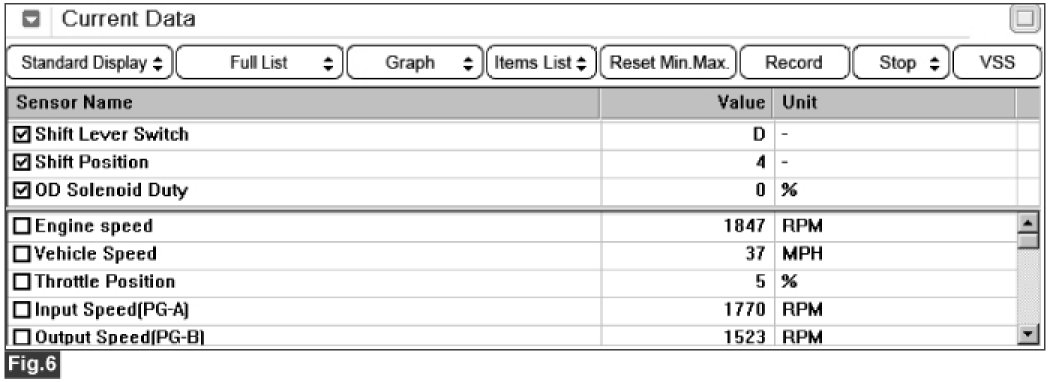

Fig 6) "4th" gear

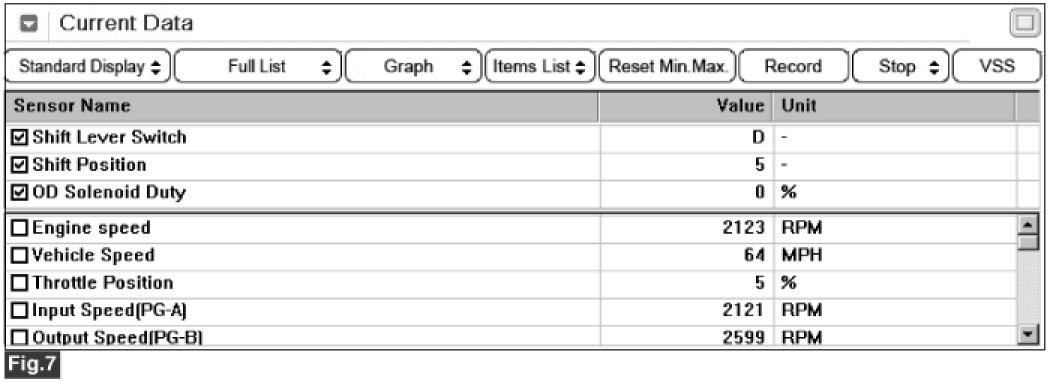

Fig 7) "5th" gear
5. Does "OD SOLENOID DUTY" follow the referance data?
