W/Harness Inspection





Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.
3. Has a problem been found?

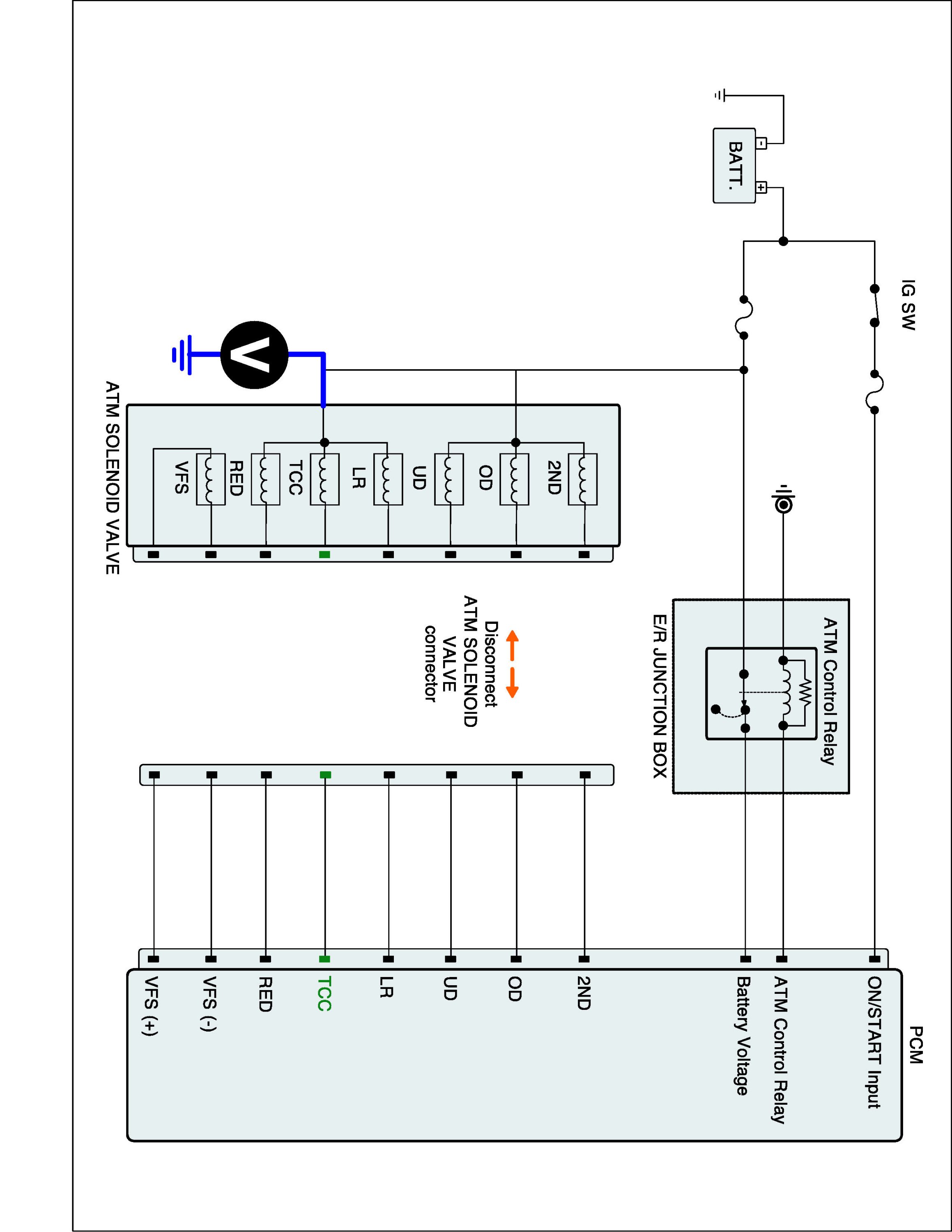

Power Circuit Inspection

1. Ignition "ON" & Engine "OFF".
2. Disconnect "A/T SOLENOID VALVE" connector.

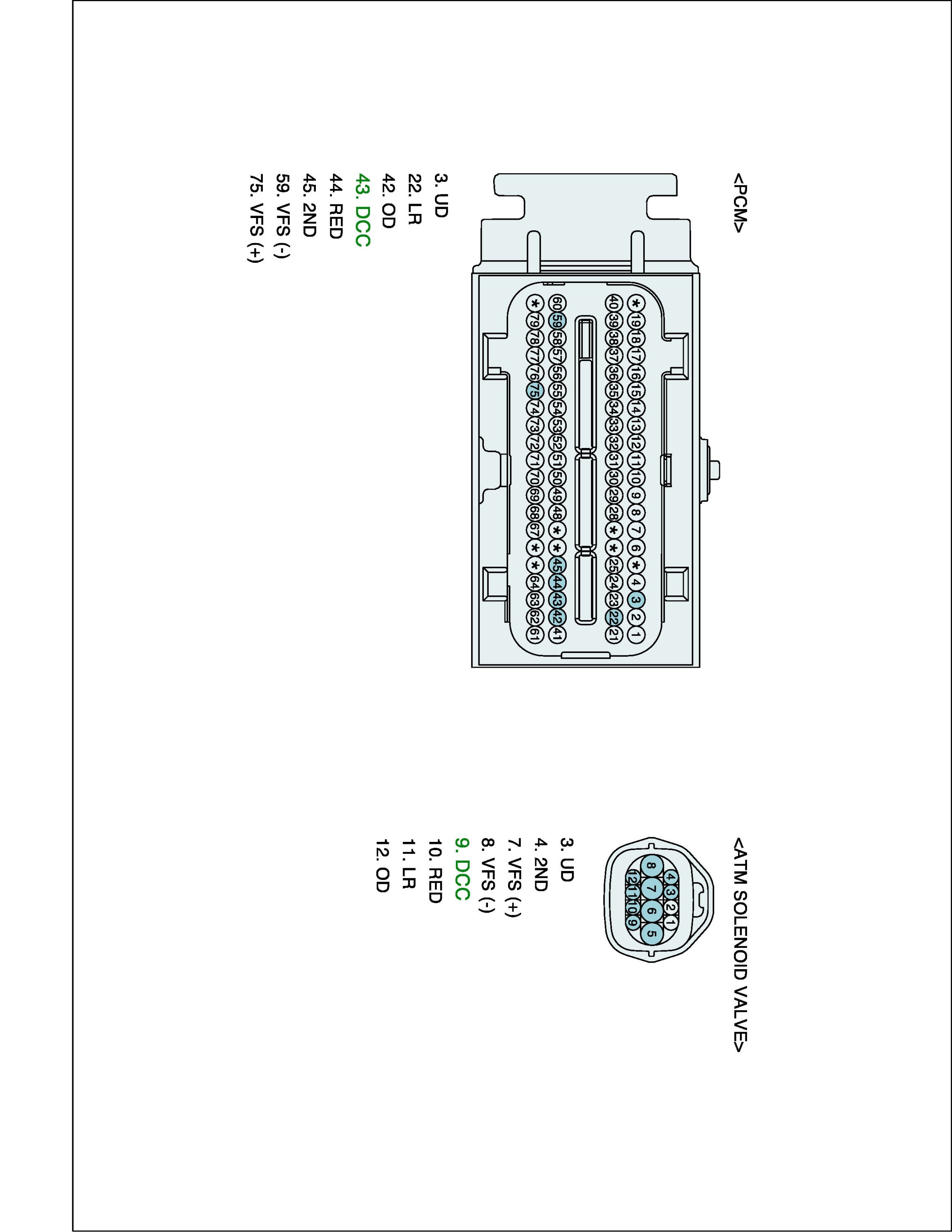

3. Measure the voltage between Power supply terminal to LR solenoid valve of the ATM SOLENOID VALVE harness and chassis ground.

Specification : 12V is measured only for approx. 0.5 sec

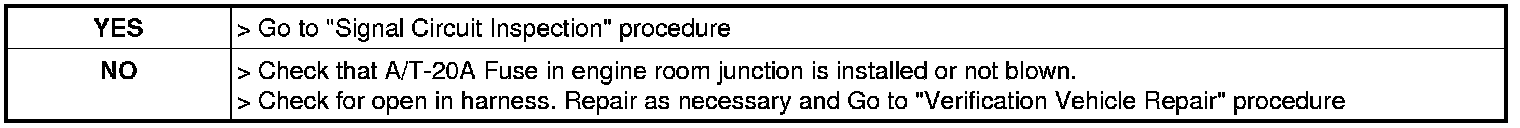

4. Is voltage within specifications?






Signal Circuit Inspection

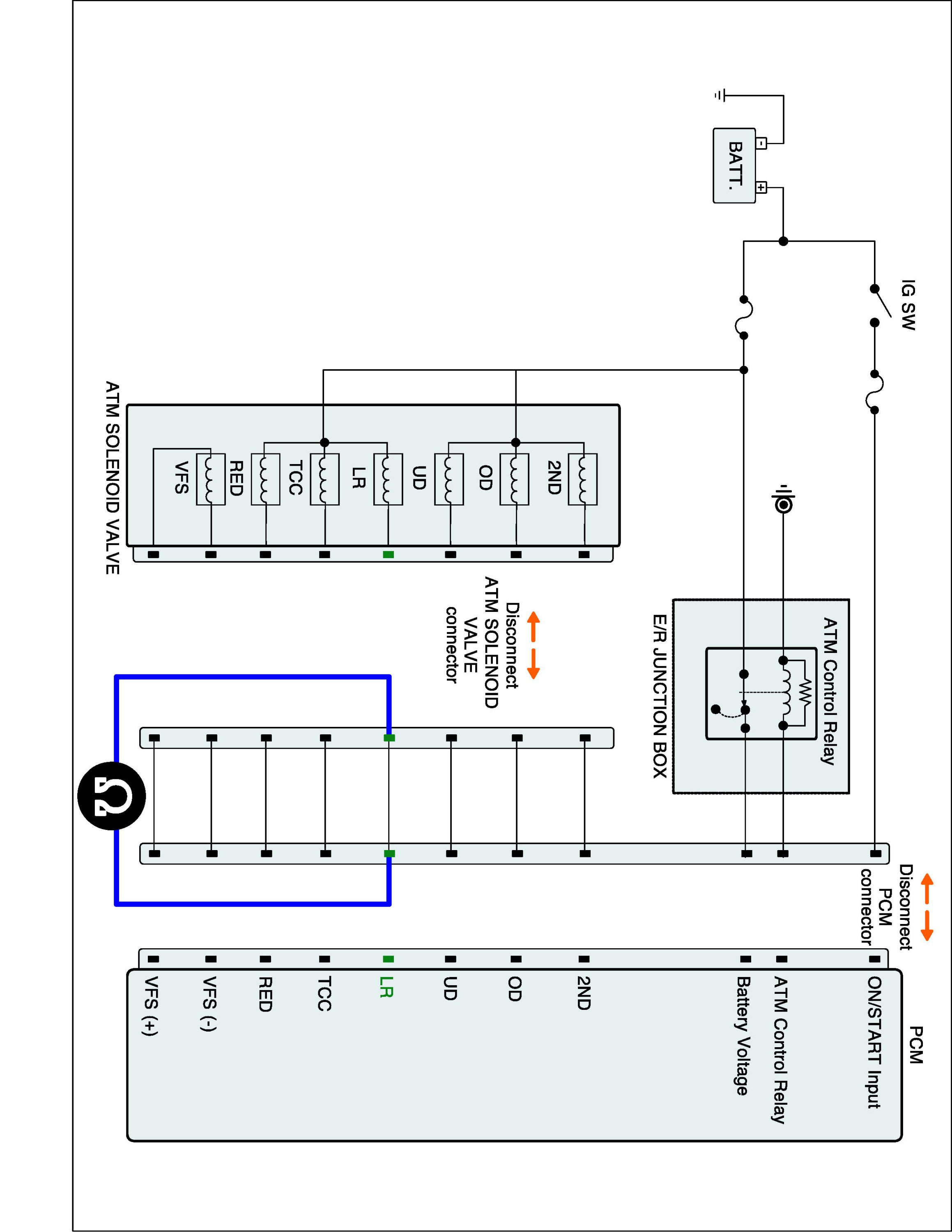

Check Signal Circuit Open Inspection
1. Ignition "OFF".
2. Disconnect "A/T SOLENOID VALVE" connector and "PCM/TCM" connector
3. Measure resistance between "LR SOLENOID VALVE" terminal of the ATM SOLENOID VALVE harness connector and LR SOLENOID VALVE" terminal of the PCM/TCM harness connector.

Specification : Approx. 0 Ohm









4. Is resistance within specifications?

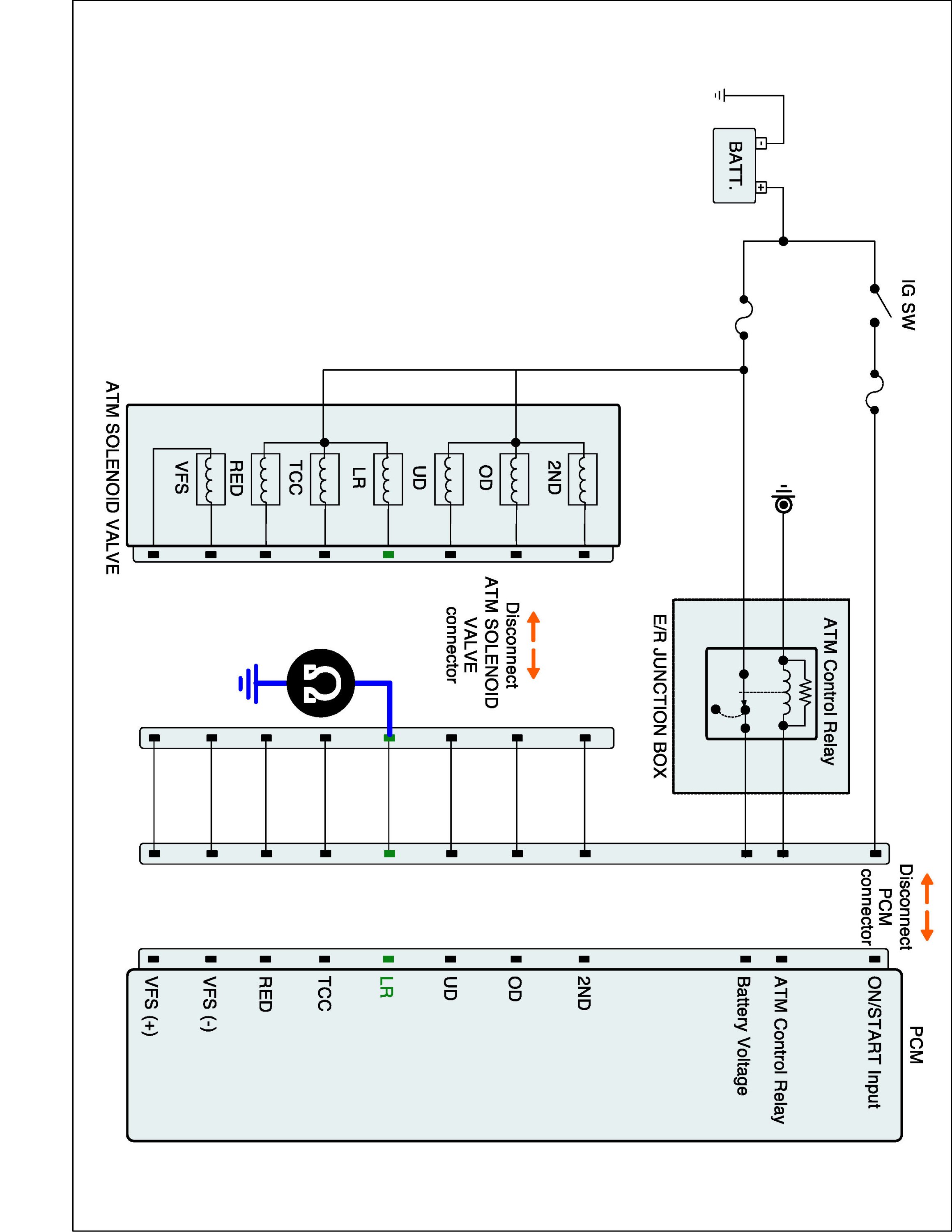

Check Signal Circuit Short Inspection
1. Ignition "OFF"".
2. Disconnect "A/T SOLENOID VALVE" connector and "PCM/TCM" connector
3. Measure resistance between "LR SOLENOID V/V" terminal of the ATM SOLENOID VALVE harness and chassis ground.

Specification : Infinite









4. Is resistance within specifications?
