Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".
3. Monitor the "PRESS CONTROL SOL. VALVE" parameter on the scantool.
4. Shift gear at each position.

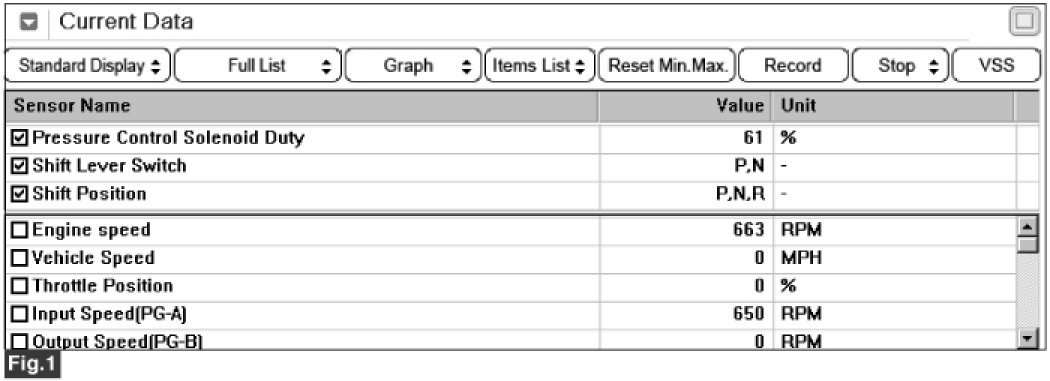

Fig 1) P,N

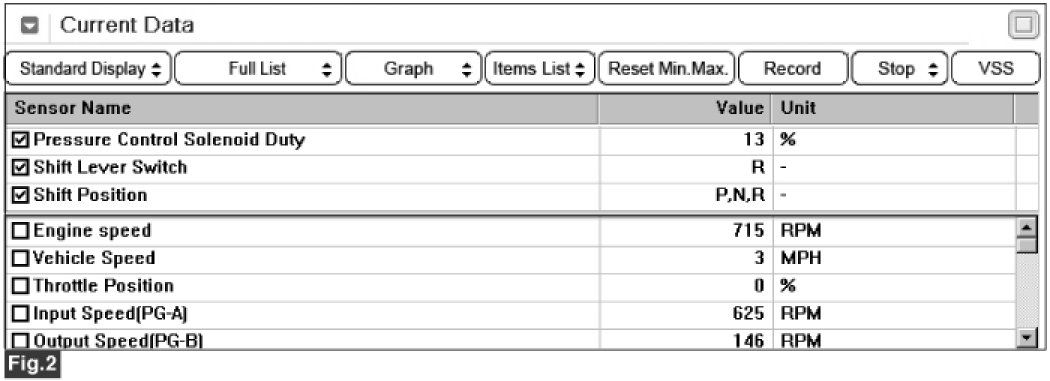

Fig 2) "R"

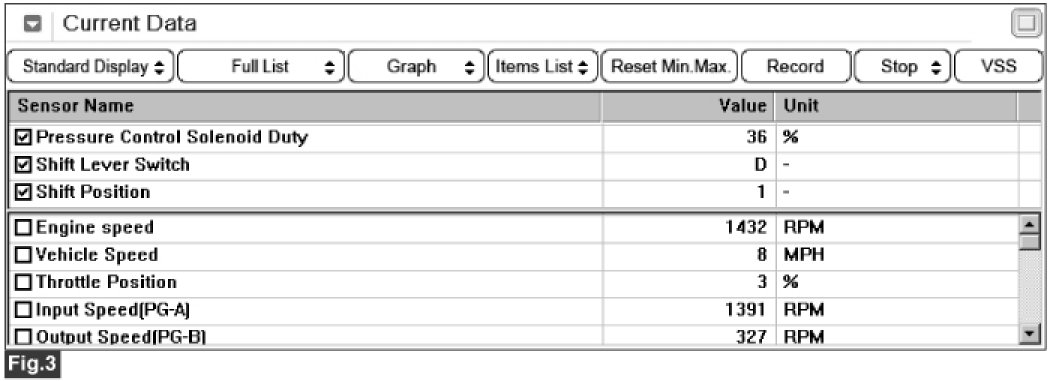

Fig 3) "D 1st" gear
Fig 4) "2nd" gear
Fig 5) "3rd" gear

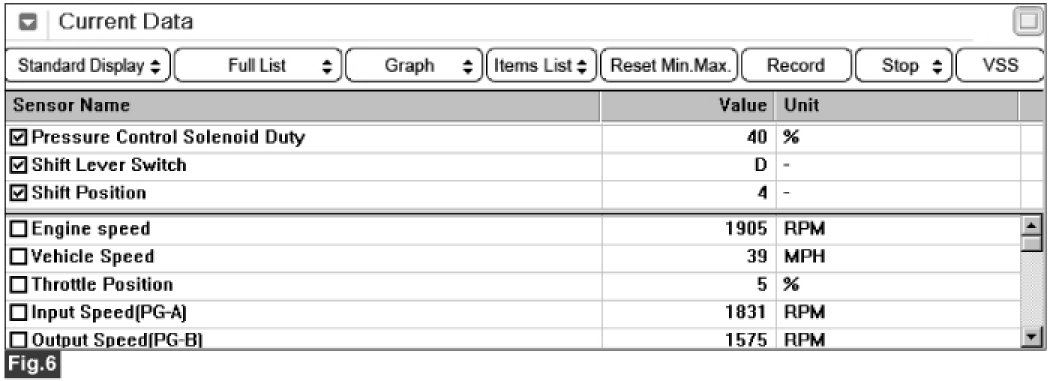

Fig 6) "4th" gear

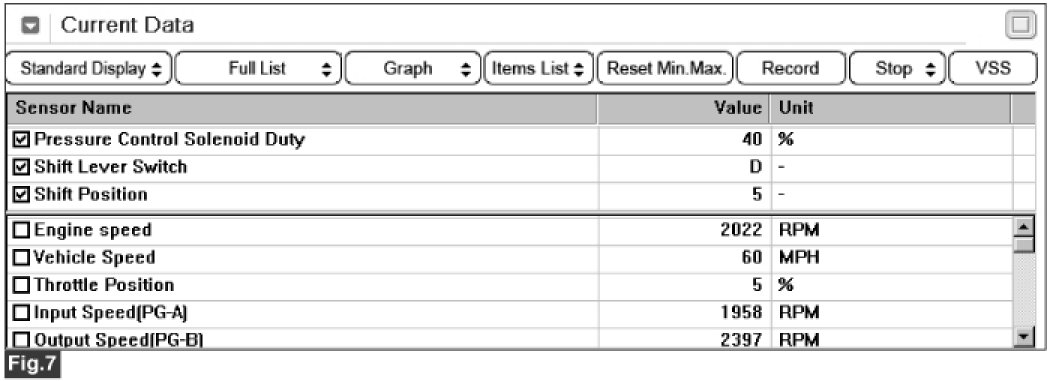

Fig 7) "5th" gear
5. Does "PRESS CONTROL SOL DUTY" follow the referance data?
