Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".
3. Monitor the "TCC SOL. VALVE" parameter on the scantool
4. Select "D RANGE" and Operate "TCC SOLENOID DUTY" more than 80%

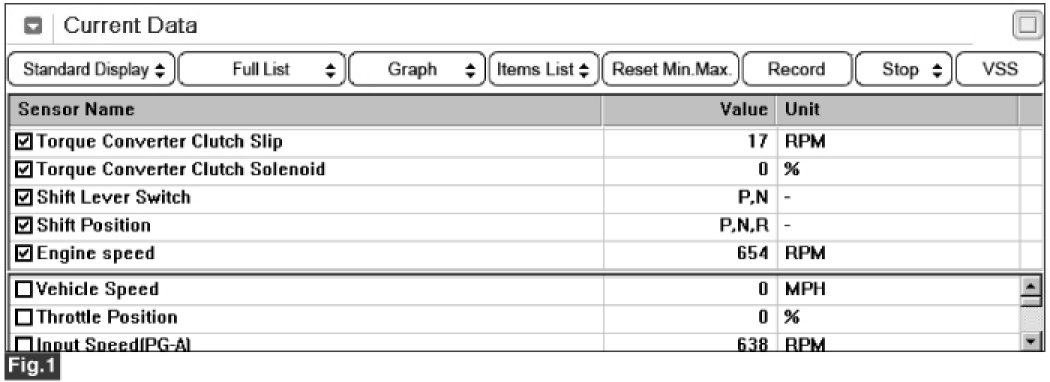

Fig 1) P,N

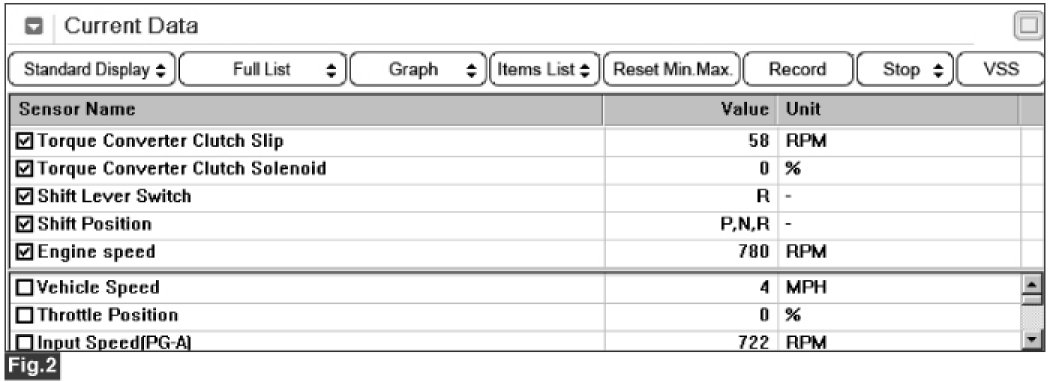

Fig 2) "R"

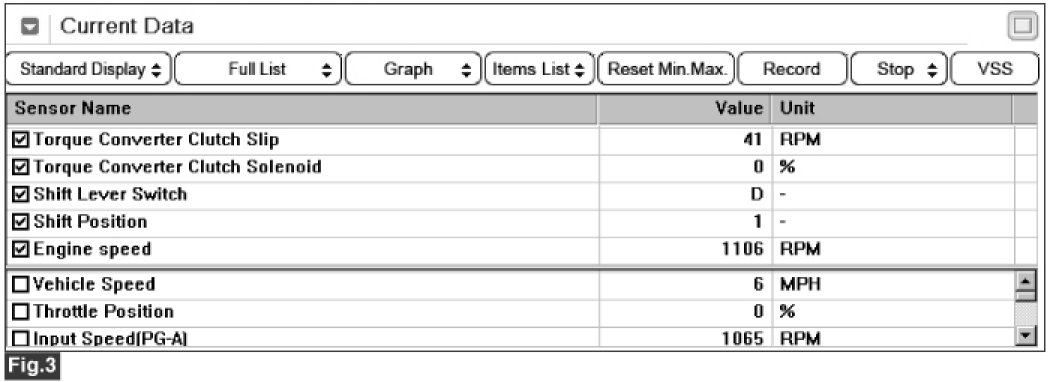

Fig 3) "D 1st" gear

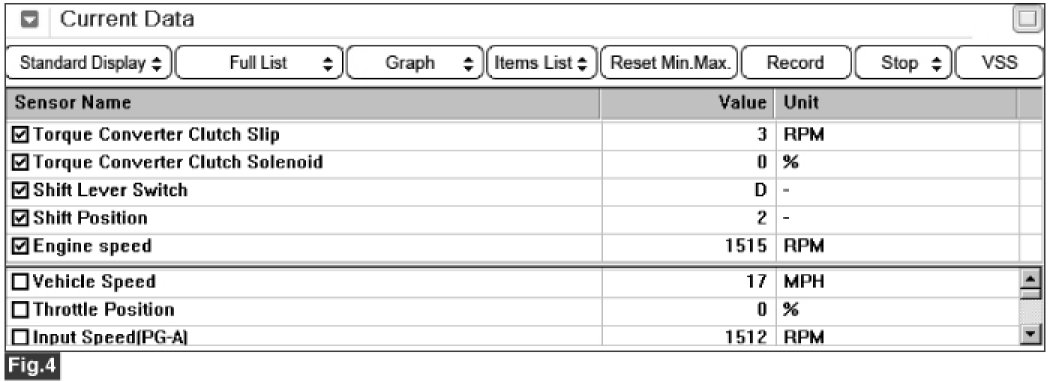

Fig 4) "2nd" gear

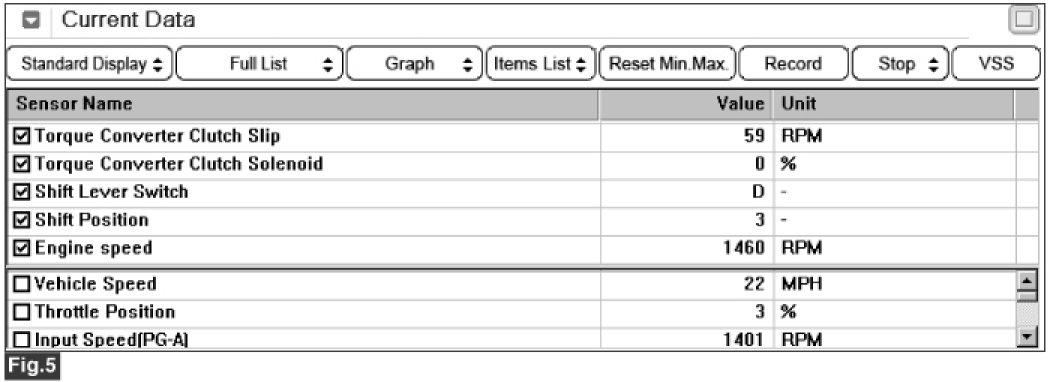

Fig 5) "3rd" gear

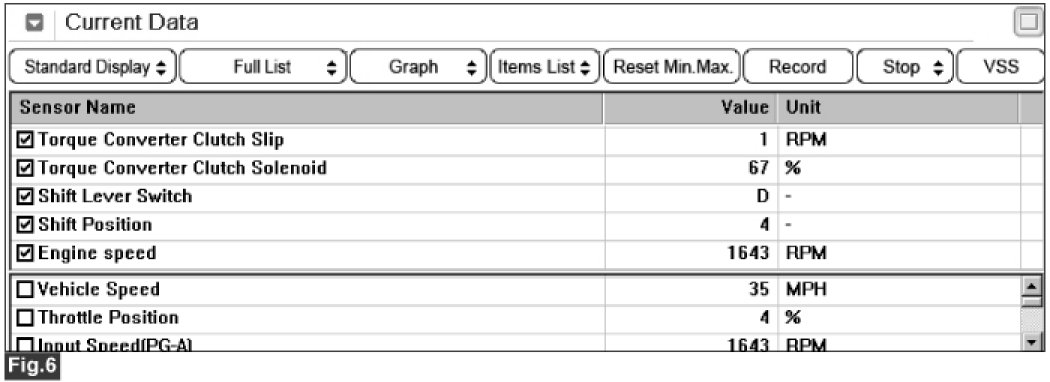

Fig 6) "4th" gear

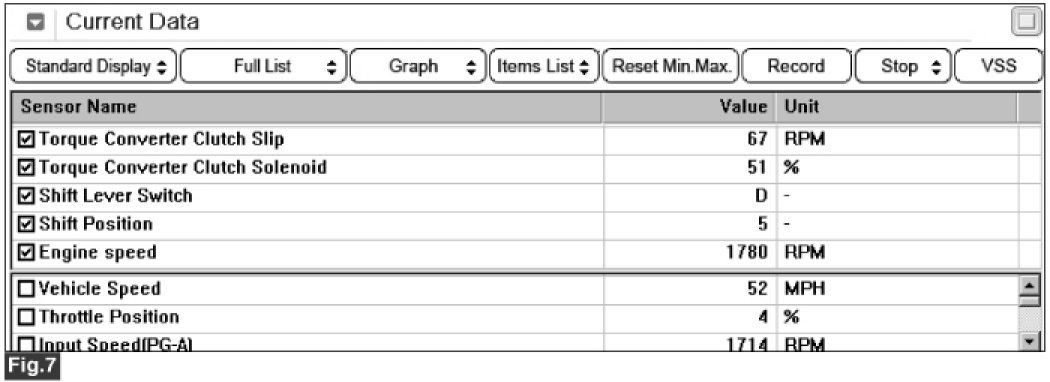

Fig 7) "5th" gear
5. Does "TCC SOLENOID DUTY" follow the referance data?
