General Information

Component Location





General Description

The value of the input shaft speed should be equal to the value of the output shaft speed, when multiplied by the 4th gear ratio, while the transaxle is engaged in the 4th gear. For example, if the output speed is 1,000 rpm and the 4th gear ratio is 1.233, then the input speed is 1,233 rpm.

DTC Description

This code is set if the value of input shaft speed is not equal to the value of the output shaft, when multiplied by the 4th gear ratio, while the transaxle is engaged in 4th gear. This malfunction is mainly caused by mechanical troubles such as control valve sticking or solenoid valve malfunctioning rather than an electrical issue.

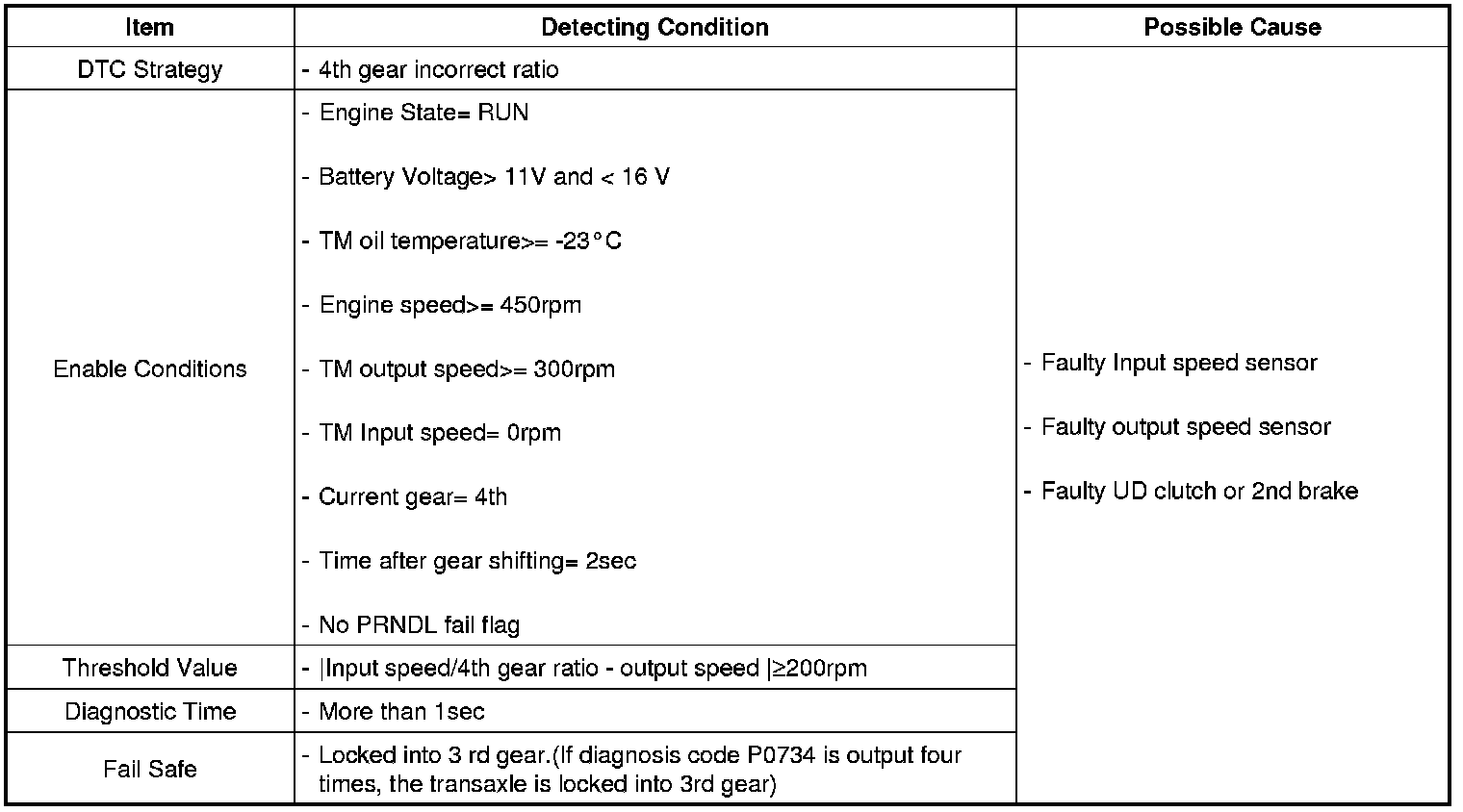

DTC Detecting Condition





Signal Waveform & Data








Fig 1) INPUT/OUTPUT SIGNAL -> LOW SPEED
Fig 2) INPUT/OUTPUT SIGNAL -> HIGH SPEED
