Component Inspection

Component Inspection

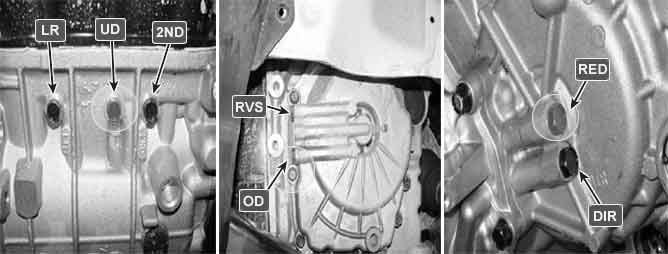

1. Connect Oil pressure gauge to "UD" and "OD" and "RED" port.
2. Engine "ON".
3. Drive a car with gear position 3 in "SPORTS MODE".
4. Compare it with referance data as below.

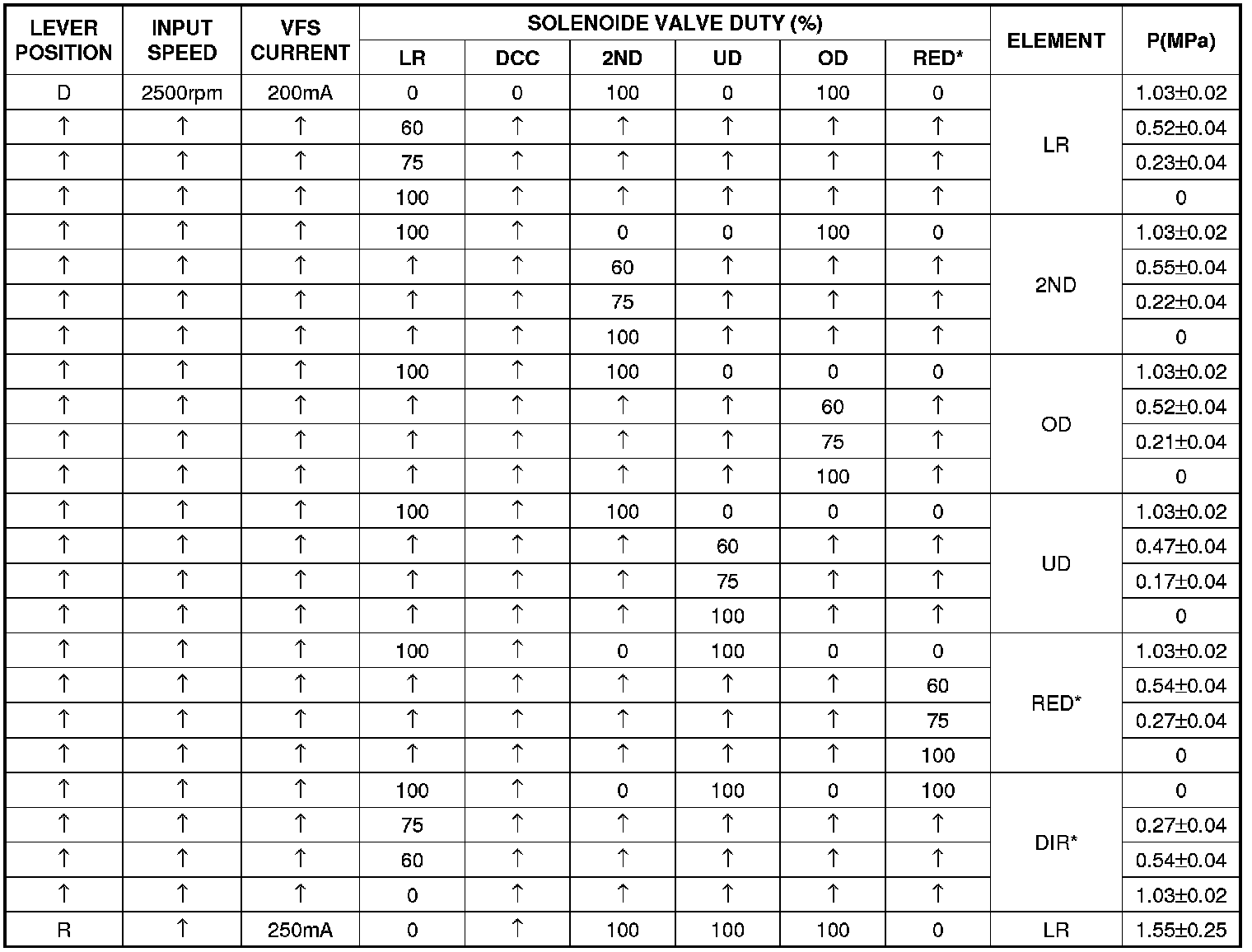

Specification : refer to Standard Oil Pressure Table as below






** The values are subject to change according to vehicle model or condition

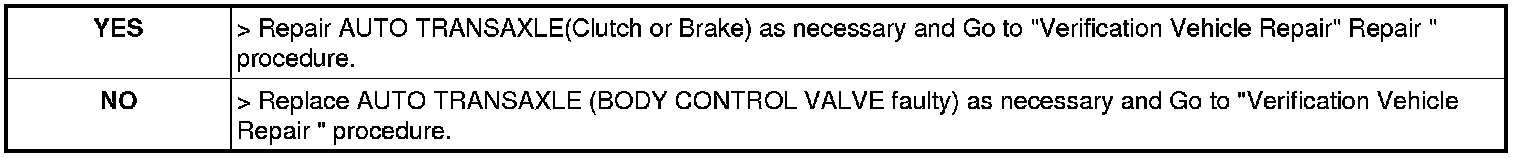

5. Is oil pressure value within specifications?
