Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".

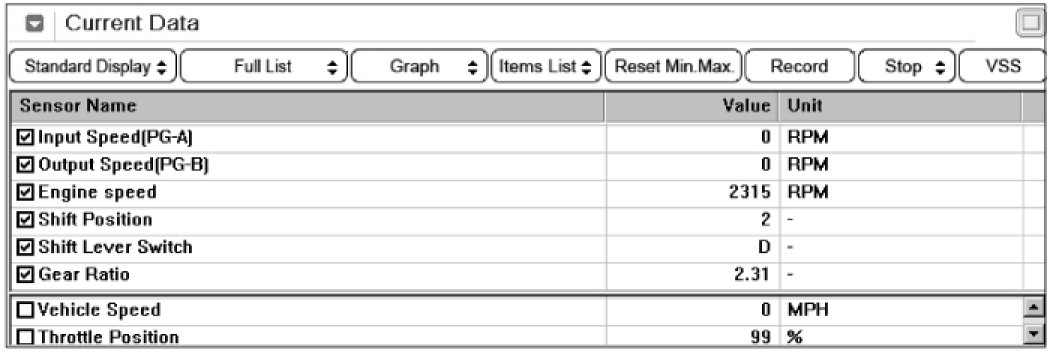

3. Monitor the "ENGINE SPEED, INPUT SPEED SENSOR, OUTPUT SPEED SENSOR, GEAR POSITION" parameter on the scantool
4. Perform the "STALL TEST" in gear position "2"

Specification : 2100-2800 engine rpm

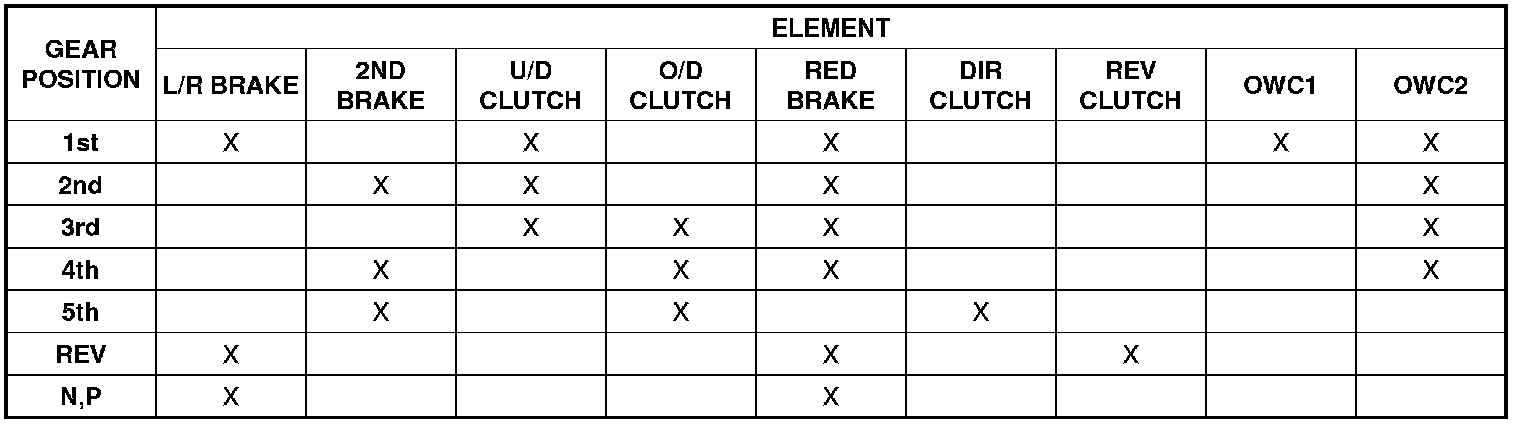

OPERATING ELEMENT OF EACH SHIFTING RANGE





** Low & Reverse Brake is released When the Vehicle speed over the 5 MPH (7 Km/h)

NOTE:
Stall test procedure in D2 and reason
Procedure
1. Warm up the engine
2. After positioning the select lever in "D" or "ON" of the HOLD SW (Operate UP SHIFT in case of "SPORTS MODE"),depress the foot brake pedal fully after that, depress the accelerator pedal to the maximum
* The slippage of 2nd gear operating parts can be detected by stall test in D2
Reason for stall test

5. Is "STALL TEST" within specifications?






CAUTION:
1. Do not let anybody stand in front of or behind the vehicle while this test is being carried out.
2. Check the A/T fluid level and temperature and the engine coolant temperature.
Fluid level : At the hot mark on the oil level gauge.
Fluid temperature : 176 °F-212 °F (80-100 °C).
Engine coolant temperature : 176 °F-212 °F (80-100 °C).
3. Chock both rear wheel (left and right).
4. Pull the parking brake lever on with the brake pedal fully depressed.
5. The throttle should not be left fully open for more than eight seconds.
6. If carrying out the stall test two or more time, move the select lever to the "N" position and run the engine at 1,000 rpm to let the A/T fluid cool down before carrying out subsequent.
